14 Ton China Wheel Excavator Manufactory

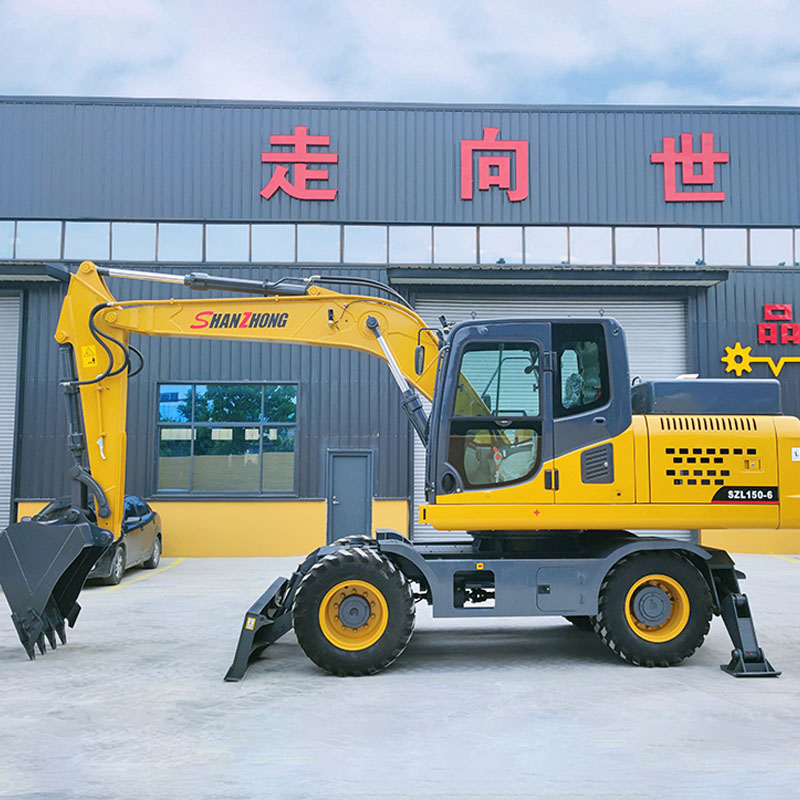

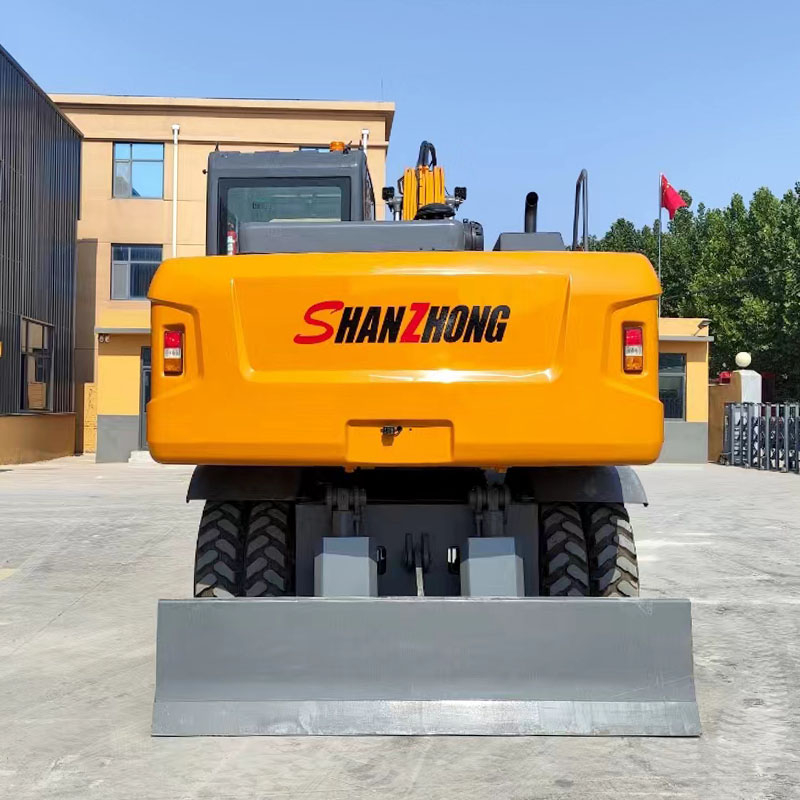

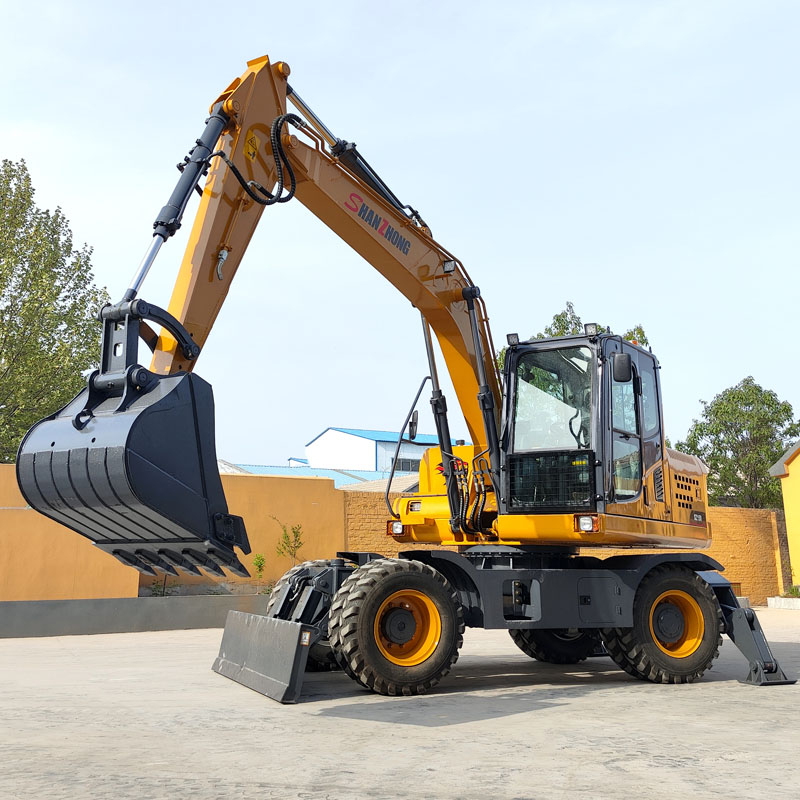

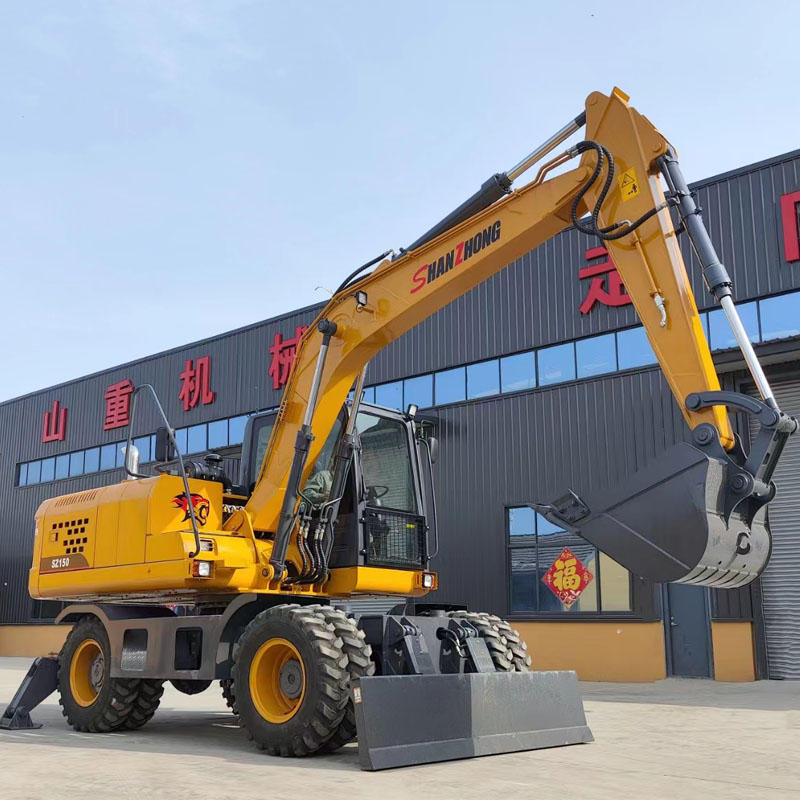

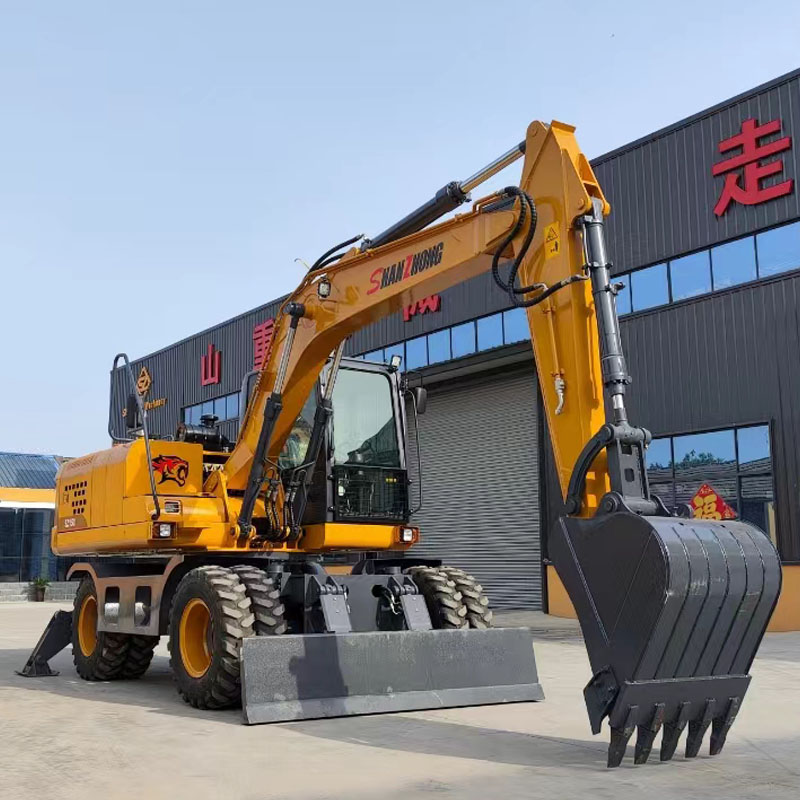

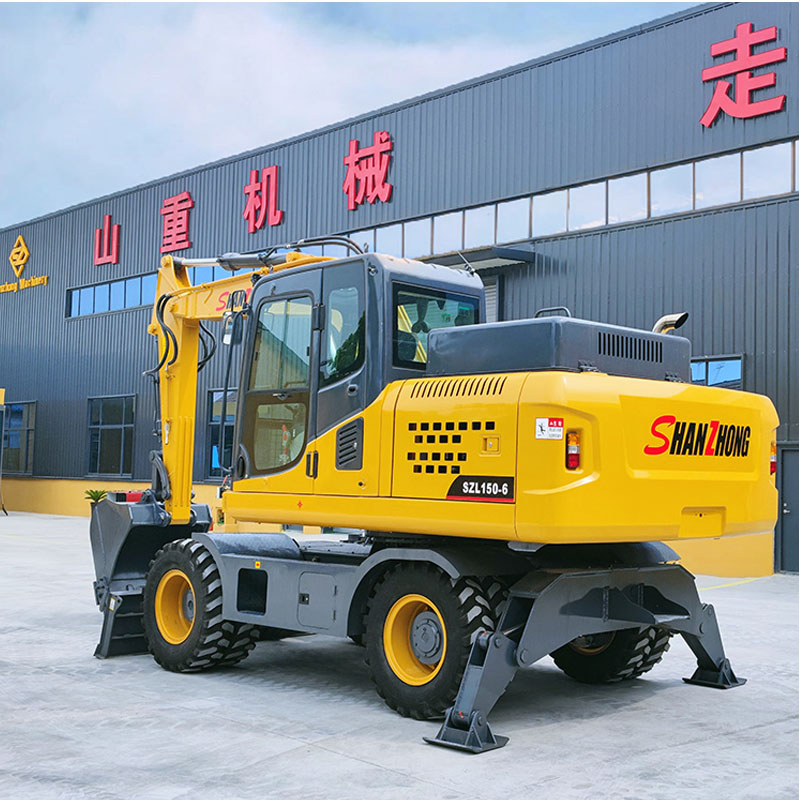

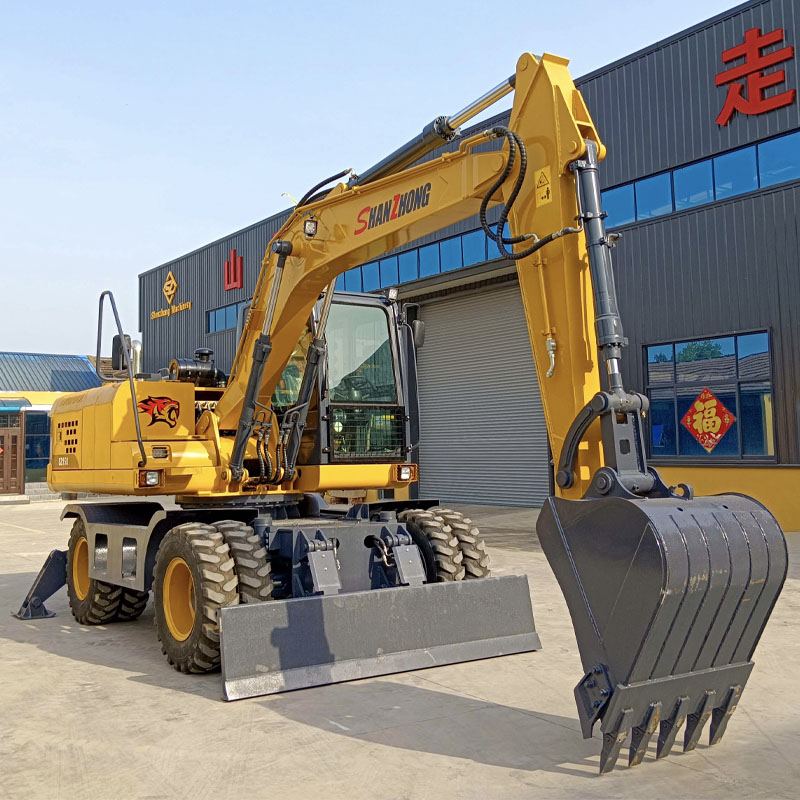

SZL150 Wheel Excavator Product Description
1.Load sensitive system, hydraulic oil brake, adapt to the entire road conditions.
2.Strengthen the front push tape balancing oil cylinder plus the hind -leg design, which is more stable.
3.The full -imported hydraulic system, full -time four -wheel drive, can reach 28km/h.
4.Hydraulic walkingless gear gear torque, flexible electronic shifting operation, and easily realizing edge walking work.

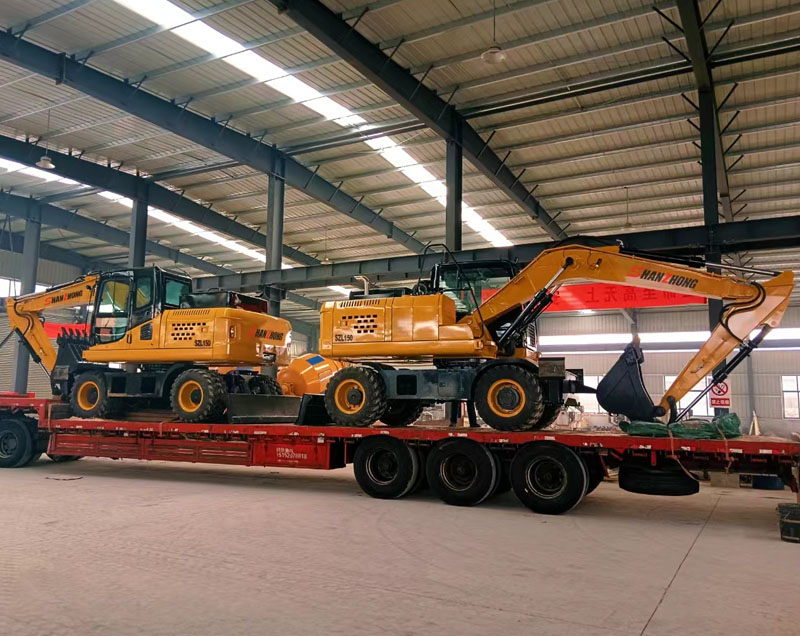

5. Can be installed with 40HQ container transportation, and the freight saves about 70%.
6.Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong remains the independent constructor and manufacturer of the SZL150 Wheel Excavator, a new generation of fully hydraulic wheeled excavators.
The powerful, versatile, and wonderful SZL150 wheeled hydraulic excavator is compatible with an extensive selection of working conditions. The machine's appearance size fits with transportation and traffic rules.
Each machine's hydraulic system is fitted with well-known hydraulic components and boasts attributes like "great dependability, authentic products, safety and preservation of the environment, comfort and convenience," among others. Simultaneously, it could provide an array of customized configuration and attachment choices that can be tailored to meet the requirements for various regions and customers.
There are several attachments available. Comfortable and roomy cab with amazing vision in every direction. Ergonomic seat upgrade for improve operator comfort.
Parameters | |||
Brand： | shanzhong | Model： | SZL150 |
Engine ： | Cummins 4 clinders 4BTAA3.9-C125 | Power： | 93kw/2200rpm |
Operation Weight： | 15000kg | Bucket Capacity： | 0.6m³ |
Size | |||
Shipping Length： | 7350mm | Arm Length： | 4500mm |
Shipping Height： | 3150mm | Boom Length： | 2500mm |
Total Width： | 2550mm | Height of Bulldozer Plate： | 560mm |
Turntable width： | 2430mm | Height of Bulldozer Plate： | 2600mm |
Wheelbase： | 2650mm | Lifting Height of Bulldozer Plate： | 420mm |
whell Tread： | 1970mm | Bulldozer support height： | 110mm |
Radius,Swing Center To Rear End： | 2400mm | Bulldozer support height： | 310mm |
Counterweight Ground Clearance： | 1070mm | Min Ground Clearance： | 250mm |
Hydraulic Tank Capacity： | 180L | Fuel Tank Capacity： | 220L |
Working Parameter | |||
Max.Digging Radius： | 8360mm | Max.Digging Height： | 8950mm |
Max.Digging Depth： | 5250mm | Max.Digging Height： | 6330mm |
Hydraulic System Pressure： | 31.5MPa | Hydraulic System Flow： | 2*126+53L/min |
Bucket Digging Force： | 115kn | Arm Digging Force： | 98kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-40km/h |
Gradeability： | ≥60% | ||
