14 Ton China Wheel Excavator Factory

SZL150 Wheel Excavator Product Description

1.Load sensitive system, hydraulic oil brake, adapt to the entire road conditions.

2.Strengthen the front push tape balancing oil cylinder plus the hind -leg design, which is more stable.

3.The full -imported hydraulic system, full -time four -wheel drive, can reach 28km/h.

4.Hydraulic walkingless gear gear torque, flexible electronic shifting operation, and easily realizing edge walking work.

5. Can be installed with 40HQ container transportation, and the freight saves about 70%.

6.Customized production can be provided to meet the needs of special construction and bidding.


Contact Now E-Mail Telephone WhatsApp
Product Details

Shanzhong has been the independent manufacturer of the SZL150 Wheel Excavator, the latest generation of completely hydraulic wheeled excavators.

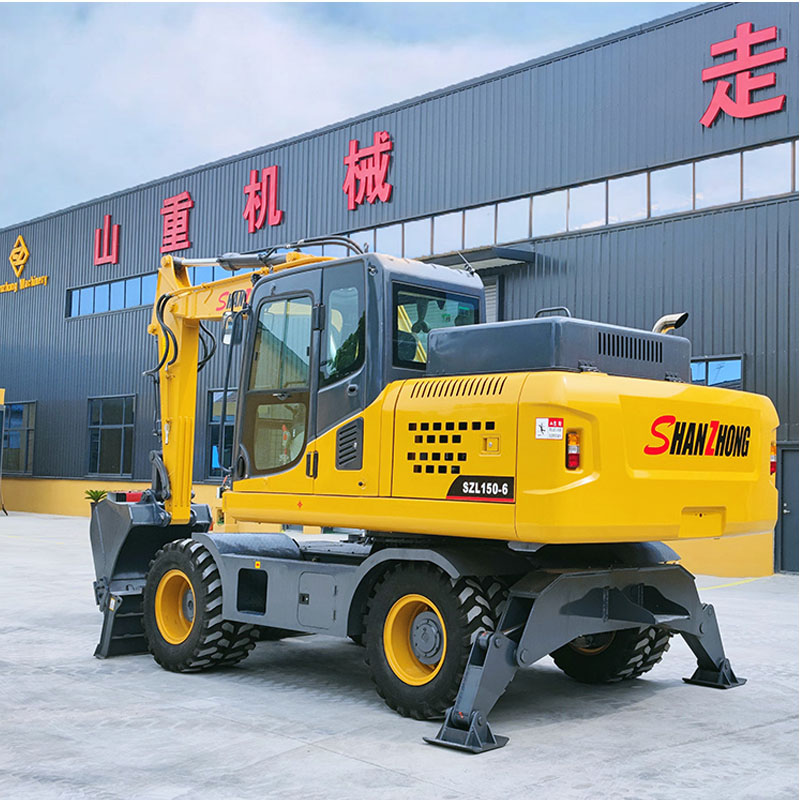

SZL150 Wheel Excavator

SZL150 offers rich value returns for shoppers and is crucial in the operations of oil field, airport, port, urban building, irrigation, conserving water, and quick repair.
The powerful, versatile and appealing SZL150 wheeled hydraulic excavator is capable of managing a wide range of working situations. The machine's appearance size conforms with transportation and highway regulations.

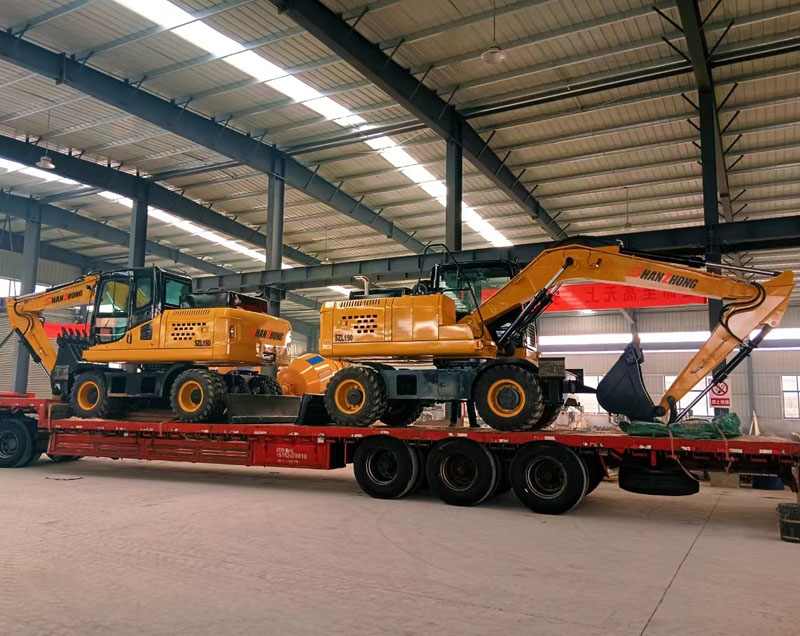

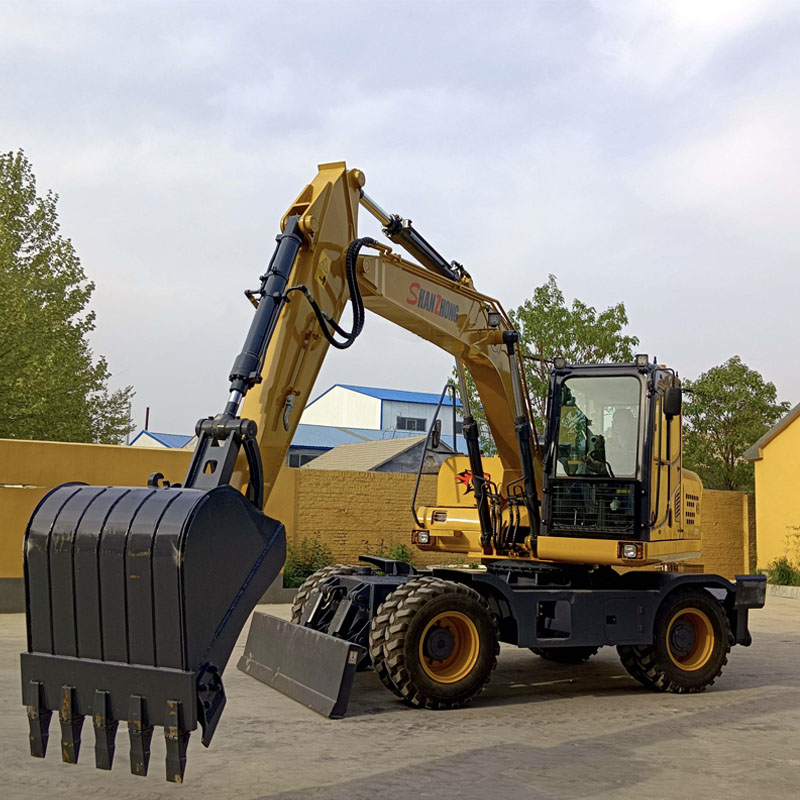

SZL150 Wheel excavator


Parameters

Brand:

shanzhong

Model:

SZL150

Engine :

Cummins 4 clinders

4BTAA3.9-C125

Power:

93kw/2200rpm

Operation Weight:

15000kg

Bucket Capacity:

0.6m³

Size

Shipping Length:

7350mm

Arm Length:

4500mm

Shipping Height:

3150mm

Boom Length:

2500mm

Total Width:

2550mm

Height of Bulldozer Plate:

560mm

Turntable width:

2430mm

Height of Bulldozer Plate:

2600mm

Wheelbase:

2650mm

Lifting Height of Bulldozer Plate:

420mm

whell Tread:

1970mm

Bulldozer support height:

110mm

Radius,Swing Center To Rear End:

2400mm

Bulldozer support height:

310mm

Counterweight Ground Clearance:

1070mm

Min Ground Clearance:

250mm

Hydraulic Tank Capacity:

180L

Fuel Tank Capacity:

220L

Working Parameter

Max.Digging Radius:

8360mm

Max.Digging Height:

8950mm

Max.Digging Depth:

5250mm

Max.Digging Height:

6330mm

Hydraulic System Pressure:

31.5MPa

Hydraulic System Flow:

2*126+53L/min

Bucket Digging Force:

115kn

Arm Digging Force:

98kn

Rotation Speed:

13-14/min

Travel Speed:

28-40km/h

Gradeability:

≥60%
