14 Ton Series Wheel Excavator

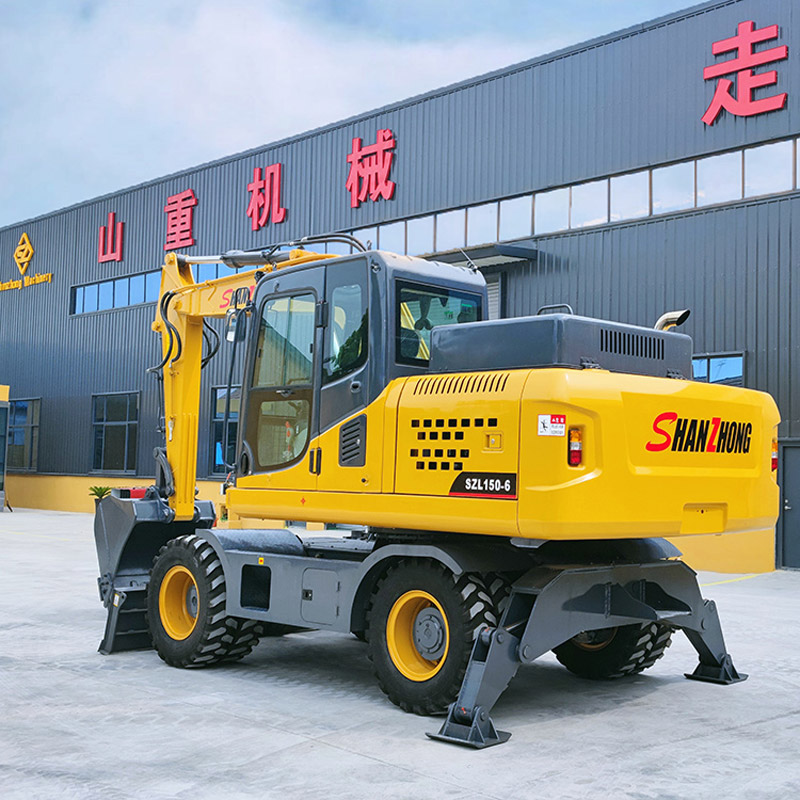

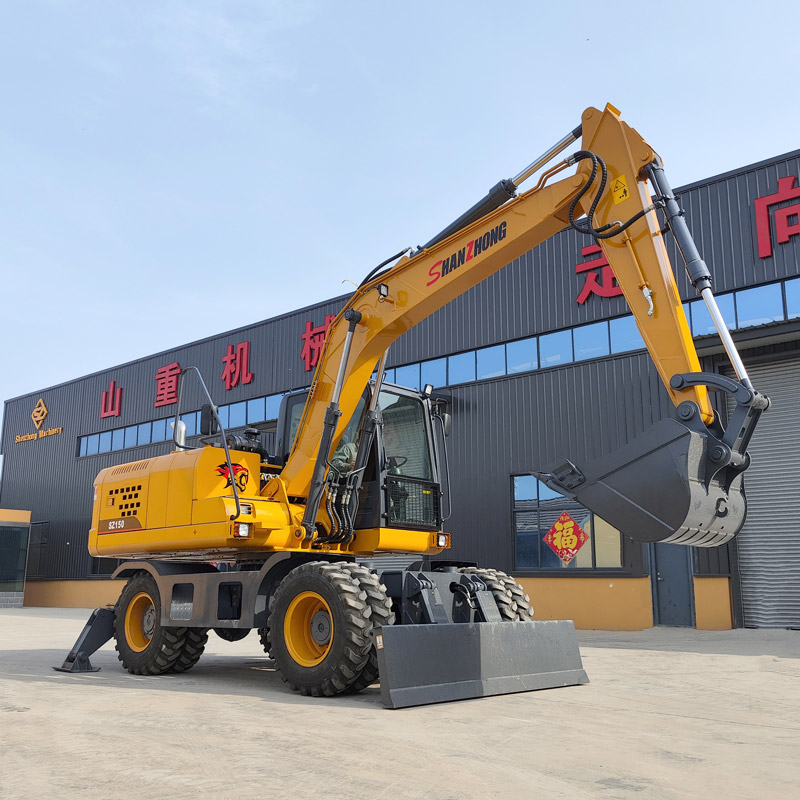

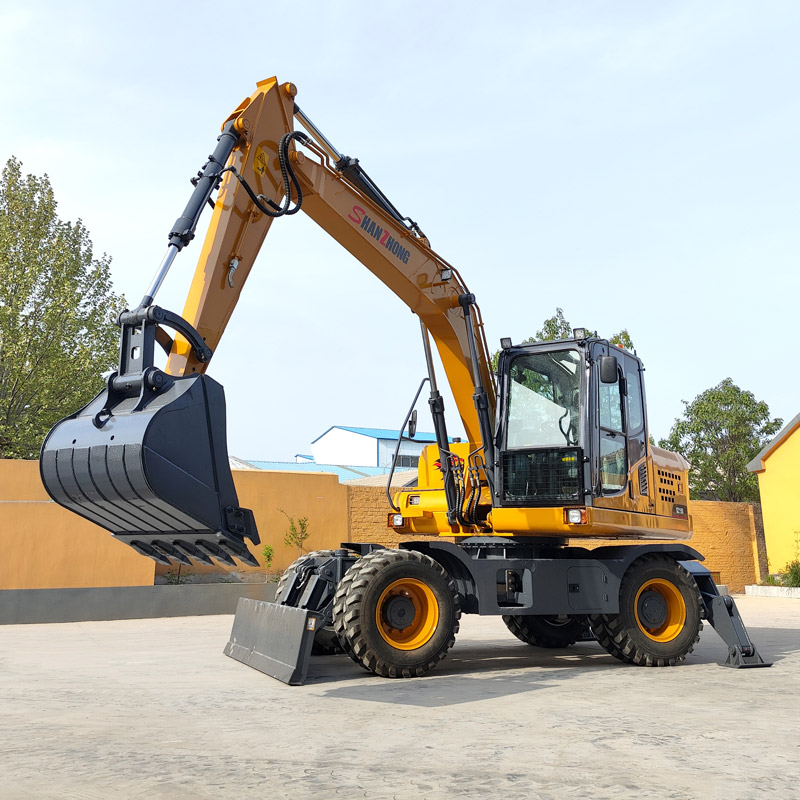

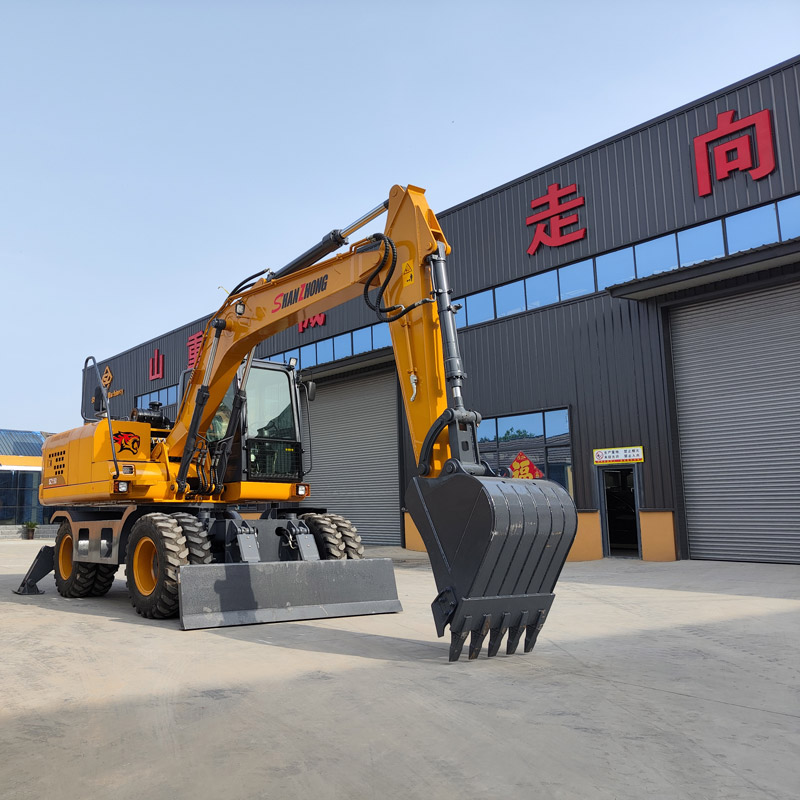

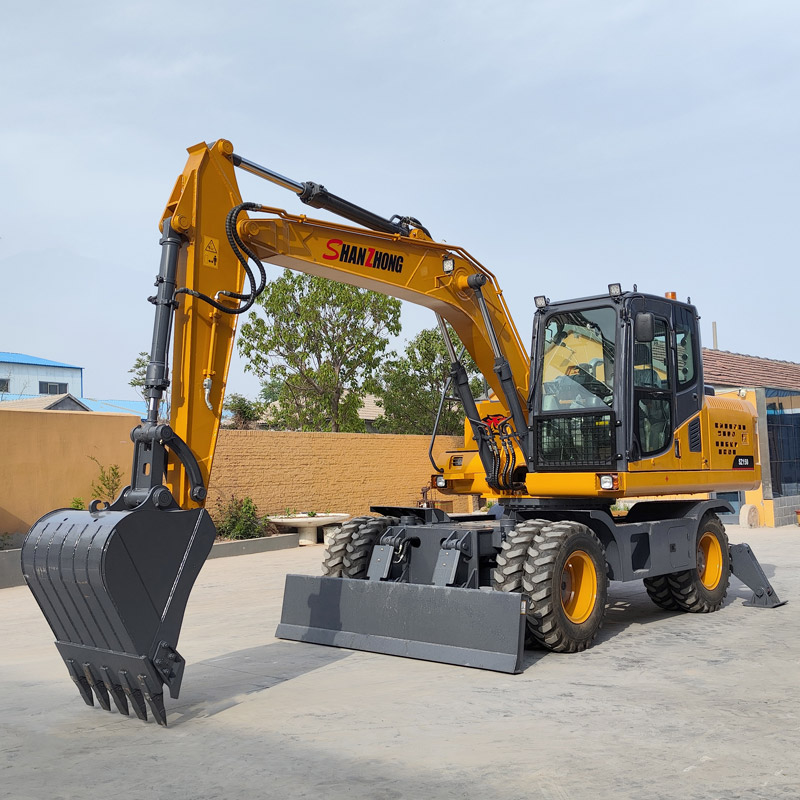

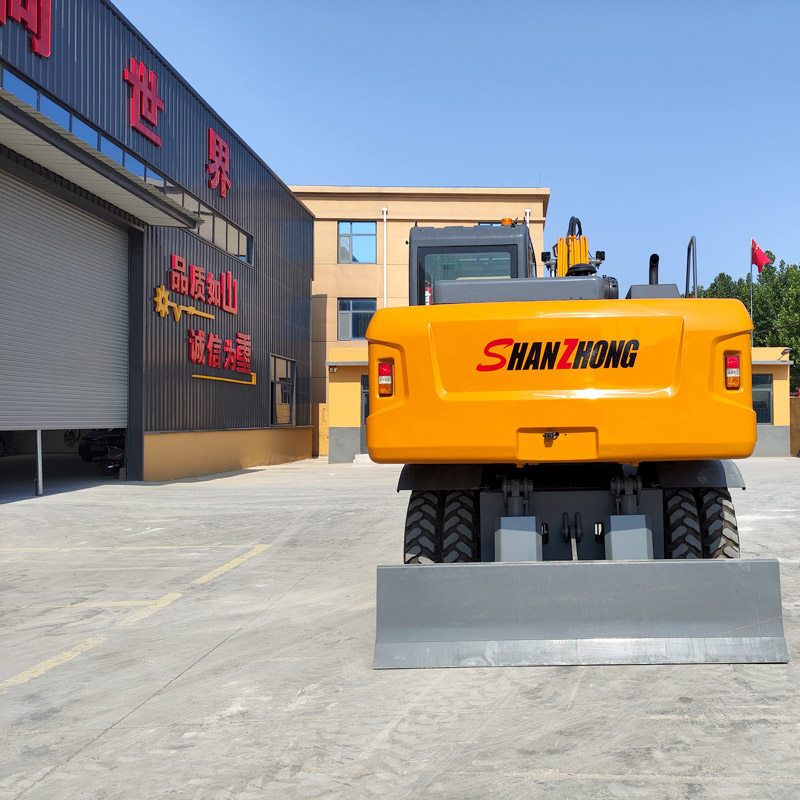

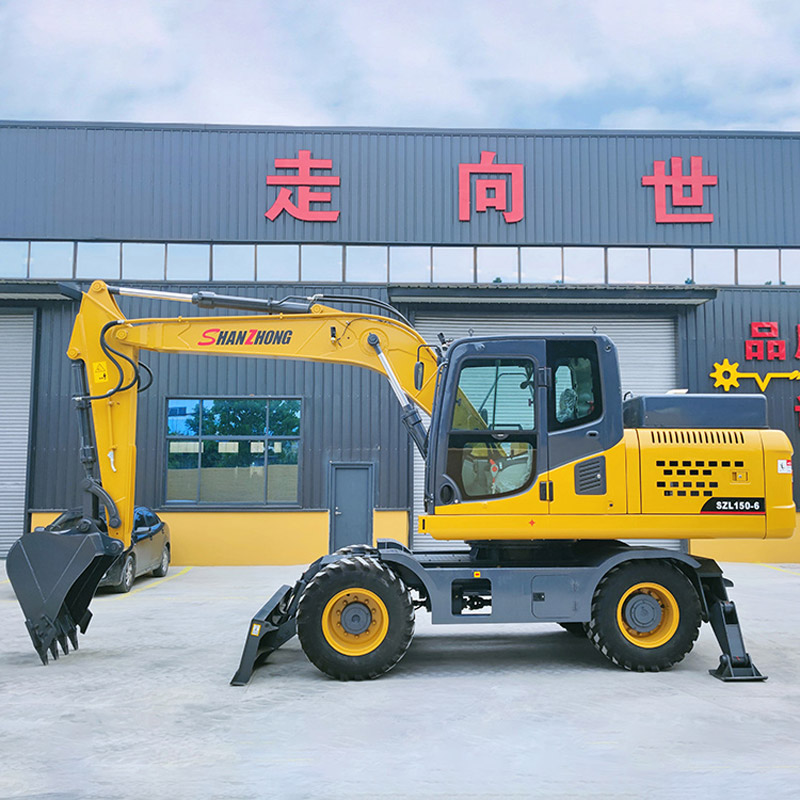

SZL150 Wheel Excavator Product Description
1.Load sensitive system, hydraulic oil brake, adapt to the entire road conditions.
2.Strengthen the front push tape balancing oil cylinder plus the hind -leg design, which is more stable.
3.The full -imported hydraulic system, full -time four -wheel drive, can reach 28km/h.
4.Hydraulic walkingless gear gear torque, flexible electronic shifting operation, and easily realizing edge walking work.

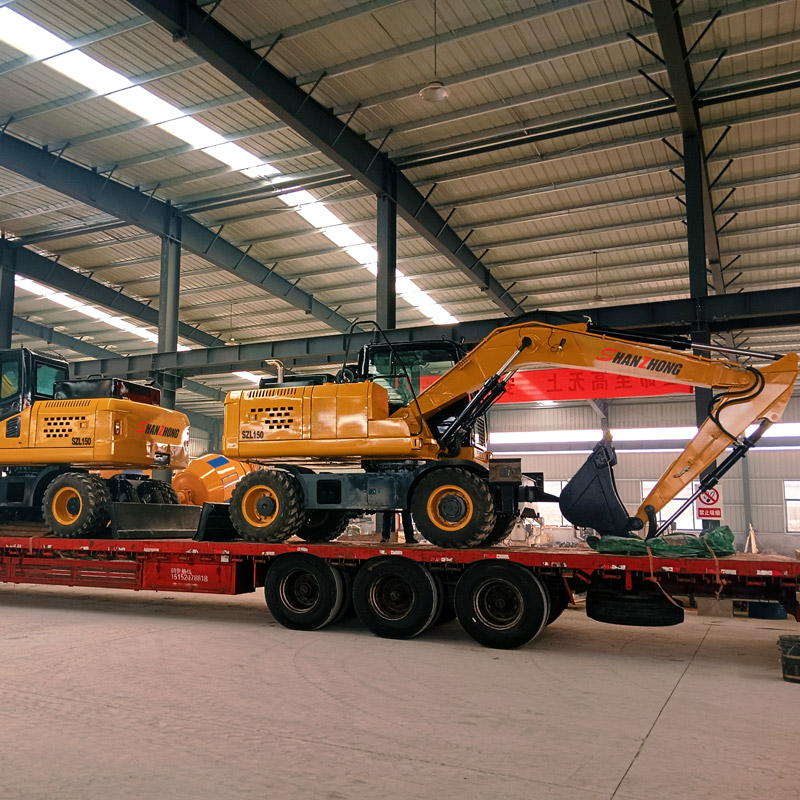

5. Can be installed with 40HQ container transportation, and the freight saves about 70%.
6.Customized production can be provided to meet the needs of special construction and bidding.
SZL150 Wheel excavator is a new generation of fully hydraulic wheeled excavator independently developed by Shanzhong.
SZL150 plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
SZL150 wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements.
The hydraulic system of the whole machine is matched with famous hydraulic components, and has the characteristics of "high reliability, genuine goods, safety and environmental protection, comfort and convenience", etc. At the same time, it can provide a variety of special configuration and attachments options, which can be adapted to different countries and customer's demand.
Various attachments available. Spacious and comfortable cab, providing excellent all-round vision. New ergonomic seat to improve operator comfort.
Parameters | |||
Brand： | shanzhong | Model： | SZL150 |
Engine ： | Cummins 4 clinders 4BTAA3.9-C125 | Power： | 93kw/2200rpm |
Operation Weight： | 15000kg | Bucket Capacity： | 0.6m³ |
Size | |||
Shipping Length： | 7350mm | Arm Length： | 4500mm |
Shipping Height： | 3150mm | Boom Length： | 2500mm |
Total Width： | 2550mm | Height of Bulldozer Plate： | 560mm |
Turntable width： | 2430mm | Height of Bulldozer Plate： | 2600mm |
Wheelbase： | 2650mm | Lifting Height of Bulldozer Plate： | 420mm |
whell Tread： | 1970mm | Bulldozer support height： | 110mm |
Radius,Swing Center To Rear End： | 2400mm | Bulldozer support height： | 310mm |
Counterweight Ground Clearance： | 1070mm | Min Ground Clearance： | 250mm |
Hydraulic Tank Capacity： | 180L | Fuel Tank Capacity： | 220L |
Working Parameter | |||
Max.Digging Radius： | 8360mm | Max.Digging Height： | 8950mm |
Max.Digging Depth： | 5250mm | Max.Digging Height： | 6330mm |
Hydraulic System Pressure： | 31.5MPa | Hydraulic System Flow： | 2*126+53L/min |
Bucket Digging Force： | 115kn | Arm Digging Force： | 98kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-40km/h |
Gradeability： | ≥60% | ||
