14Tons Wheeled Excavators

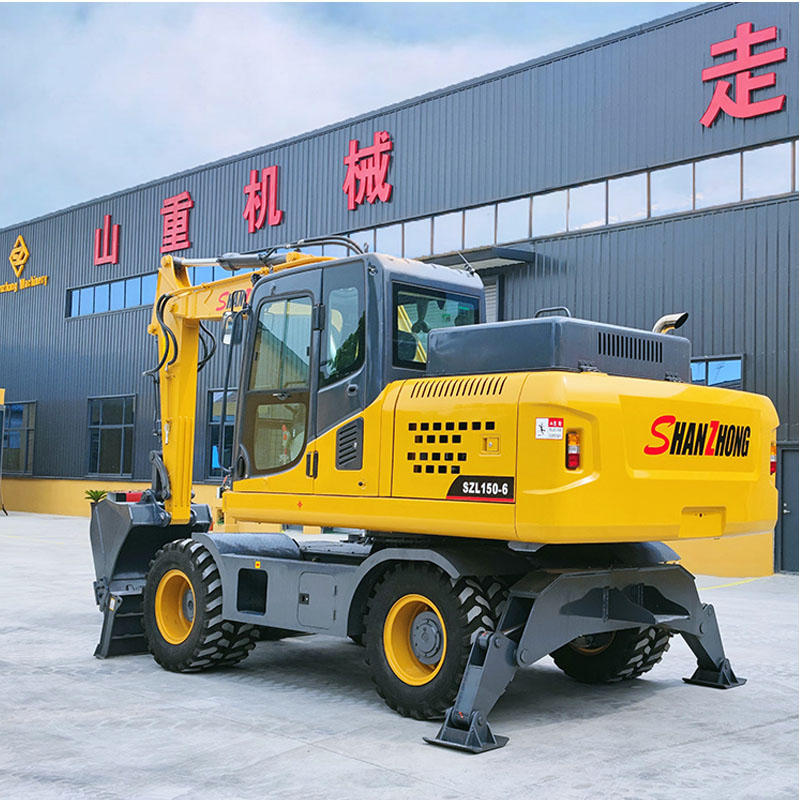

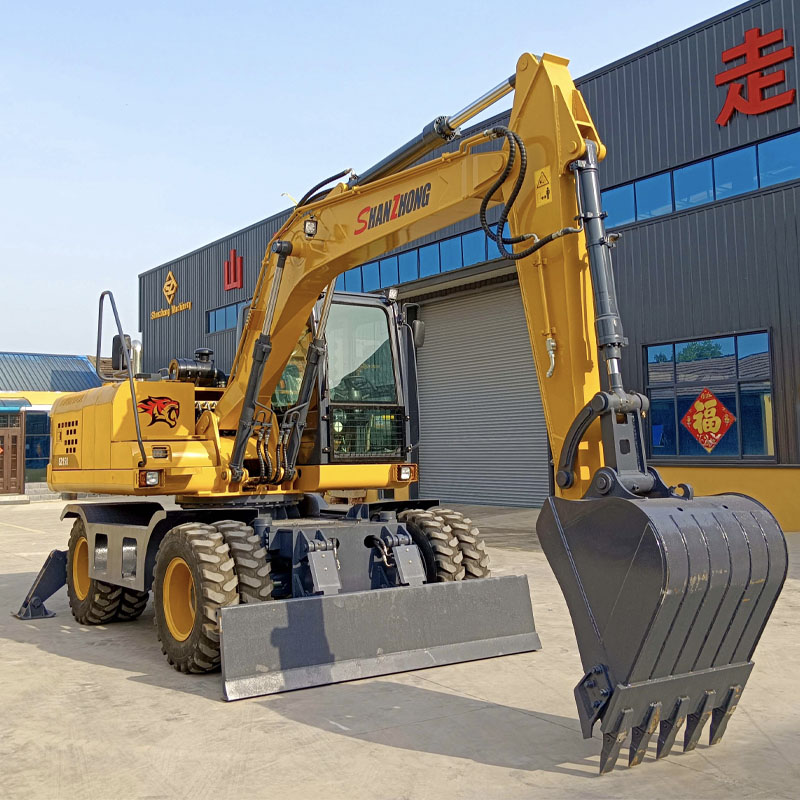

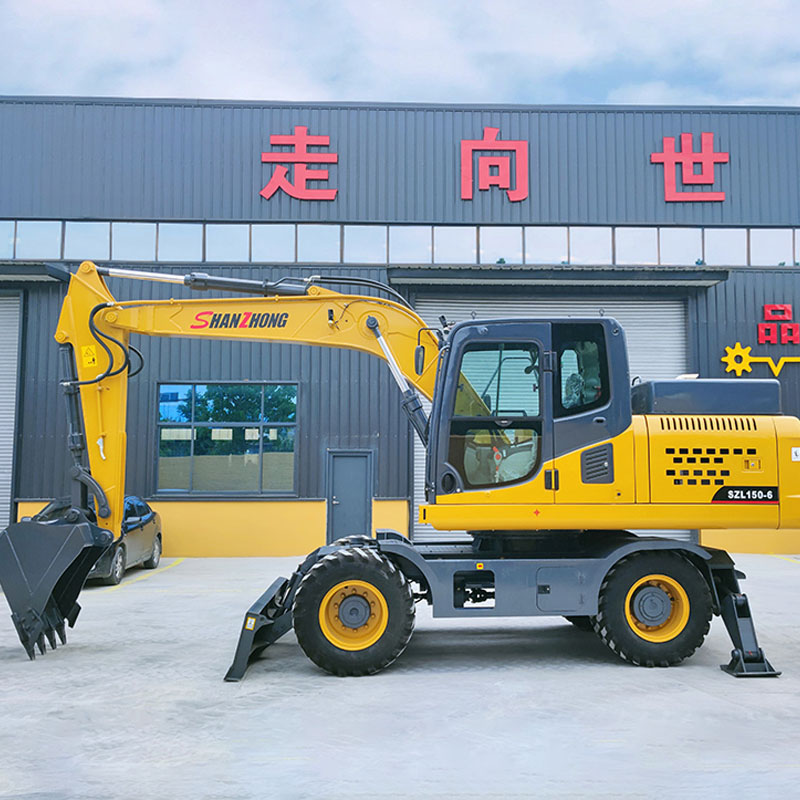

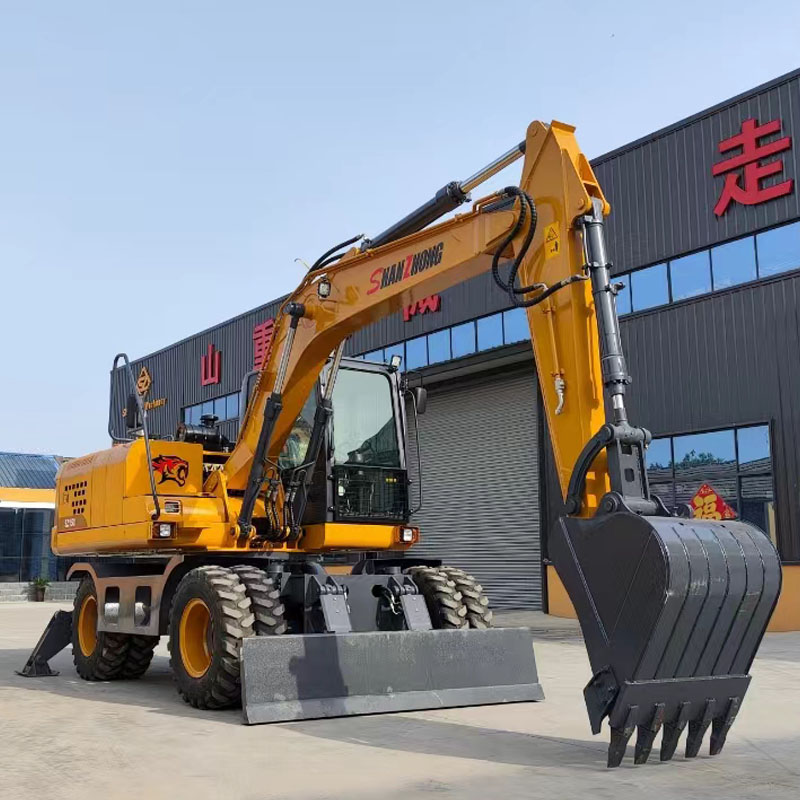

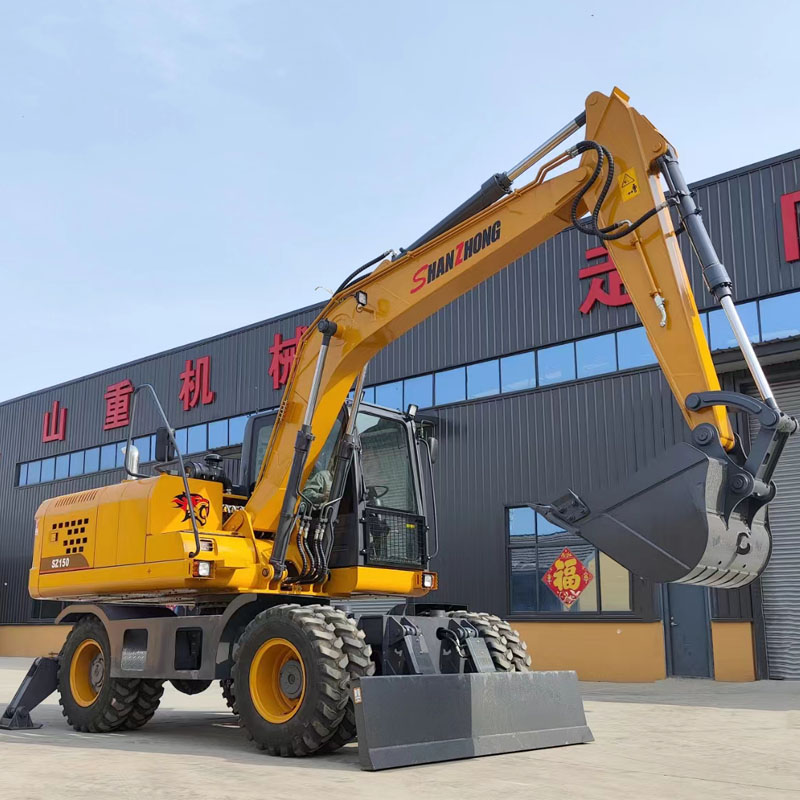

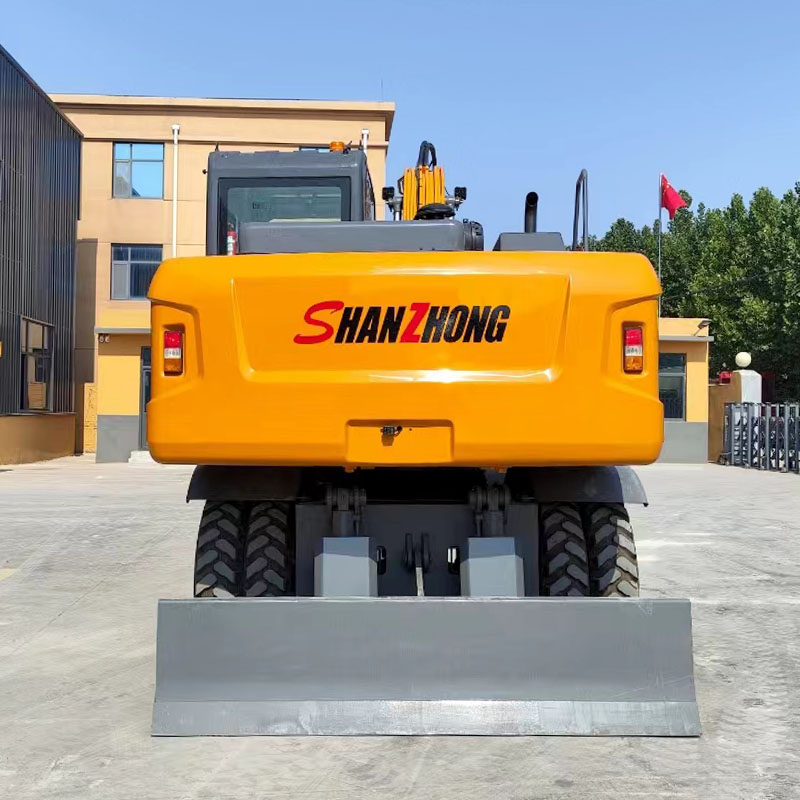

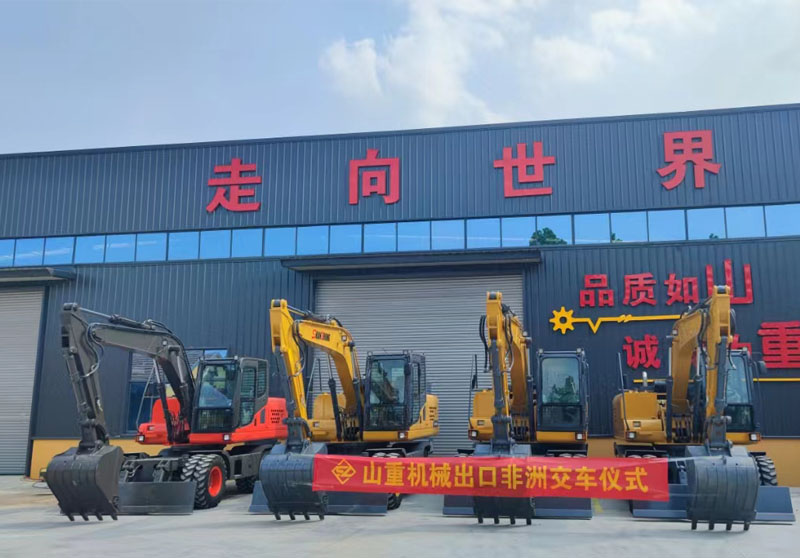

SZL150 Wheel Excavator Product Description
1.Load sensitive system, hydraulic oil brake, adapt to the entire road conditions.
2.Strengthen the front push tape balancing oil cylinder plus the hind -leg design, which is more stable.
3.The full -imported hydraulic system, full -time four -wheel drive, can reach 28km/h.
4.Hydraulic walkingless gear gear torque, flexible electronic shifting operation, and easily realizing edge walking work.

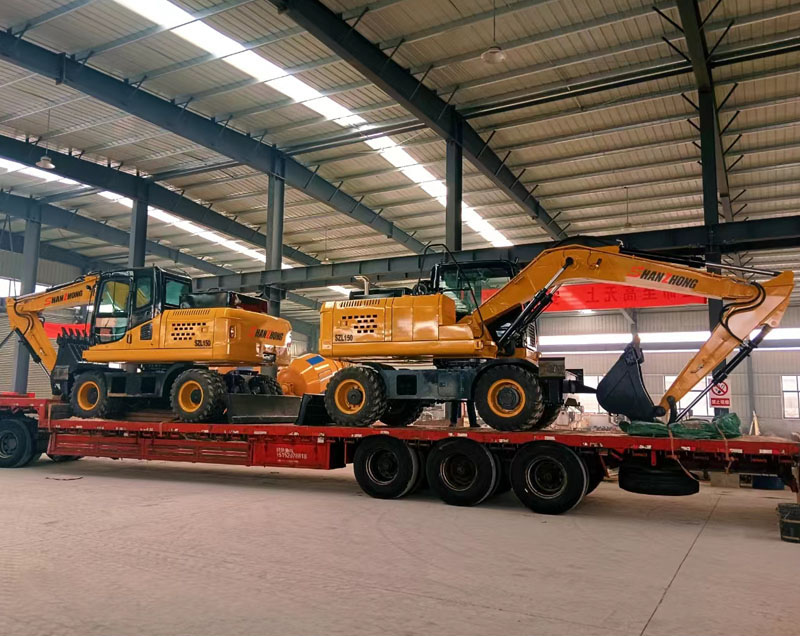

5. Can be installed with 40HQ container transportation, and the freight saves about 70%.
6.Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong is the independent designer that produces the SZL150 Wheel Excavator, the latest installment of fully hydraulic wheeled excavators.
Every component of the machine's hydraulic system is fitted with well-known hydraulic parts and has attributes like "great stability, authentic things, safety and protecting the environment, comfort and convenience," among others. Meanwhile, it could present an array of customizable configuration and attachment alternatives that will be tailored to meet the requirements for different countries and customers.
Parameters | |||
Brand： | shanzhong | Model： | SZL150 |
Engine ： | Cummins 4 clinders 4BTAA3.9-C125 | Power： | 93kw/2200rpm |
Operation Weight： | 15000kg | Bucket Capacity： | 0.6m³ |
Size | |||
Shipping Length： | 7350mm | Arm Length： | 4500mm |
Shipping Height： | 3150mm | Boom Length： | 2500mm |
Total Width： | 2550mm | Height of Bulldozer Plate： | 560mm |
Turntable width： | 2430mm | Height of Bulldozer Plate： | 2600mm |
Wheelbase： | 2650mm | Lifting Height of Bulldozer Plate： | 420mm |
whell Tread： | 1970mm | Bulldozer support height： | 110mm |
Radius,Swing Center To Rear End： | 2400mm | Bulldozer support height： | 310mm |
Counterweight Ground Clearance： | 1070mm | Min Ground Clearance： | 250mm |
Hydraulic Tank Capacity： | 180L | Fuel Tank Capacity： | 220L |
Working Parameter | |||
Max.Digging Radius： | 8360mm | Max.Digging Height： | 8950mm |
Max.Digging Depth： | 5250mm | Max.Digging Height： | 6330mm |
Hydraulic System Pressure： | 31.5MPa | Hydraulic System Flow： | 2*126+53L/min |
Bucket Digging Force： | 115kn | Arm Digging Force： | 98kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-40km/h |
Gradeability： | ≥60% | ||
