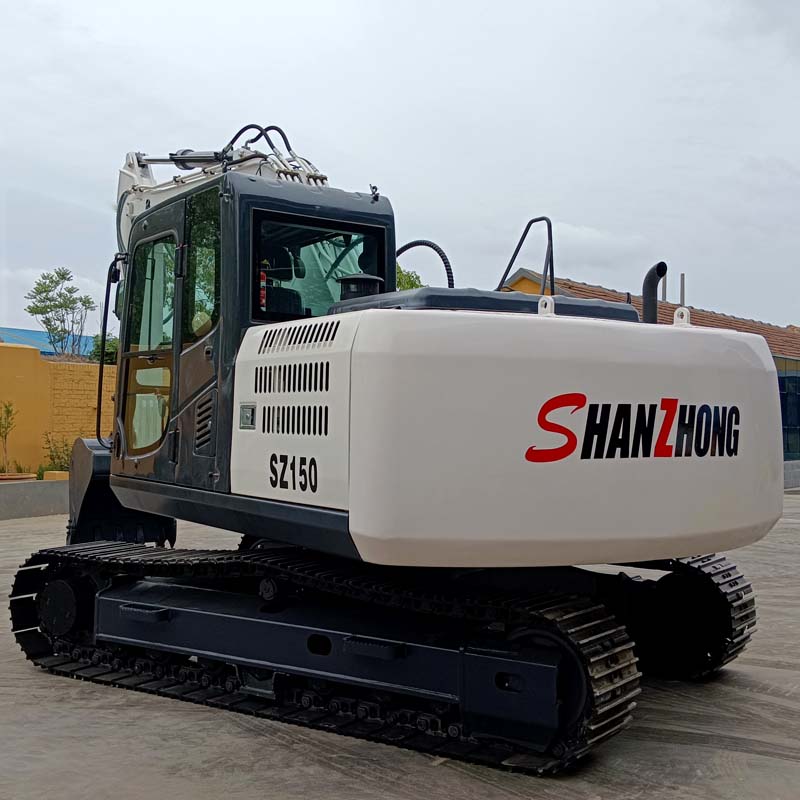

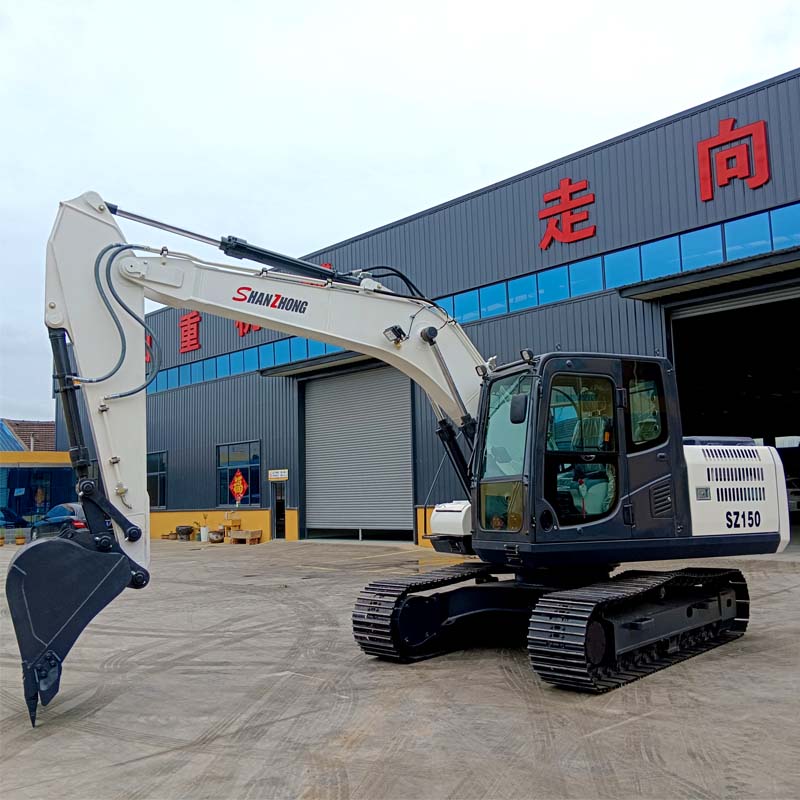

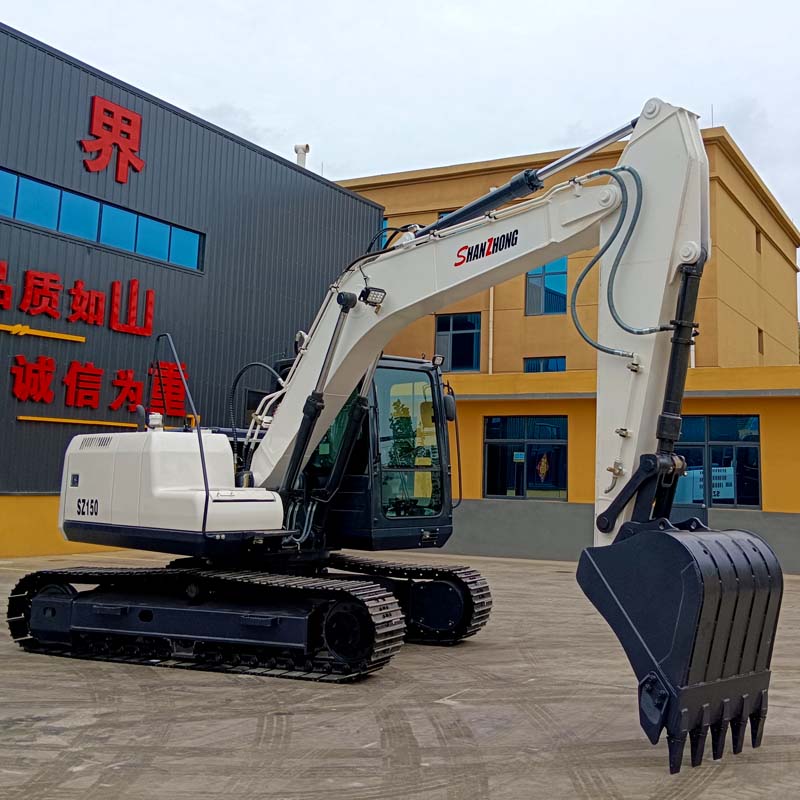

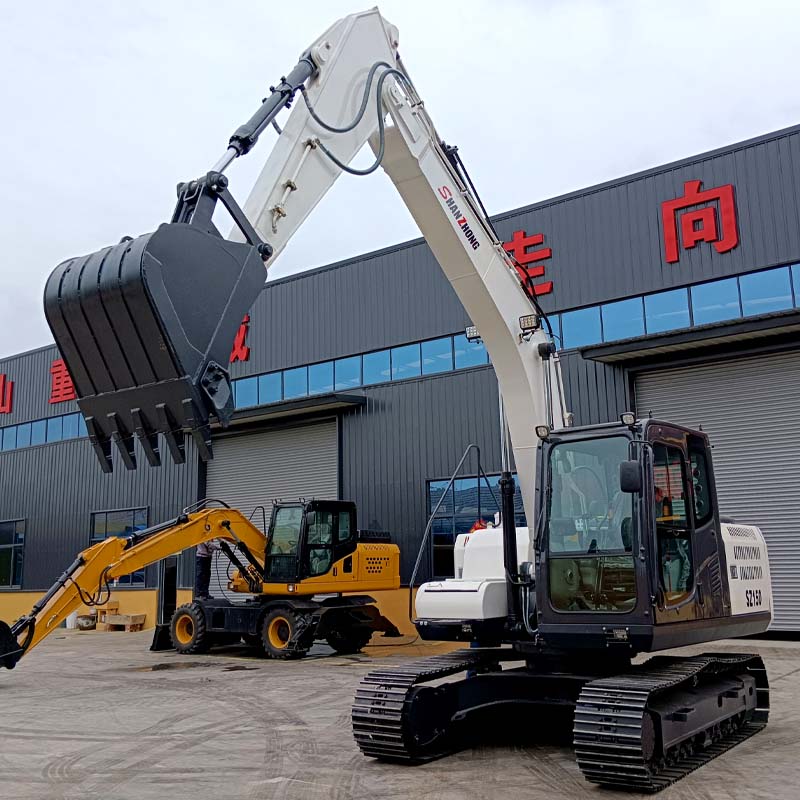

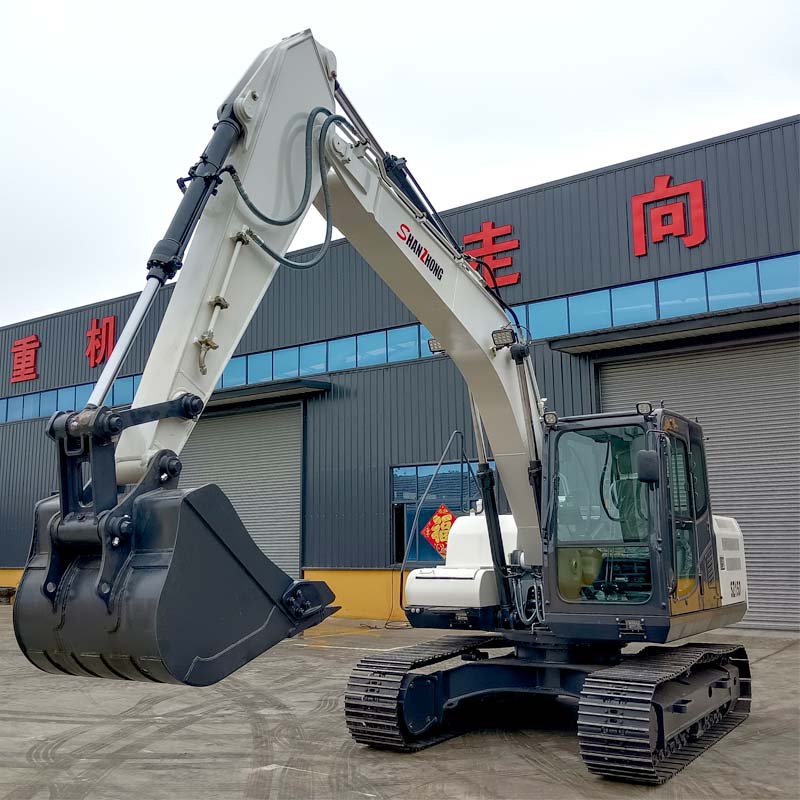

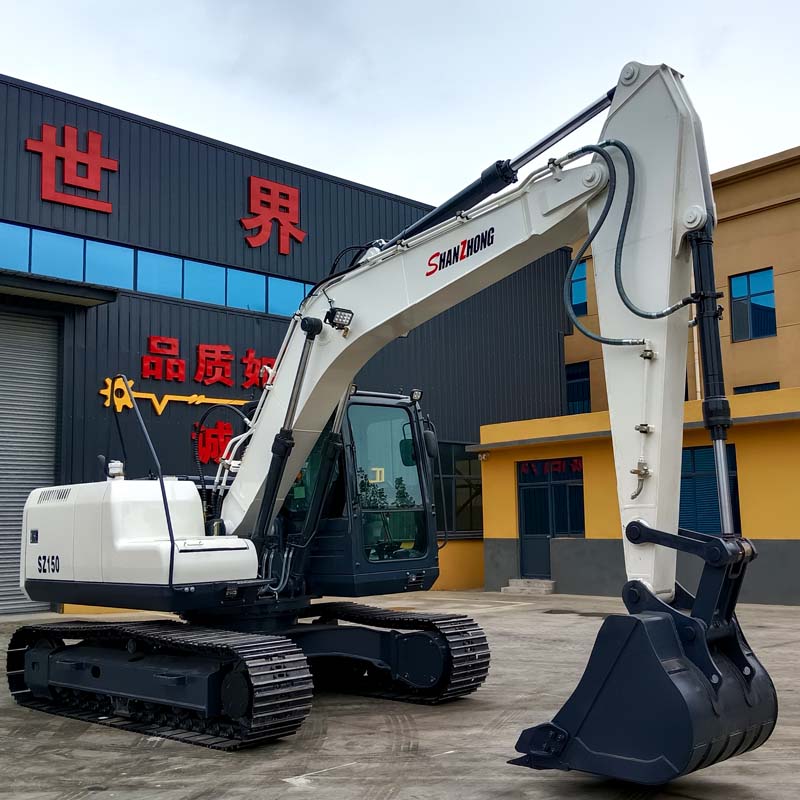

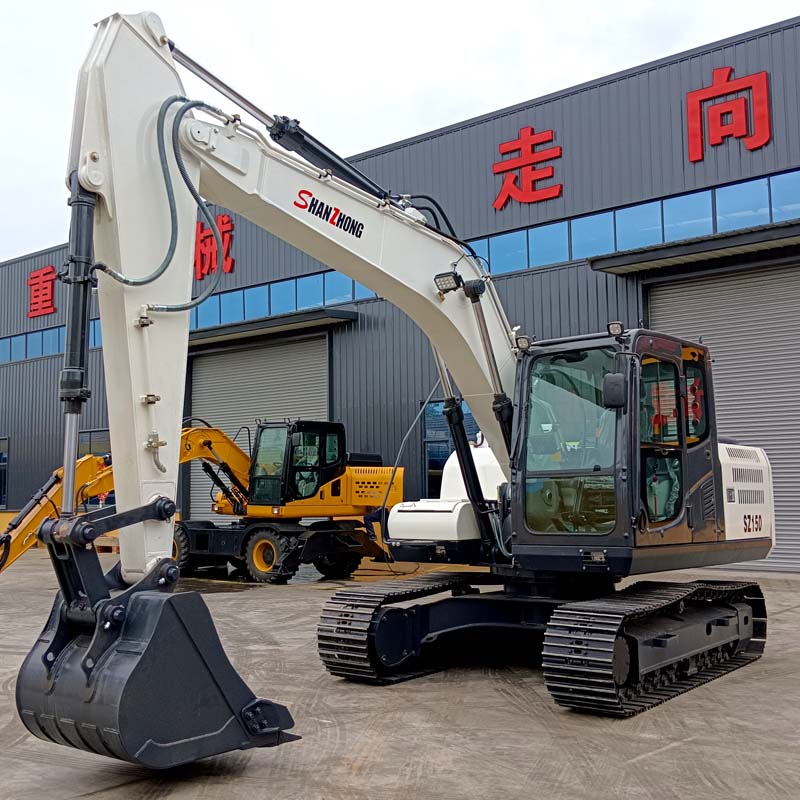

15 Ton Hydraulic Crawler Excavator
SZ150 Crawler Excavator
1) Robot welding to ensure the processing accuracy and quality reliability of the structural parts.
2) The load sensitive system and the Cononis engine combination, which is more energy -saving and efficient.
3) Imported hydraulic hydraulic system. Fast speed and stable brakes.
4) Adopt a stable box -type welding structure, strengthen the large arm, and greatly improve the service life.
5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.
6) Customized production can be provided to meet the needs of special construction
Shanzhong is the independent developer of the SZ150 crawler excavator, a new generation of fully hydraulic crawler excavators. In order to guarantee the machine's overall durability and power reserve, it uses an engine with unprecedented torque and low fuel consumption; the precise matching of the axle box and the high-efficiency hydraulic system ensures the work.
Reputable hydraulic components are used throughout the machine's hydraulic system, which is equipped with features like "great reliability, authentic products, safety and environmental preservation, comfort and convenience," among many others. It might also provide a variety of attachment options and configurable setups that can be adjusted to suit the needs of different clients and regions.
Additionally, there are multiple attachments accessible. Large and roomy vehicle with outstanding view in all directions. Adjusting the seat ergonomically will improve operator comfort.
parameter | |||
Brand： | shanzhong | Model： | SZ150 |
Engine Model： | 4BTAA3.9-C125 | Engine Power： | 93kw/2200rpm |
Weight： | 14200kg | Bucket Capacity： | 0.6m³ |
Dimensions | |||
Shipping Length： | 7800mm | Boom Length： | 4600mm |
Shipping Height： | 2900mm | Arm Length： | 3131mm |
Overall Width： | 2500mm | Crawler Length： | 3750mm |
Turntable Width： | 2520mm | Gauge： | 1960mm |
Crawler Width： | 500mm | Landing Gear Height： | 2560mm |
Radius, Swing Center to Rear End： | 2400mm | Min Width of Gyration： | 2200mm |
Counterweight Ground Clearance： | 920mm | Min Ground Clearance： | 420mm |
Hydraulic Tank Volume： | 190L | Fuel Tank Volume： | 230L |
WORKING RANGE | |||
Max. Digging Radius： | 8160mm | Max. Digging Height： | 8600mm |
Max. Digging Depth： | 5300mm | Max. Dumping Height： | 6130mm |
Hydraulic System Pressure： | 32.34/34.3MPa | Hydraulic System Flow： | 2*130+15L/min |
Bucket Digging Force： | 85kn | Arm Digging Force： | 53kn |
Rotation Speed： | 0-13.5r/min | Travel Speed： | 4.5-2.3km/h |
Gradeability： | ≥70% | ||
