15 Ton China Wheel Excavator Factory

SZL160 Wheel Excavator Product Description

1.Continuously variable automatic transmission, four-wheel drive, four-wheel hydraulic oil brake, adapt to all road conditions.

2.Reinforced front push shovel with balance oil cylinder and rear outrigger design, higher stability,

3.Original imported rotary motor. The rotary speed is fast and the rotary brake is stable.

4. The original fully imported hydraulic system adopts double-pump confluence technology, and the transition speed is fast.

5.Wheel deceleration wet front and rear axles, four-layer winding oil pipes, and Doosan's standard buffer oil cylinders.

6.Customized production can be provided to meet special construction and bidding requirements.


Contact Now E-Mail Telephone WhatsApp
Product Details

Shanzhong belongs to the independent developer of the SZL160 Wheel Excavator, a fresh crop of fully hydraulic wheeled excavators.

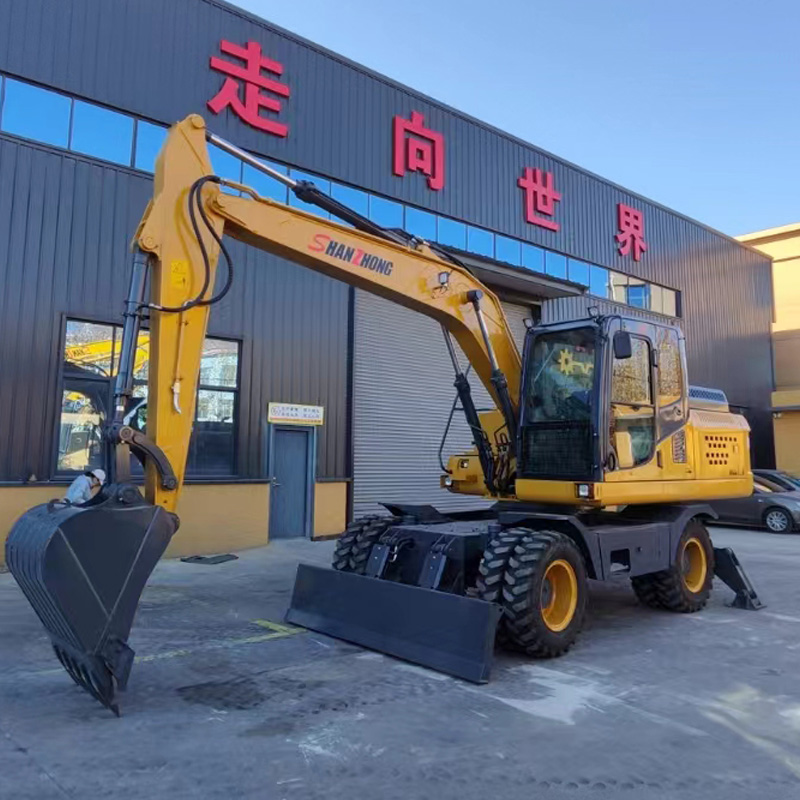

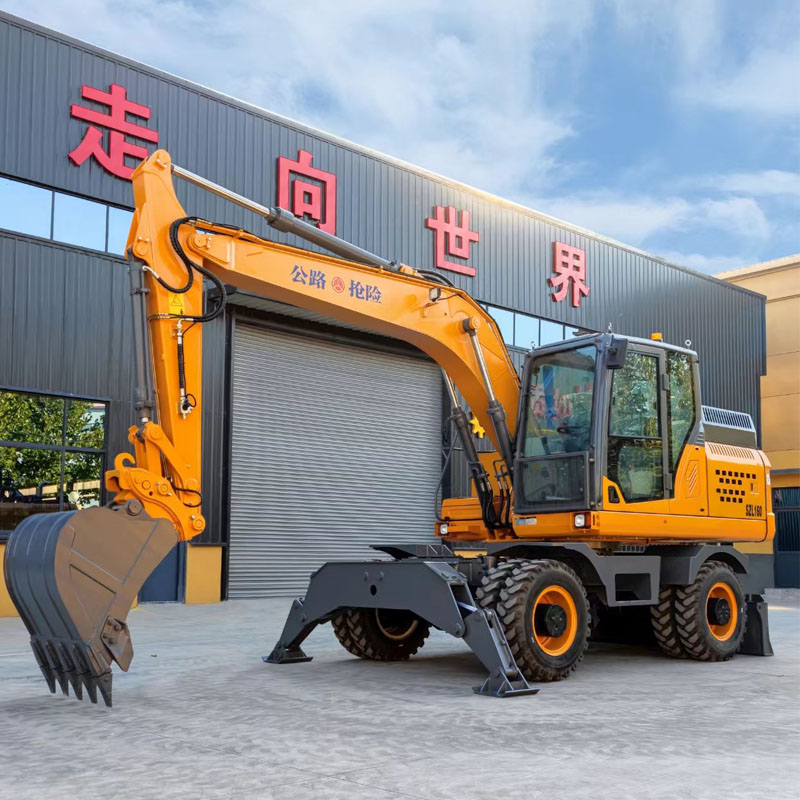

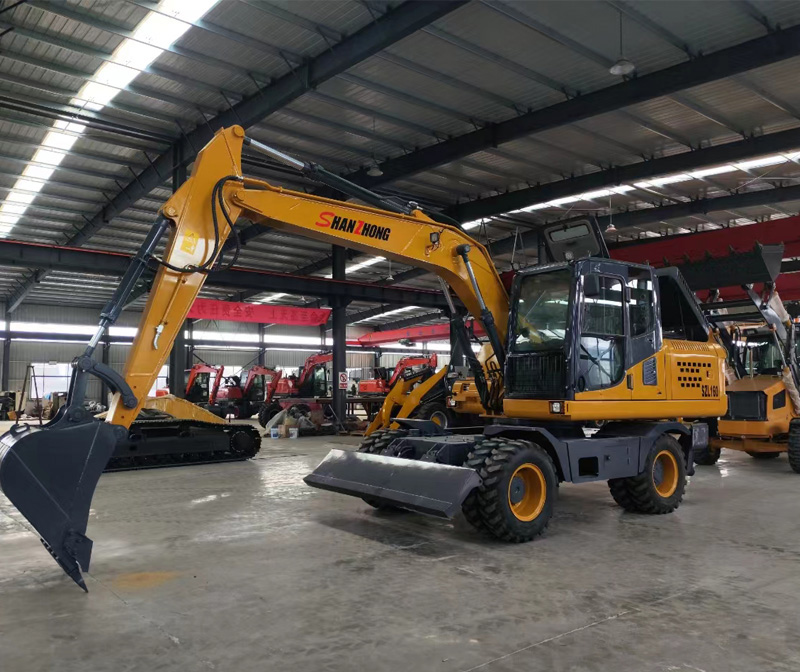

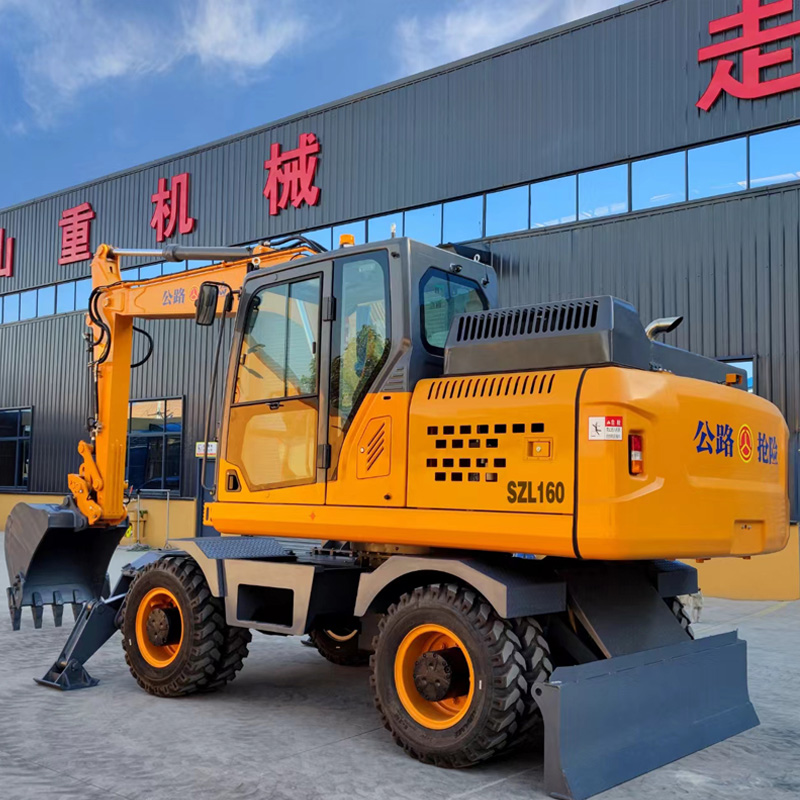

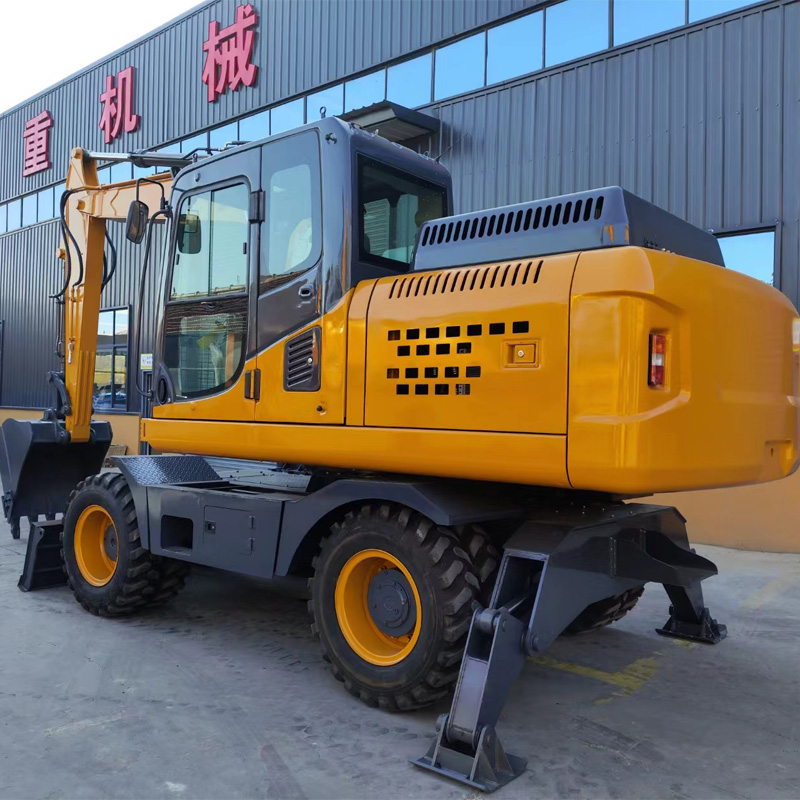

SZL160 Wheel excavator

The complete machine's hydraulic system is fitted with widely recognized hydraulic systems and boasts attributes like "great dependability, authentic products, safety and safeguarding the environment, comfort and convenience," among others. Simultaneously, it may offer an array of custom configuration and attachment choices that can be tailored to accommodate the wants of various regions and customers.
There are various attachments available. Comfortable and roomy cab with outstanding vision in every direction. Ergonomic seat upgrade for enhanced operator comfort.

Parameters

Brand:

shanzhong

Model:

SZL160

Engine :

Cummins 4 clinders

4BTAA3.9-C125

Power:

93kw/2200rpm

Weight:

15500kg

Bucket Capacity:

0.7m³

Size

Shipping Length:

7770mm

Arm Length:

4600mm

Shipping Height:

3255mm

Boom Length:

3135mm

Total Width:

2650mm

Height of Bulldozer Plate:

560mm

Turntable width:

2500mm

Height of Bulldozer Plate:

2600mm

Wheelbase:

2670mm

Lifting Height of Bulldozer Plate:

420mm

whell Tread:

2000mm

Bulldozer support height:

110mm

Radius,Swing Center To Rear End:

2400mm

Bulldozer support height:

380mm

Counterweight Ground Clearance:

1250mm

Min Ground Clearance:

270mm

Hydraulic Tank Capacity:

180L

Fuel Tank Capacity:

220L

Working Parameter

Max.Digging Radius:

8130mm

Max.Digging Height:

9115mm

Max.Digging Depth:

5050mm

Max.Digging Height:

6660mm

Hydraulic System Pressure:

31.5MPa

Hydraulic System Flow:

2*126+53L/min

Bucket Digging Force:

85kn

Arm Digging Force:

53kn

Rotation Speed:

13-14/min

Travel Speed:

28-40km/h

Gradeability:

≥60%



SZL160 Wheel excavator
