15tons Wheeled Excavator

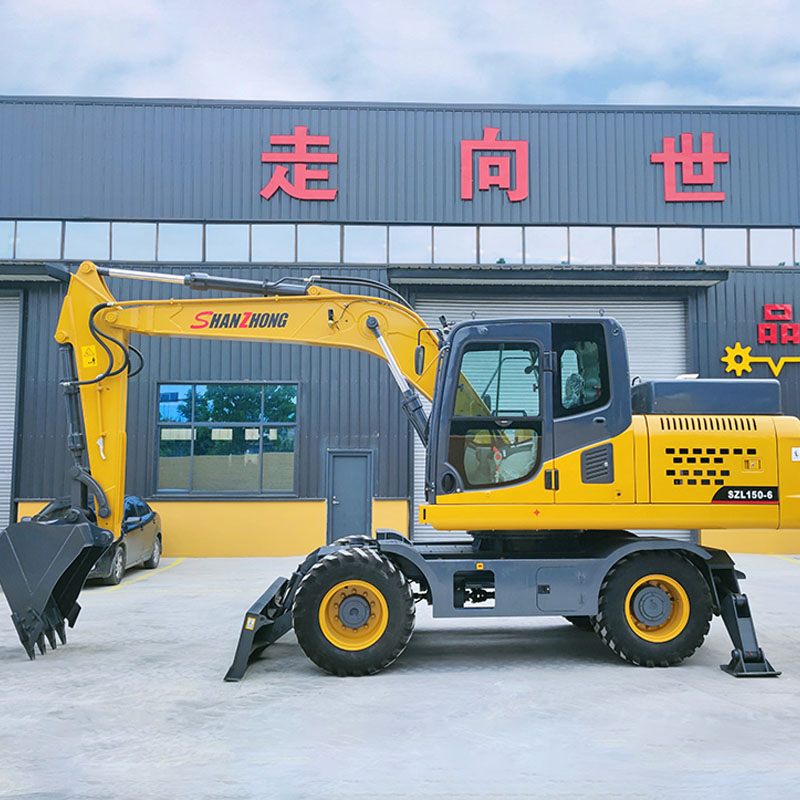

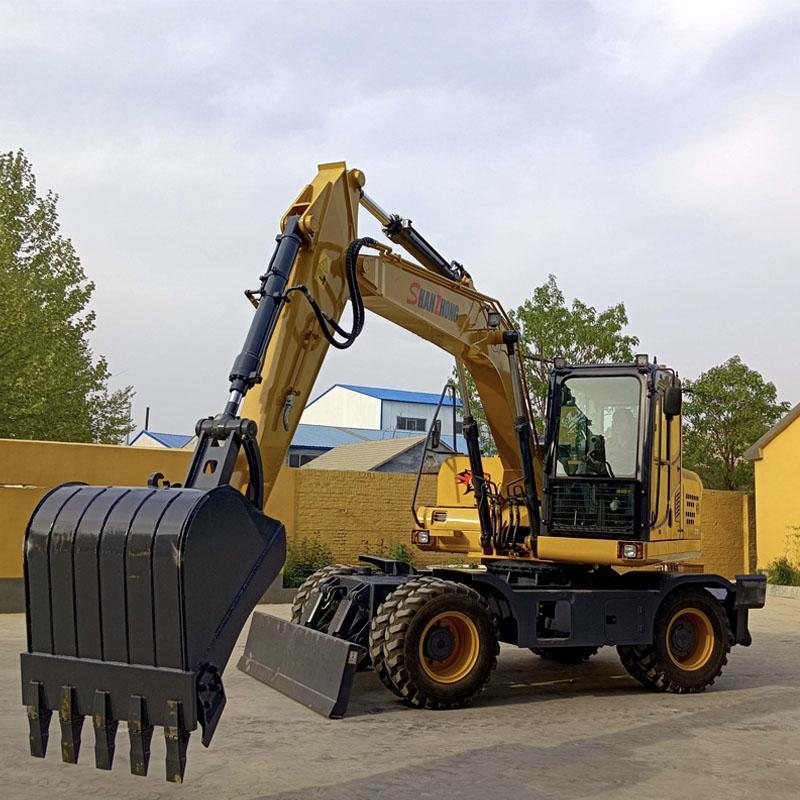

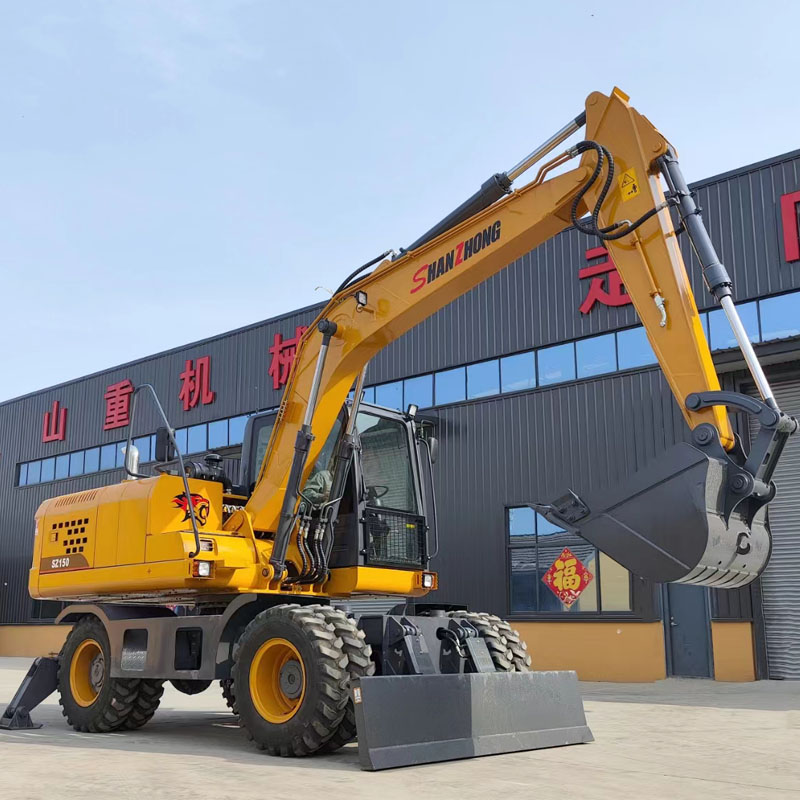

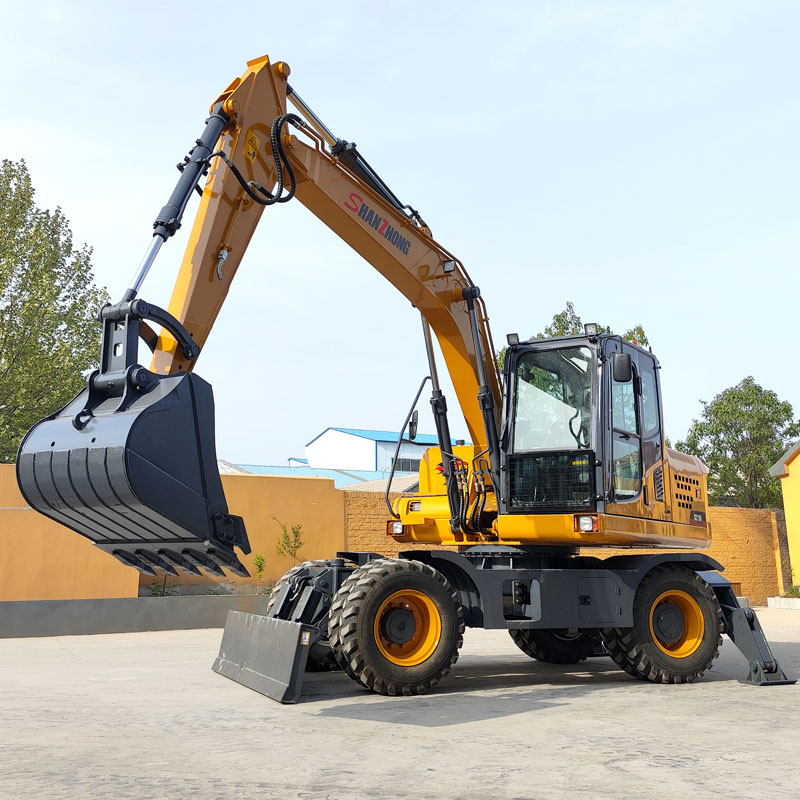

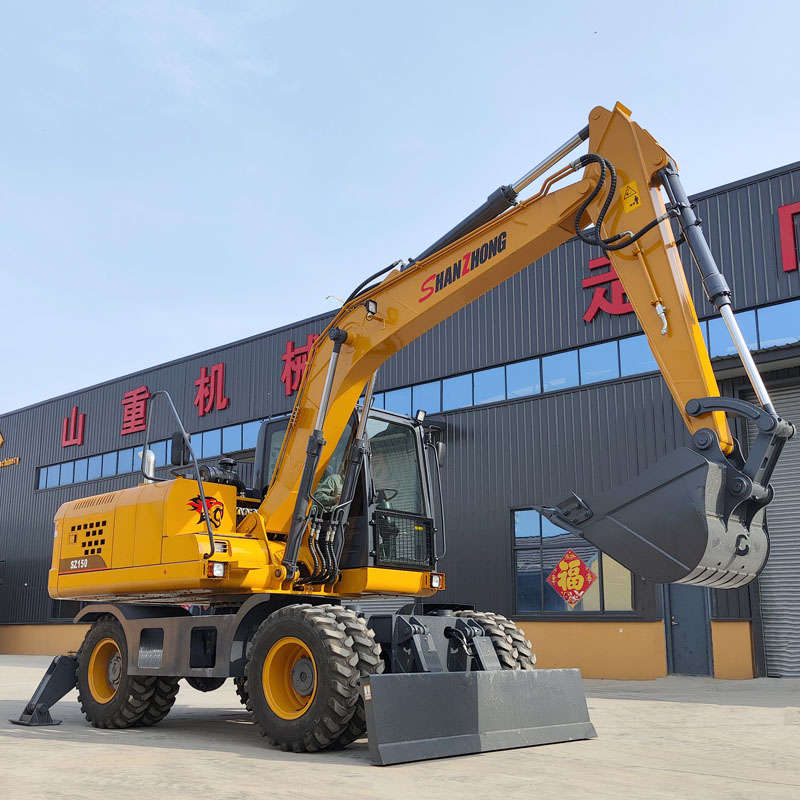

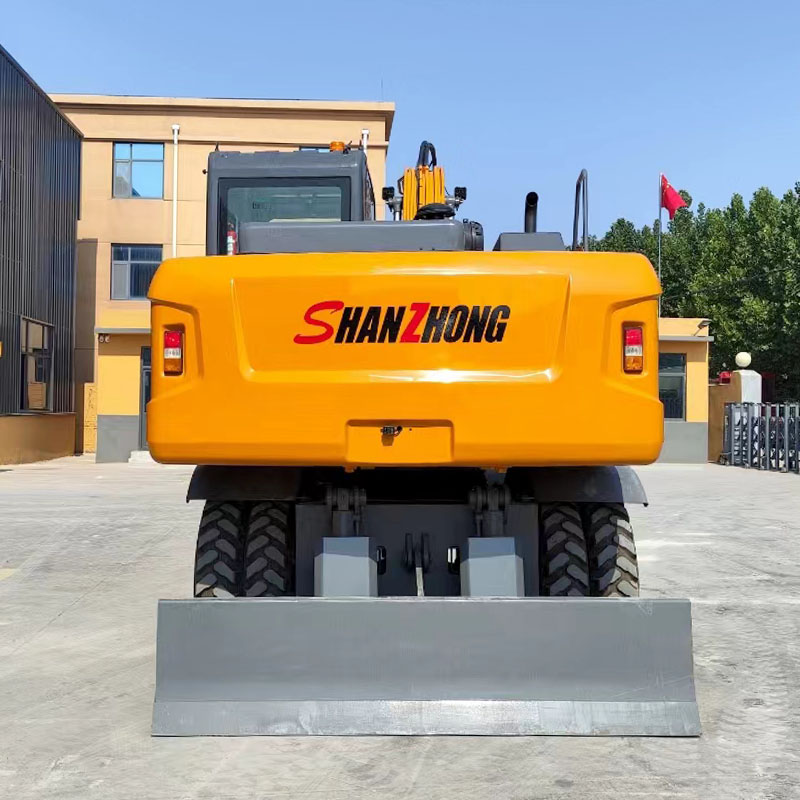

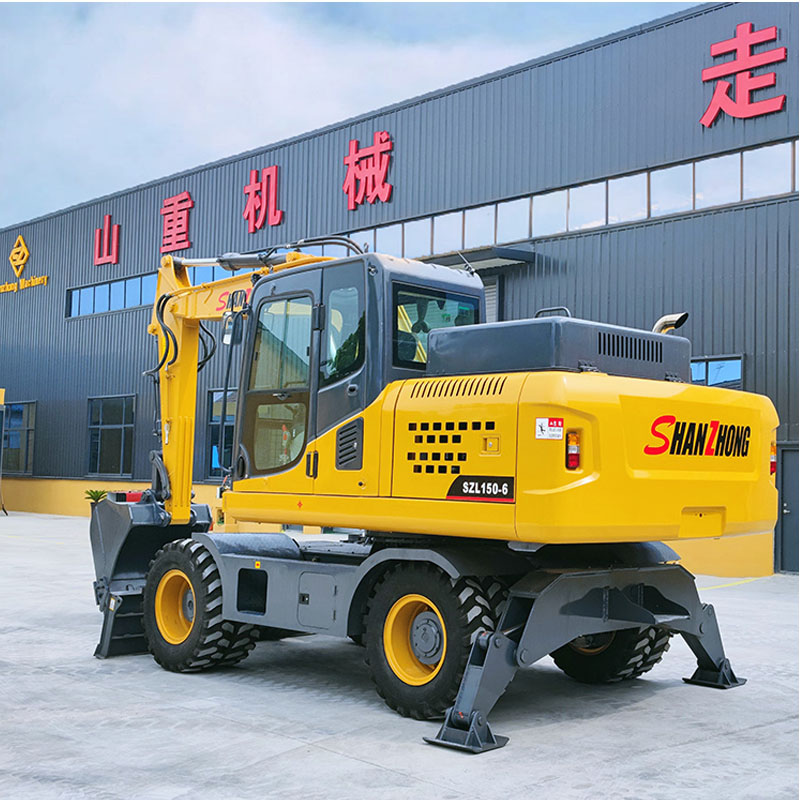

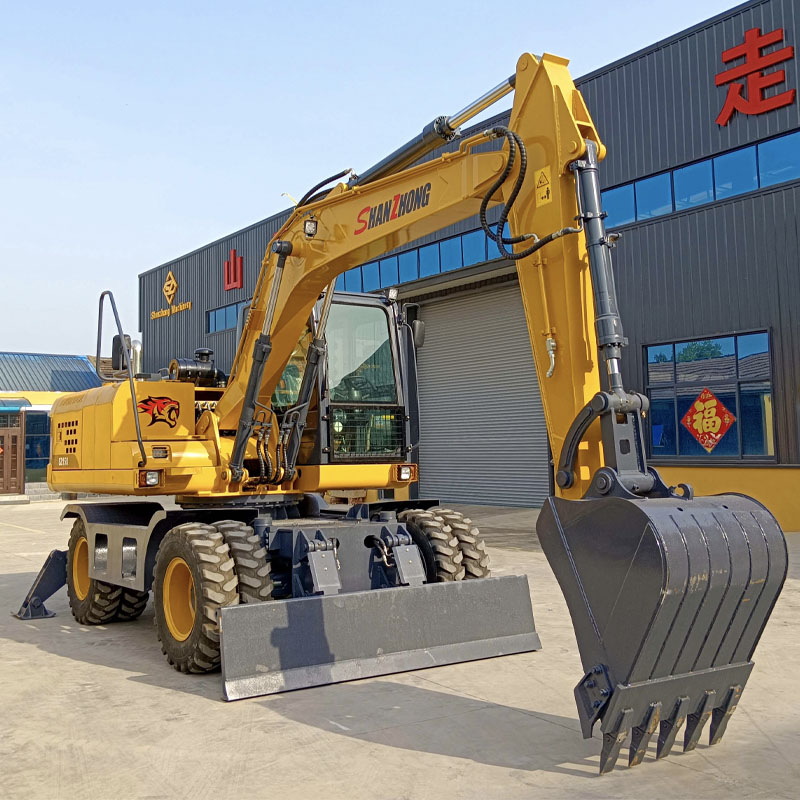

SZL150 Wheel Excavator Product Description
1.Load sensitive system, hydraulic oil brake, adapt to the entire road conditions.
2.Strengthen the front push tape balancing oil cylinder plus the hind -leg design, which is more stable.
3.The full -imported hydraulic system, full -time four -wheel drive, can reach 28km/h.
4.Hydraulic walkingless gear gear torque, flexible electronic shifting operation, and easily realizing edge walking work.
5. Can be installed with 40HQ container transportation, and the freight saves about 70%.
6.Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong is the independent developer of the SZL150 Wheel Excavator, a new generation of fully hydraulic wheeled excavators.
SZL150 provides rich value returns for clients and is crucial to the fields of oil field, airport, port, urban building, irrigation, water conservation, and quick repair.
The strong, adaptable, and beautiful SZL150 wheeled hydraulic excavator can handle a wide range of operating situations. The machine's appearance size conforms with transportation and traffic rules.
The entire machine's hydraulic system is fitted with well-known hydraulic parts and boasts attributes like "great dependability, authentic products, safety and environmental preservation, comfort and convenience," among others. Simultaneously, it may offer an array of customized configuration and attachment choices that can be tailored to meet the needs of various regions and customers.
There are several attachments available. Comfortable and roomy cab with outstanding visibility in every direction. Ergonomic seat upgrade for increased operator comfort.
Parameters | |||
Brand： | shanzhong | Model： | SZL150 |
Engine ： | Cummins 4 clinders 4BTAA3.9-C125 | Power： | 93kw/2200rpm |
Operation Weight： | 15000kg | Bucket Capacity： | 0.6m³ |
Size | |||
Shipping Length： | 7350mm | Arm Length： | 4500mm |
Shipping Height： | 3150mm | Boom Length： | 2500mm |
Total Width： | 2550mm | Height of Bulldozer Plate： | 560mm |
Turntable width： | 2430mm | Height of Bulldozer Plate： | 2600mm |
Wheelbase： | 2650mm | Lifting Height of Bulldozer Plate： | 420mm |
whell Tread： | 1970mm | Bulldozer support height： | 110mm |
Radius,Swing Center To Rear End： | 2400mm | Bulldozer support height： | 310mm |
Counterweight Ground Clearance： | 1070mm | Min Ground Clearance： | 250mm |
Hydraulic Tank Capacity： | 180L | Fuel Tank Capacity： | 220L |
Working Parameter | |||
Max.Digging Radius： | 8360mm | Max.Digging Height： | 8950mm |
Max.Digging Depth： | 5250mm | Max.Digging Height： | 6330mm |
Hydraulic System Pressure： | 31.5MPa | Hydraulic System Flow： | 2*126+53L/min |
Bucket Digging Force： | 115kn | Arm Digging Force： | 98kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-40km/h |
Gradeability： | ≥60% | ||
