17 Ton Series Wheel Excavator

SZL180 Wheel Excavator Product Description

1.Continuously variable automatic transmission, four-wheel drive, four-wheel hydraulic oil brake, adapt to all road conditions.

2. Reinforced front push shovel with balance oil cylinder and rear outrigger design, higher stability,

3.Original imported rotary motor. The rotary speed is fast and the rotary brake is stable.

4.The original fully imported hydraulic system adopts double-pump confluence technology, and the transition speed is fast.

5.Wheel deceleration wet front and rear axles, four-layer winding oil pipes, and Doosan's standard buffer oil cylinders.

6.Customized production can be provided to meet special construction and bidding requirements.


Contact Now E-Mail Telephone WhatsApp
Product Details

SZL180 Wheel excavator is a new generation of fully hydraulic wheeled excavator independently developed by Shanzhong.


SZL180 plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.


SZL180 wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements.


The hydraulic system of the whole machine is matched with famous hydraulic components, and has the characteristics of "high reliability, genuine goods, safety and environmental protection, comfort and convenience", etc. At the same time, it can provide a variety of special configuration and attachments options, which can be adapted to different countries and customer's demand.

Various attachments available. Spacious and comfortable cab, providing excellent all-round vision. New ergonomic seat to improve operator comfort.

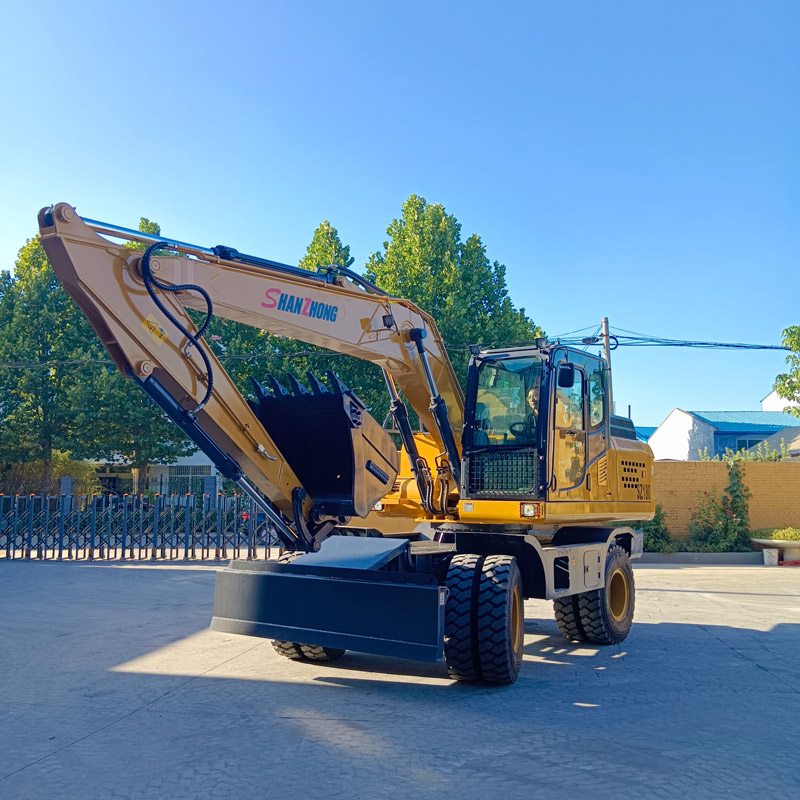

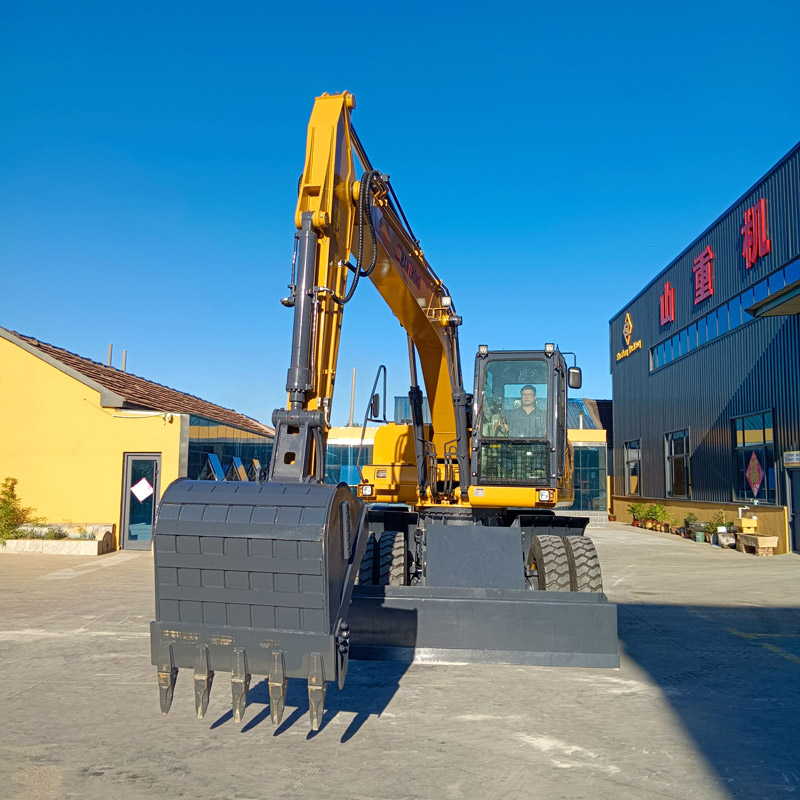

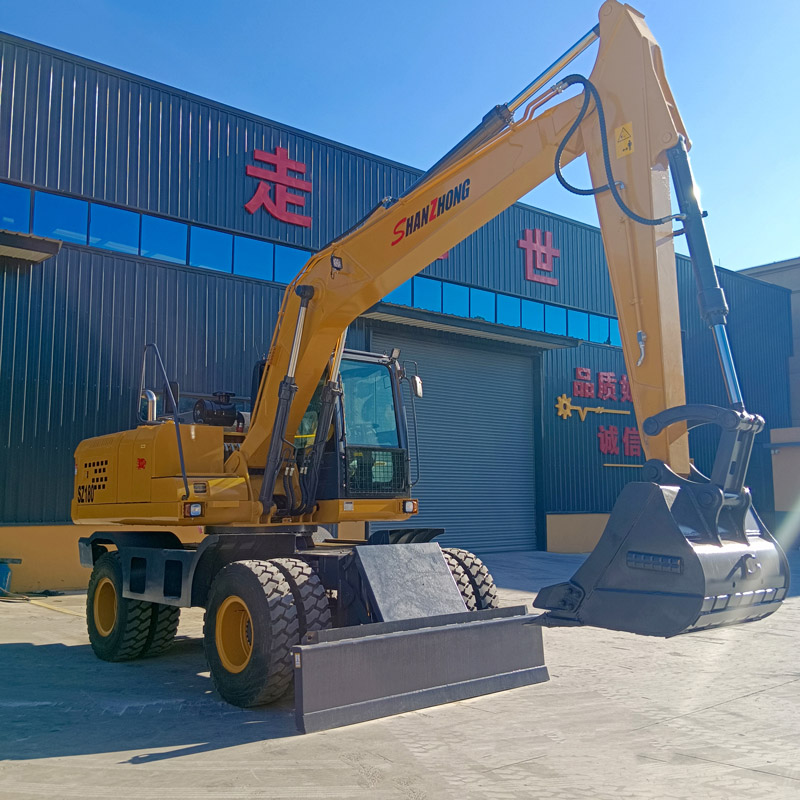

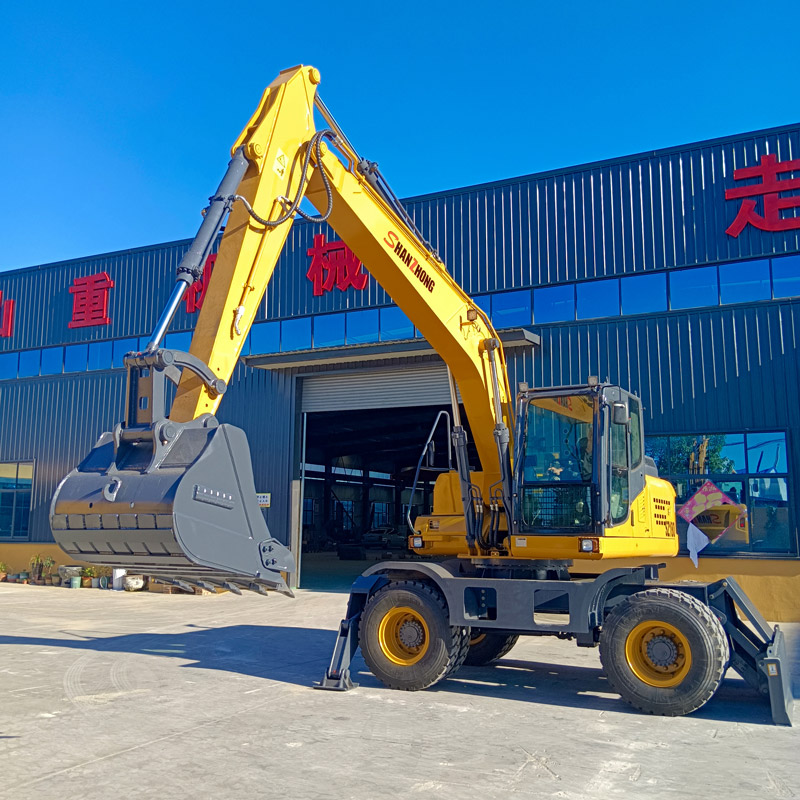

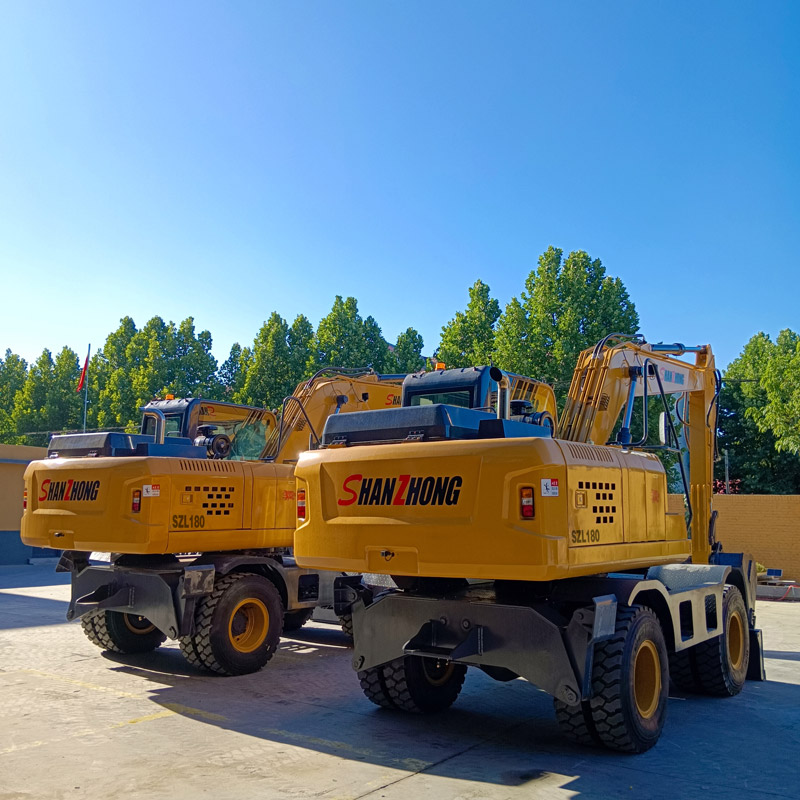

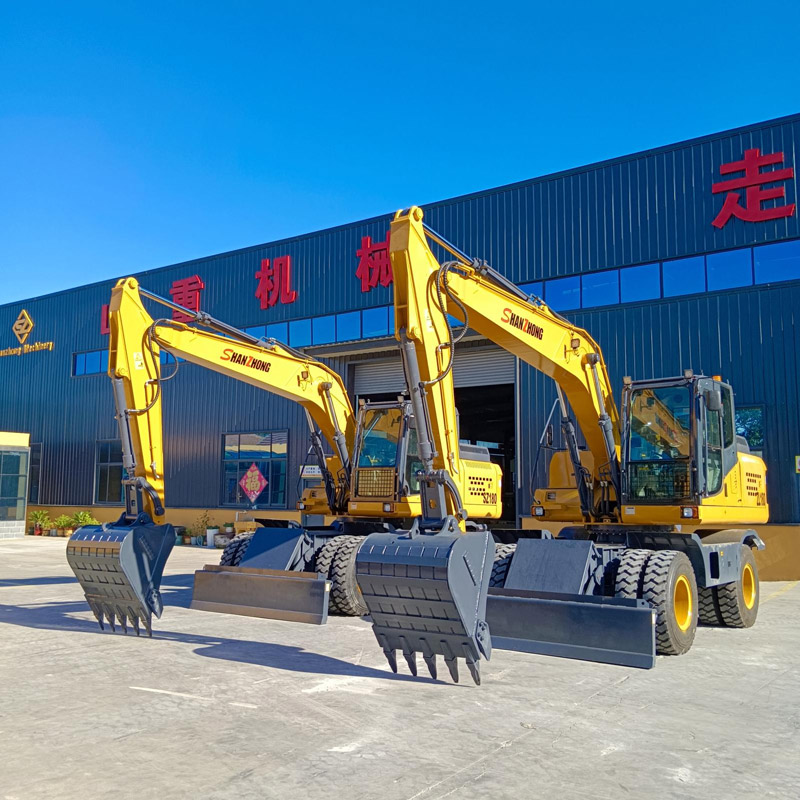

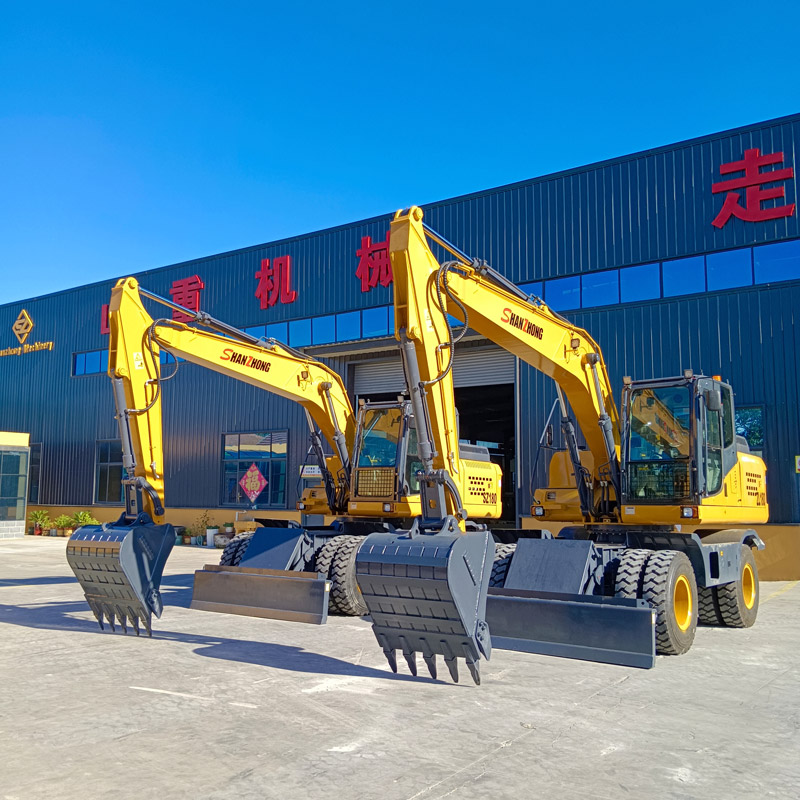

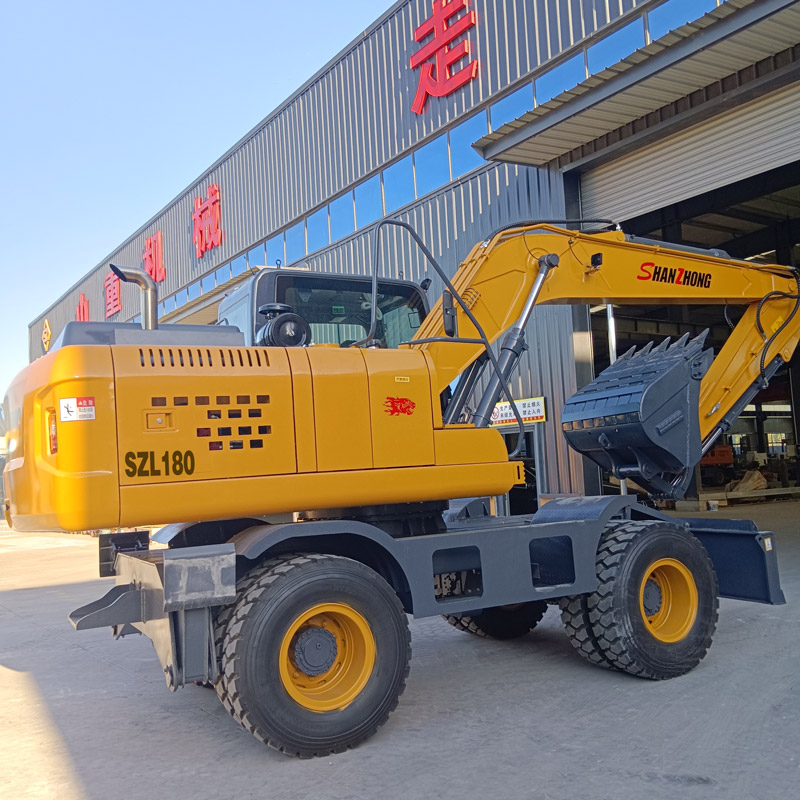

SZL180 Wheel Excavator


Parameters

Brand:

shanzhong

Model:

SZL180

Engine :

Cummins 6 clinders

6BTAA5.9-C205

Power:

153kw/2200rpm

Weight:

17000kg

Bucket Capacity:

0.8m³

Size

Shipping Length:

8650mm

Arm Length:

4800mm

Shipping Height:

3740mm

Boom Length:

3135mm

Total Width:

2500mm

Height of Bulldozer Plate:

590mm

Turntable width:

2450mm

Height of Bulldozer Plate:

2700mm

Wheelbase:

2670mm

Lifting Height of Bulldozer Plate:

450mm

whell Tread:

1900mm

Bulldozer support height:

110mm

Radius,Swing Center To Rear End:

2400mm

Bulldozer support height:

380mm

Counterweight Ground Clearance:

1350mm

Min Ground Clearance:

270mm

Hydraulic Tank Capacity:

180L

Fuel Tank Capacity:

220L

Working Parameter

Max.Digging Radius:

8750mm

Max.Digging Height:

9422mm

Max.Digging Depth:

5525mm

Max.Digging Height:

7200mm

Hydraulic System Pressure:

32MPa

Hydraulic System Flow:

2*160L/min

Bucket Digging Force:

92.5kn

Arm Digging Force:

60kn

Rotation Speed:

13-14/min

Travel Speed:

28-35km/h

Gradeability:

≥60%
