180HP China Motor Grader Factory

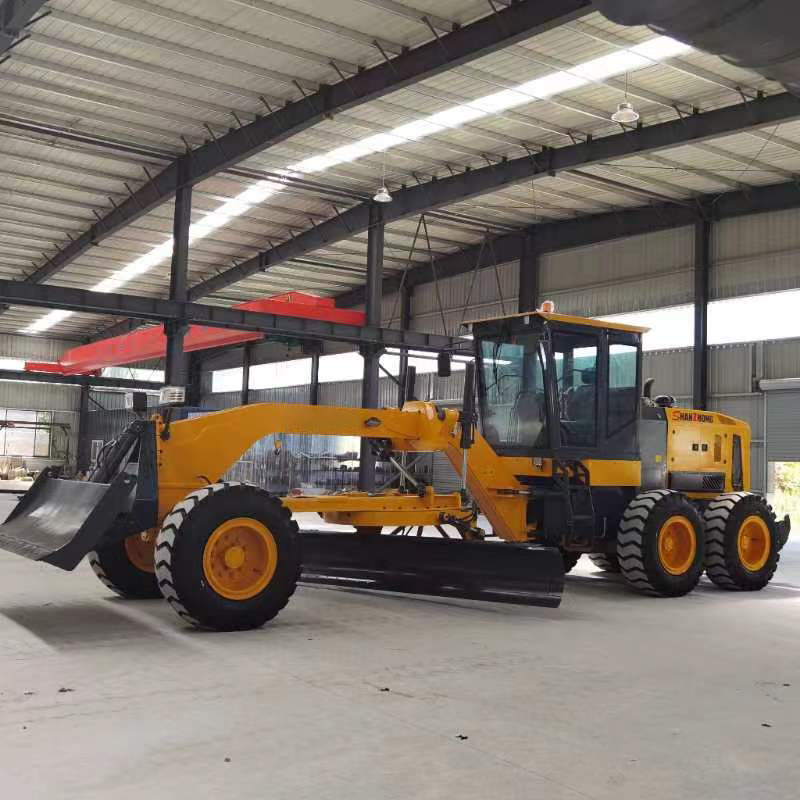

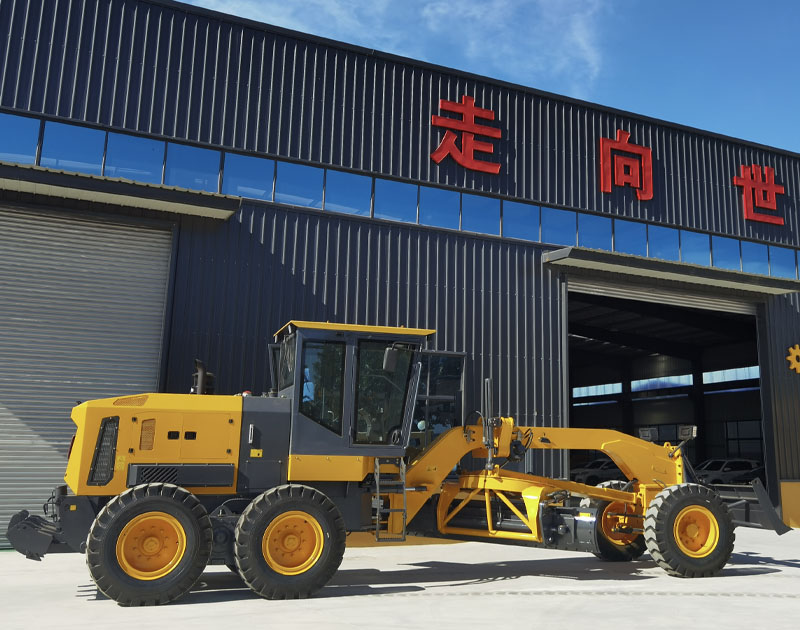

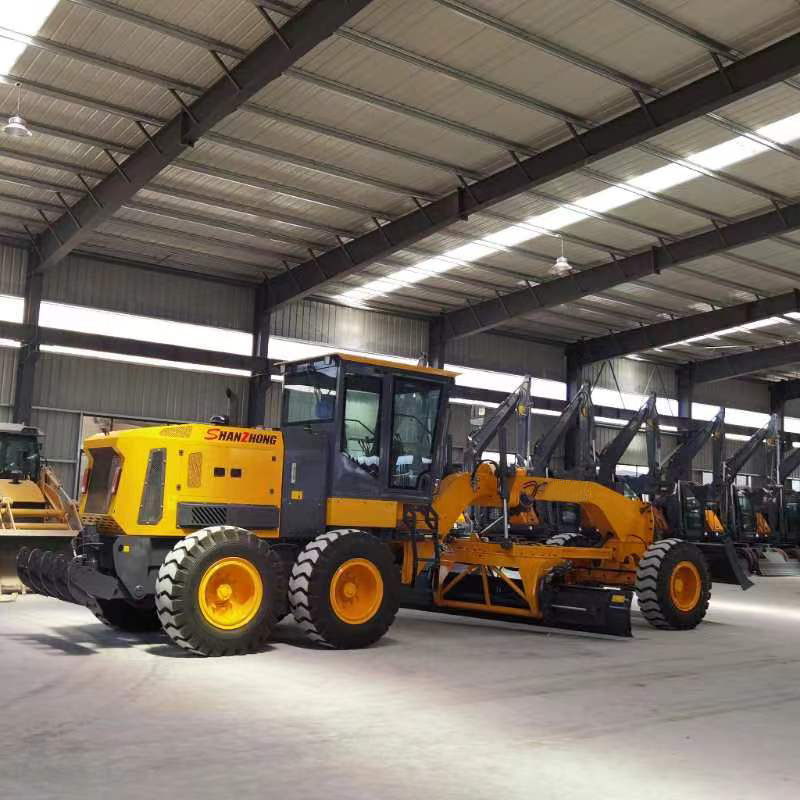

SZC180 Motor Grader

1) Large traction force, fast transition speed, and can easily move up and down the 1.1-meter transport pallet.

2) Four-wheel drive, sufficient power, hydraulic oil brake, fast braking, safe and reliable.

3) The slewing bearing structure is maintenance-free, high-precision, and has a service life of more than 10,000 hours.

4) It adopts well-known brand wheel-side reduction axle, which is highly adaptable, stable and reliable, and easy to maintain.

5) Main and secondary knives made of manganese steel, reinforced body design. Panoramic cab, complete with fire emergency equipment.

6) Customized production can be provided to meet special construction and bidding needs.


Contact Now E-Mail Telephone WhatsApp
Product Details

A motor grader made by the Shanzhong brand is suitable for leveling vast tracts of land during foundation construction. can be utilized for an assortment of tasks, include ditching, assessment, slope scraping, bulldozing, ripping, virgin land, scarifying, and snow clearance. It is an advanced form of multifunctional, extremely effective construction equipment for use on high-class roadways, railways, airports, harbors, dams, industrial land, and farms.

SZC180 Motor Grader

Main Characteristic:

1. A common custom brand diesel engines with water cooling, turbocharging, and exceptional performance characteristics energy.
2. The power-shift gearbox and torque converter are along. Three backward and six forward gears satisfy various requirements while the machine is being operated and transported.
3. Front axle with boxed oscillated steering and leaning wheels; drive axle with incorporated free-wheel anti-slip differential and durable roller chain drive tandem case.
4. Common operational mechanism with standard fitted free-maintenance rolling-plate oval device and pendulum-arm connecting rod structure. a number of factors, including the quality of the soil, the cutting angle can be adjusted with a double blade tip control.

5. Two sets of five-way valves for controlling in a flexible hydraulic control system; an imported hydraulic equalizing valve for lifting blade; and a patent-pending, organically built, hydraulically controlled pin drawing device.
6. The machine's entirety trip can be offset by the steering system's tilting turning front wheels and center articulating joint.
7, Mechanical internal expanding parking brake let and caliper disc brakes on each of the four back wheels comprises the service braking system.
8, drove entirely by electricity and complete with an instrument monitoring system.

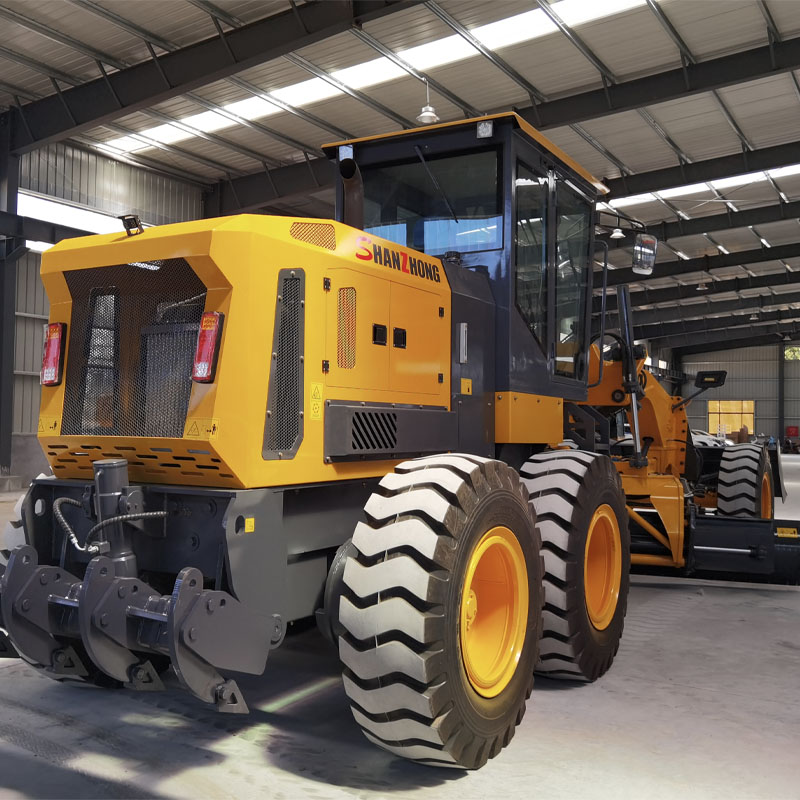

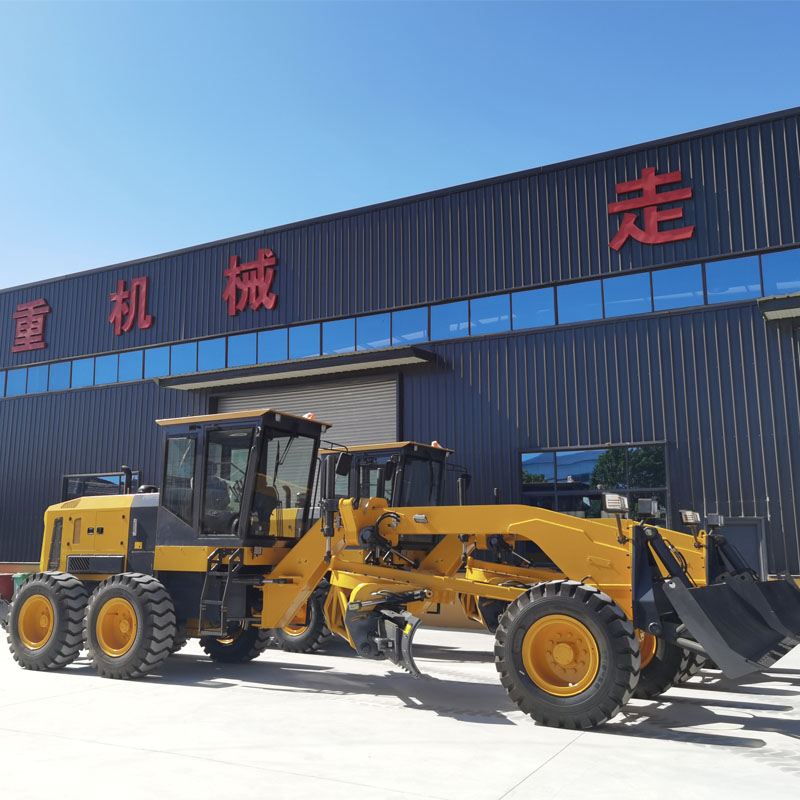

9. Both the back ripper and front bulldozing plate are optional.

SZC180 Motor Grader

Product parameter introduction

Brand

shanzhong

Model

SZC180

Engine

WP6G175

Rated power/speed

120 kw/2200rpm

Overall weight

14500kg

Cutter size(L×H×T)

3952×590×20mm

Size

Shipping Length:

9000mm

Wheel base of rear axle

1650mm

Shipping Height:

3350mm

Min.ground clearance of front axle

5600mm

Overall Width:

2536mm

Min.ground clearance of rear axle

500mm

Wheel base (mm)

6840mm

Hydraulic oil

165L

Wheel tread

1685mm

Fuel

240L

Gearbox mode

Fixed axis power shift

Torque converter

Single stage, single phase, three elements

Gears

Front 4 rear 2

Tyre

17.5-25

Pressure System

16MPa

Max.speed(forward, backward)



44km/h  33km/h

WORKING RANGE

Max.swinging angle of front axle

± 16°

Swing angle of blade

360°

Max.steering angle of front wheel

±45°

Ground clearance of blade

450mm

Steering angle of articulated frame

±25°

Cutting depth of blade

360mm

Bulldozing board lifting height

420mm

Sliding range of blade

Forward 47°/backward 5°

Cutter diameter

1500mm

Sliding range of blade

Left 600/right 600mm

SZC180 Motor Grader
