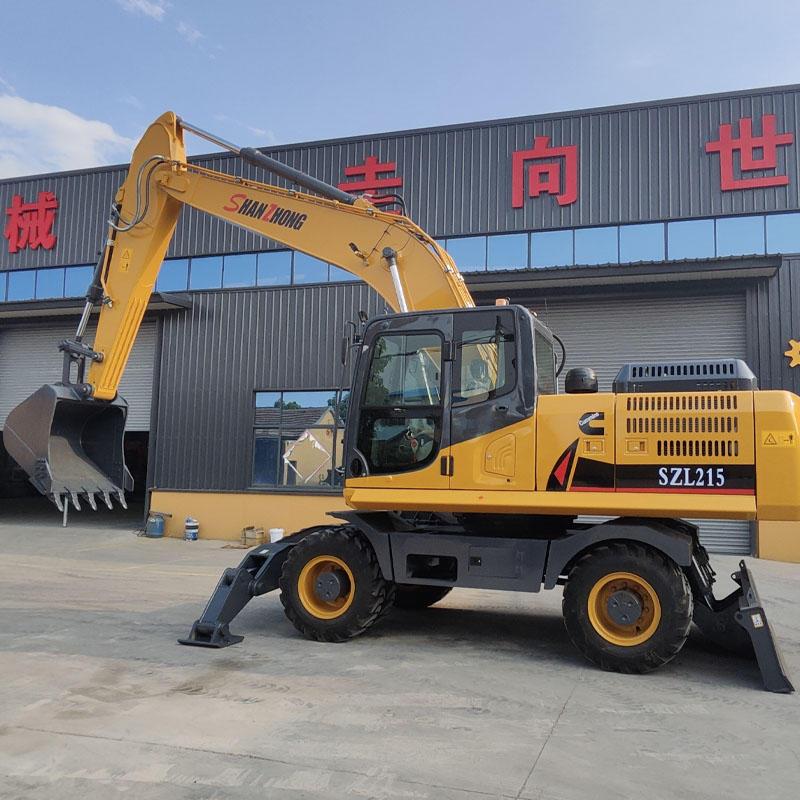

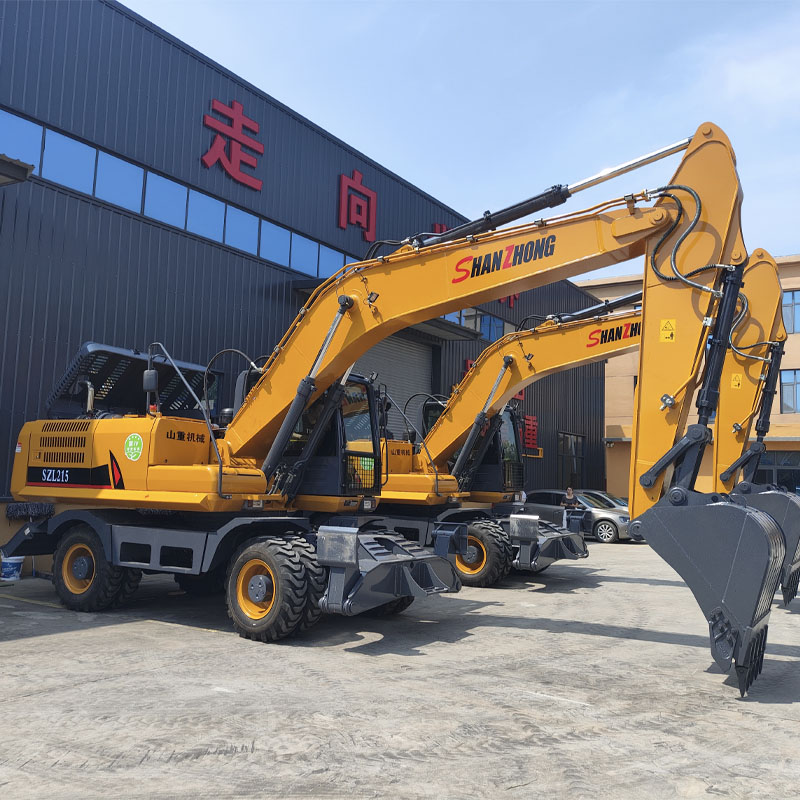

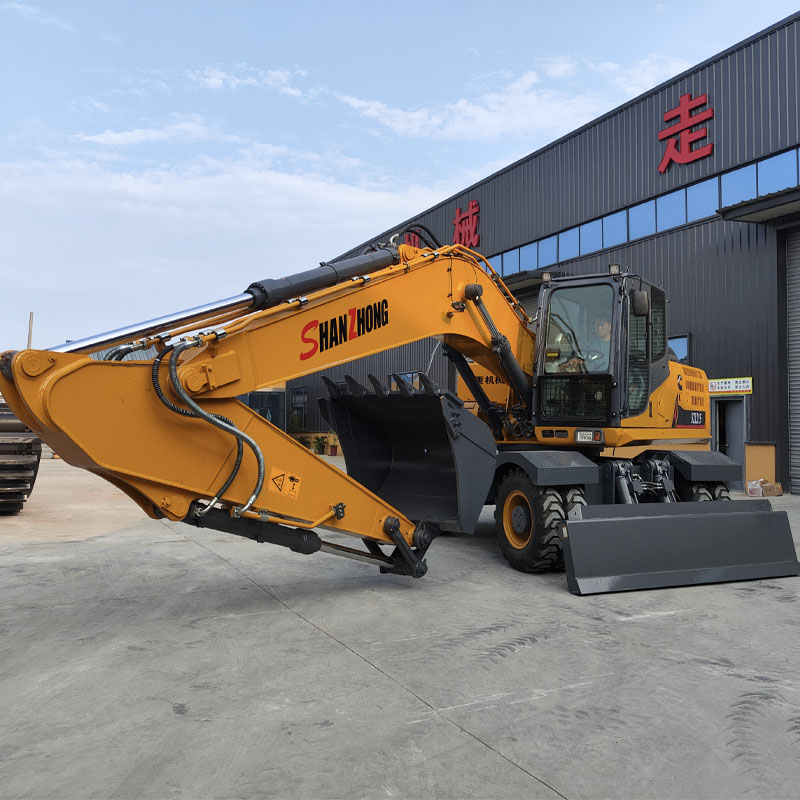

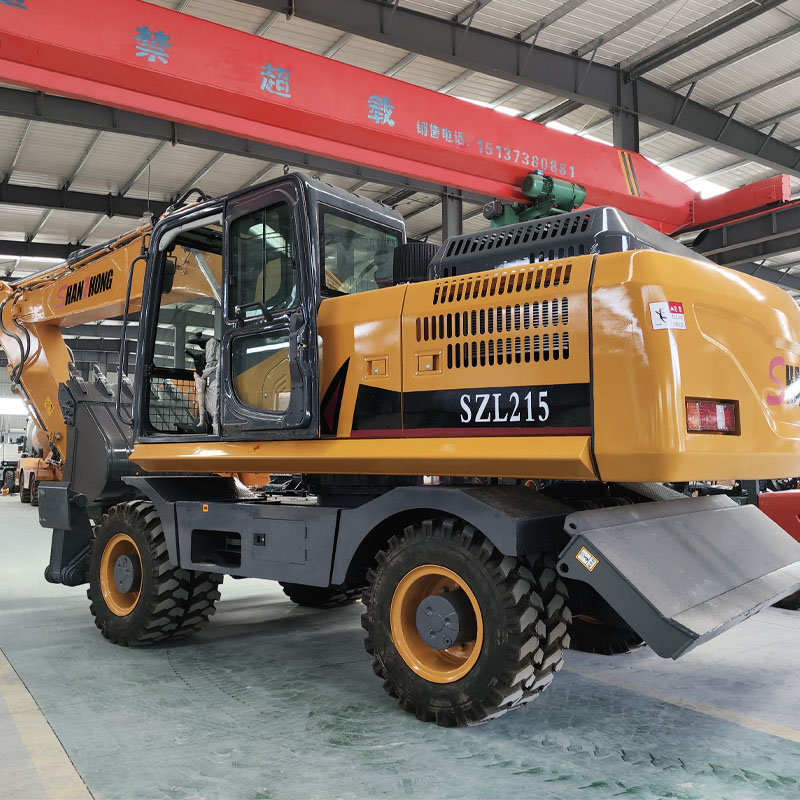

21 Ton China Wheel Excavator Factory

KEY SPECS

Engine Power - 133KW

Weight - 21000KG

Bucket Capacity - 1.0m³


Contact Now E-Mail Telephone WhatsApp
Product Details

SZL215 Wheel excavator is a new generation of fully hydraulic wheeled excavator independently developed by Shanzhong. To ensure the dependable power and power reserve of the whole machine, it is powered by a high-power, low-fuel engine. The high-efficiency hydraulic systems and axle box have been precisely matched to ensure the work.

The whole machine's hydraulic system is fitted with renowned hydraulic parts and boasts attributes like "exceptional reliability, realistic services, safety and preservation of the environment, comfort and convenience," amongst others. simultaneously, it may offer a variety of custom configuration and attachment decision-making that can be tailored to meet the demands of different areas and customers.

There are additionally several attachments available. Comfortable and airy cab featuring exceptional vision in all directions. Ergonomic seat modification for increased operator comfort.

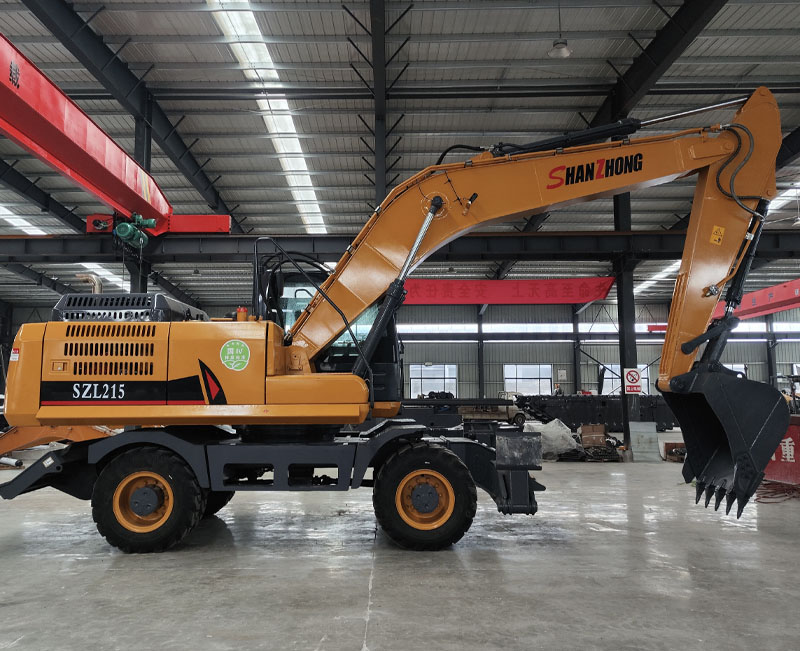

21 Ton Wheel Excavator


Parameters

Brand:

shanzhong

Model:

SZL215

Engine :

Cummins 6 clinders

6BTAA5.9-C178

Power:

133kw/2200rpm

Weight:

21000kg

Bucket Capacity:

1.0m³

Size

Shipping Length:

9700mm

Arm Length:

5650mm

Shipping Height:

3340mm

Boom Length:

2920mm

Total Width:

2730mm

Height of Bulldozer Plate:

560mm

Turntable width:

2620mm

Height of Bulldozer Plate:

2600mm

Wheelbase:

2840mm

Lifting Height of Bulldozer Plate:

420mm

whell Tread:

1980mm

Bulldozer support height:

110mm

Radius,Swing Center To Rear End:

2750mm

Bulldozer support height:

380mm

Counterweight Ground Clearance:

1259mm

Min Ground Clearance:

345mm

Hydraulic Tank Capacity:

215L

Fuel Tank Capacity:

350L

Working Parameter

Max.Digging Radius:

9700mm

Max.Digging Height:

10600mm

Max.Digging Depth:

6350mm

Max.Digging Height:

7800mm

Hydraulic System Pressure:

34.3MPa

Hydraulic System Flow:

2*231.7L/min

Bucket Digging Force:

134/126kn

Arm Digging Force:

99/93kn

Rotation Speed:

0-12r/min

Travel Speed:

28-35km/h

Gradeability:

≥60%

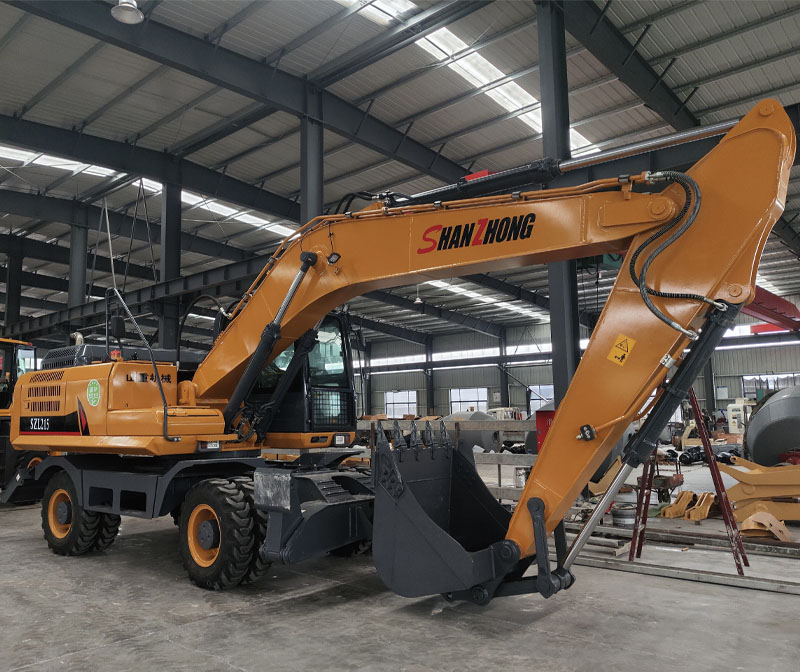

 21 Ton Wheel Excavator
