21 Ton Wheel Excavator Manufacturers

KEY SPECS


Engine Power - 153KW

Weight - 21000KG

Bucket Capacity - 1.0m³


Contact Now E-Mail Telephone WhatsApp
Product Details

SZL215 Wheel Excavator Product Description

1.Schedule transmission automatic transmission, 4wheels drive, 4 wheels hydraulic oil brakes to adapt to the entire road conditions.

2.Strengthen the design of the balancing oil tank and the back -leg design, which is more stable.

3.Kawasaki/Doosan main pump, Parker control valve, powerful ,flexible and efficient movements.

4.Original all imported walk motor, using dual pump combined flow technology, the speed can reach 35km/h.

5.Original imported ZF transmission, four -layer wound oil pipe, and the same standard buffer cylinder in Doosan.

6.Customized production can be provided to meet the needs of special construction and bidding.


SZL215 Wheel excavator is a new generation of fully hydraulic wheeled excavator independently developed by Shanzhong. It adopts a high-power and low-fuel-consumption engine to ensure the strong power and power reserve of the whole machine; the precise matching of the high-efficiency hydraulic system and the axle box ensures the work.

The hydraulic system of the whole machine is matched with famous hydraulic components, and has the characteristics of "high reliability, genuine goods, safety and environmental protection, comfort and convenience", etc. At the same time, it can provide a variety of special configuration and attachments options, which can be adapted to different countries and customer's demand.

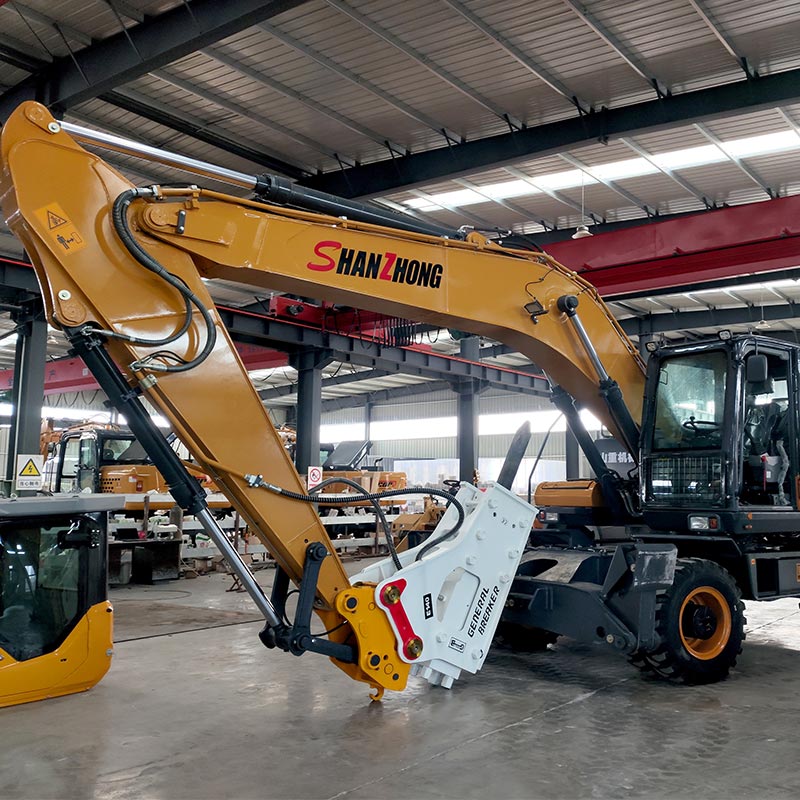

Various attachments available. Spacious and comfortable cab, providing excellent all-round vision. New ergonomic seat to improve operator comfort.

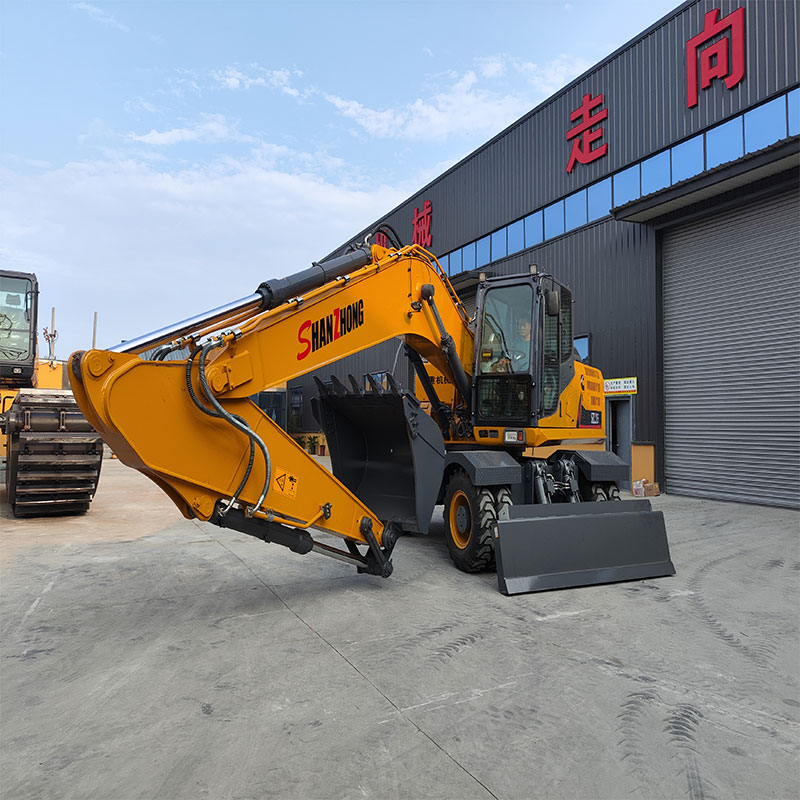

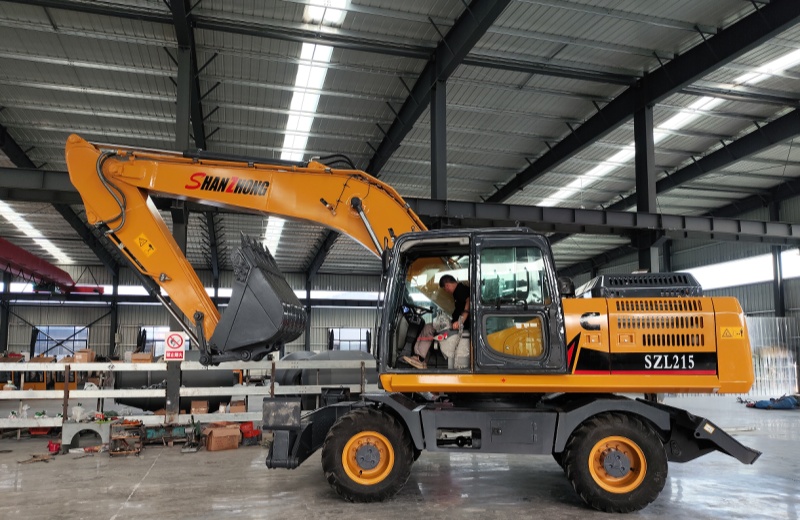

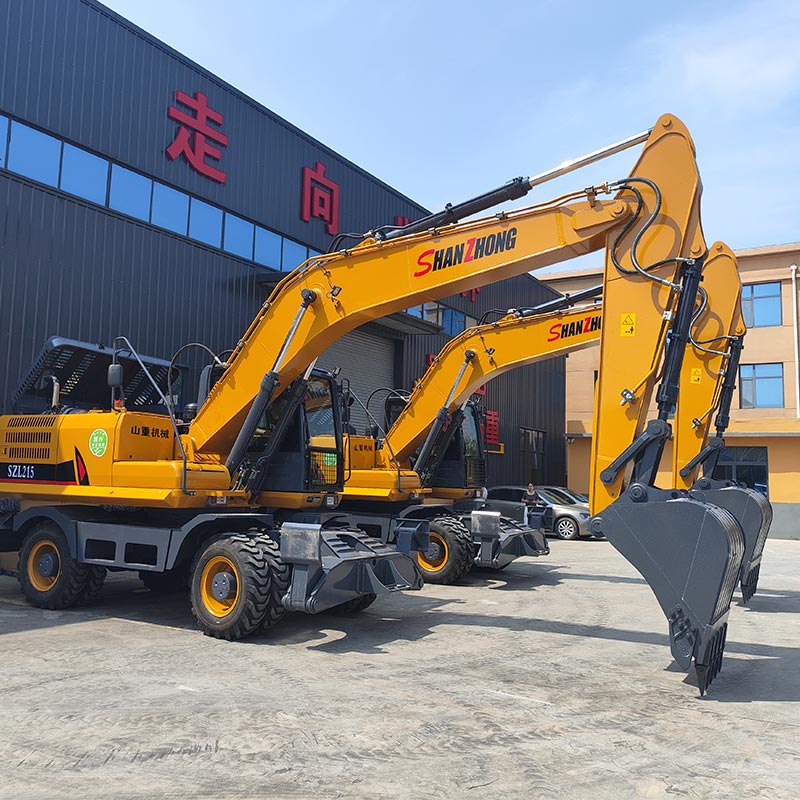

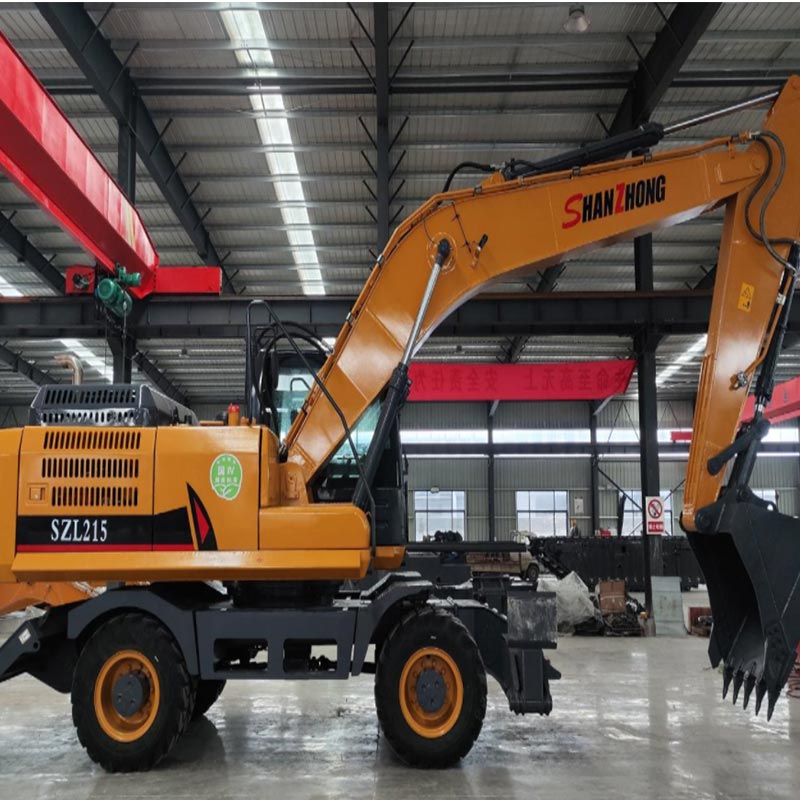

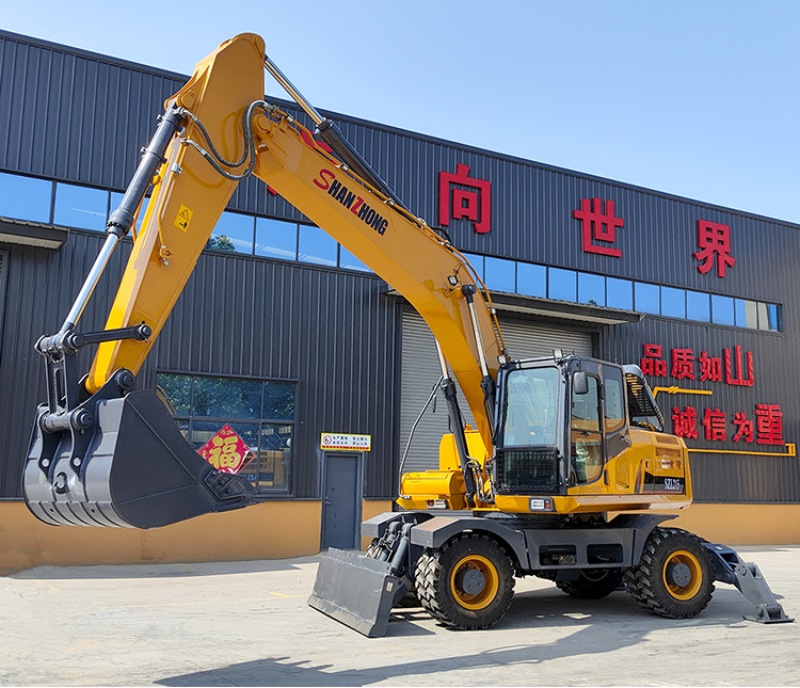

SZL215 Wheel Excavator


Parameters

Brand:

shanzhong

Model:

SZL215

Engine :


Cummins 6 clinders

6BTAA5.9-C178

Power:

133kw/2200rpm

Weight:

21000kg

Bucket Capacity:

1.0m³

Size

Shipping Length:

9700mm

Arm Length:

5650mm

Shipping Height:

3340mm

Boom Length:

2920mm

Total Width:

2730mm

Height of Bulldozer Plate:

560mm

Turntable width:

2620mm

Height of Bulldozer Plate:

2600mm

Wheelbase:

2840mm

Lifting Height of Bulldozer Plate:

420mm

whell Tread:

1980mm

Bulldozer support height:

110mm

Radius,Swing Center To Rear End:

2750mm

Bulldozer support height:

380mm

Counterweight Ground Clearance:

1259mm

Min Ground Clearance:

345mm

Hydraulic Tank Capacity:

215L

Fuel Tank Capacity:

350L

Working Parameter

Max.Digging Radius:

9700mm

Max.Digging Height:

10600mm

Max.Digging Depth:

6350mm

Max.Digging Height:

7800mm

Hydraulic System Pressure:

34.3MPa

Hydraulic System Flow:

2*231.7L/min

Bucket Digging Force:

134/126kn

Arm Digging Force:

99/93kn

Rotation Speed:

0-12r/min

Travel Speed:

28-35km/h

Gradeability:

≥60%

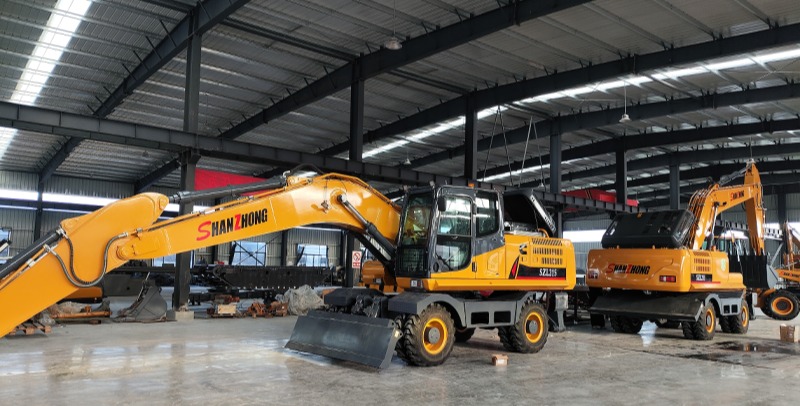

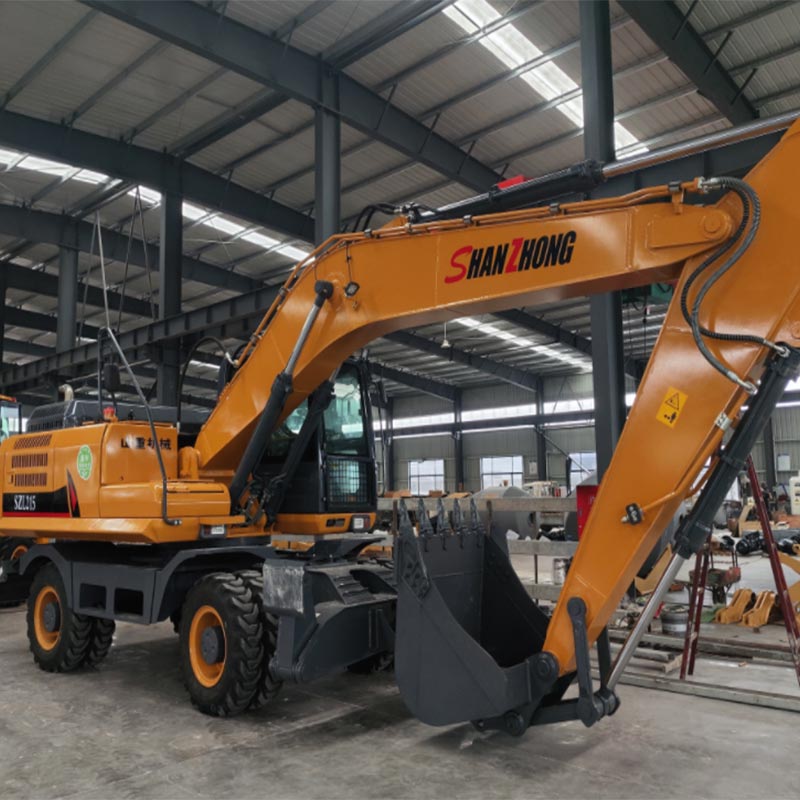

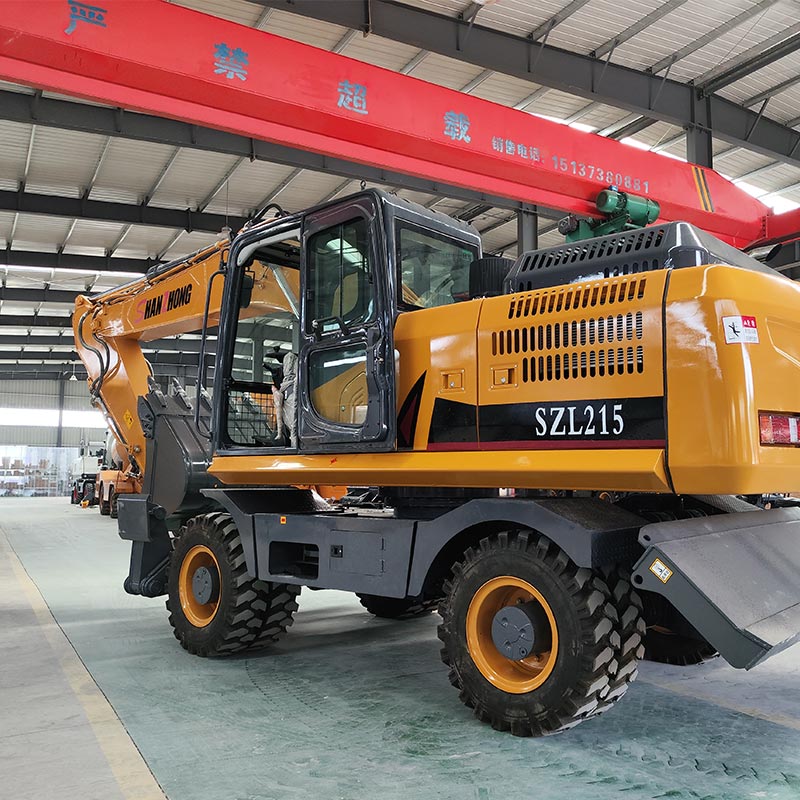

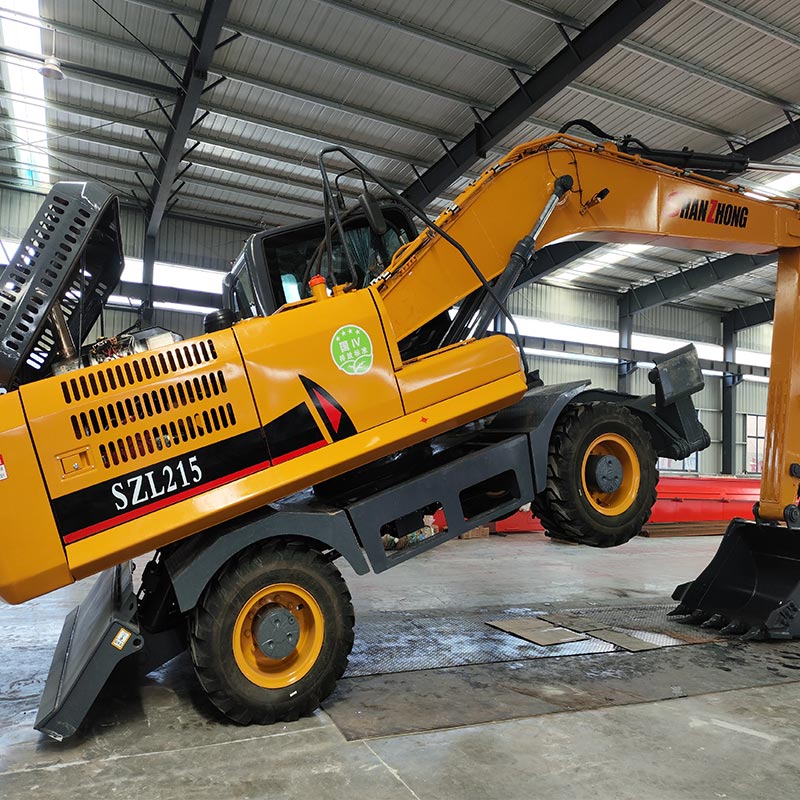

SZL215 Wheel Excavator

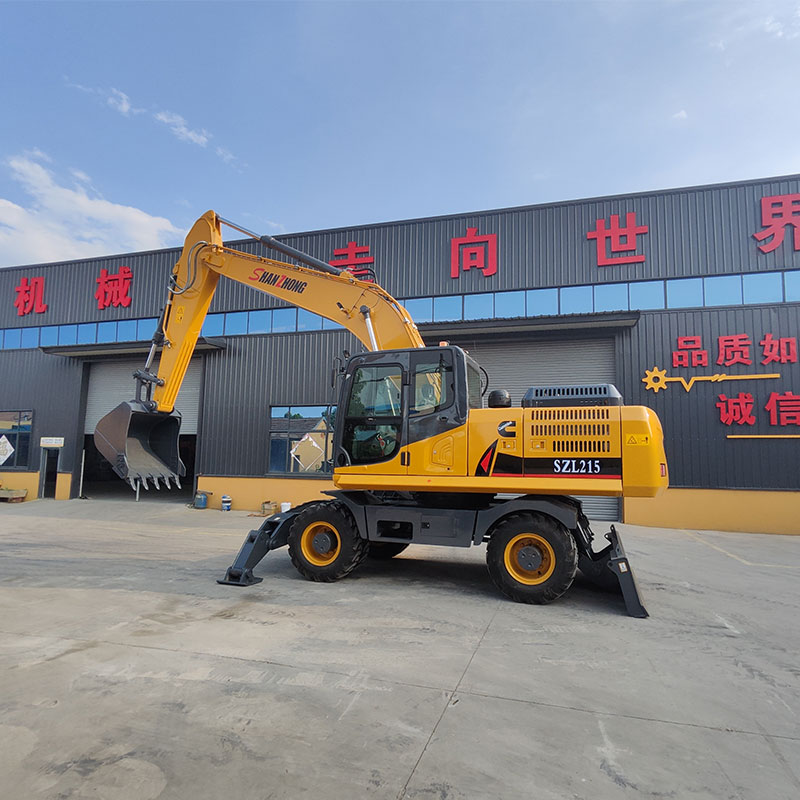

SZL215 Wheel Excavator
