21Ton Crawler Excavators

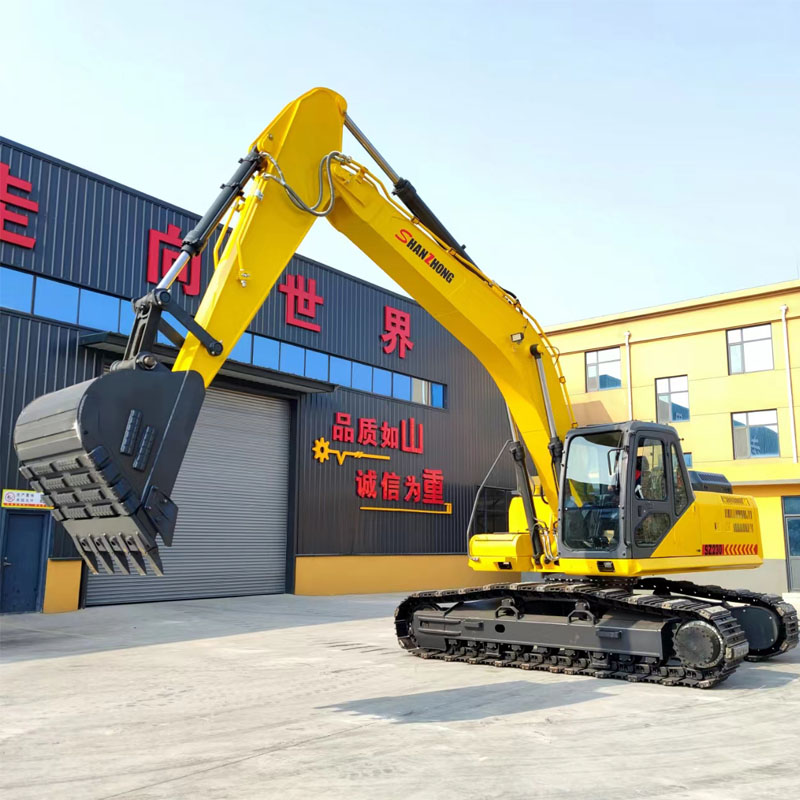

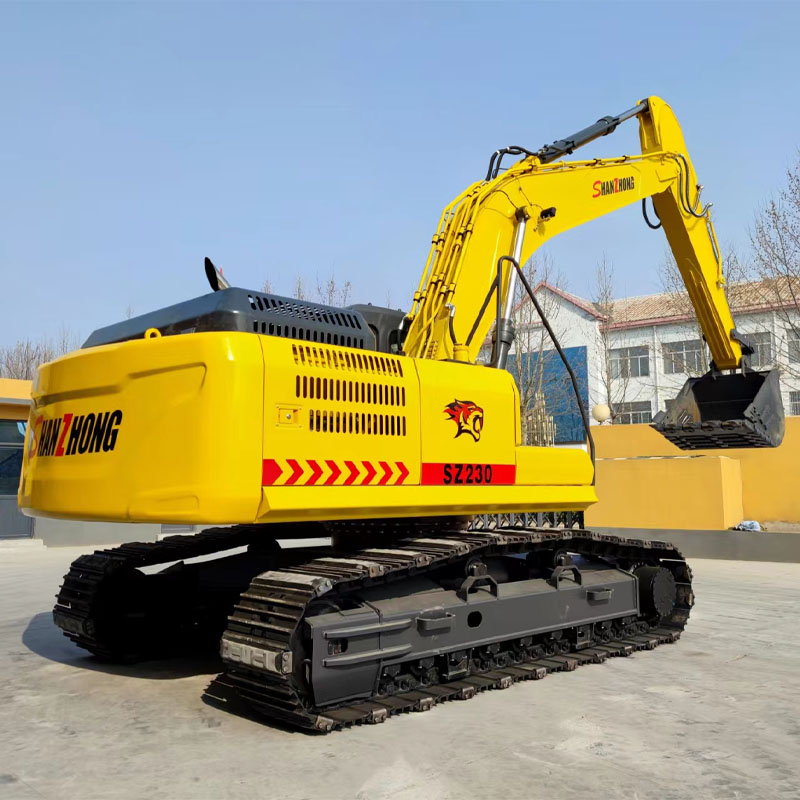

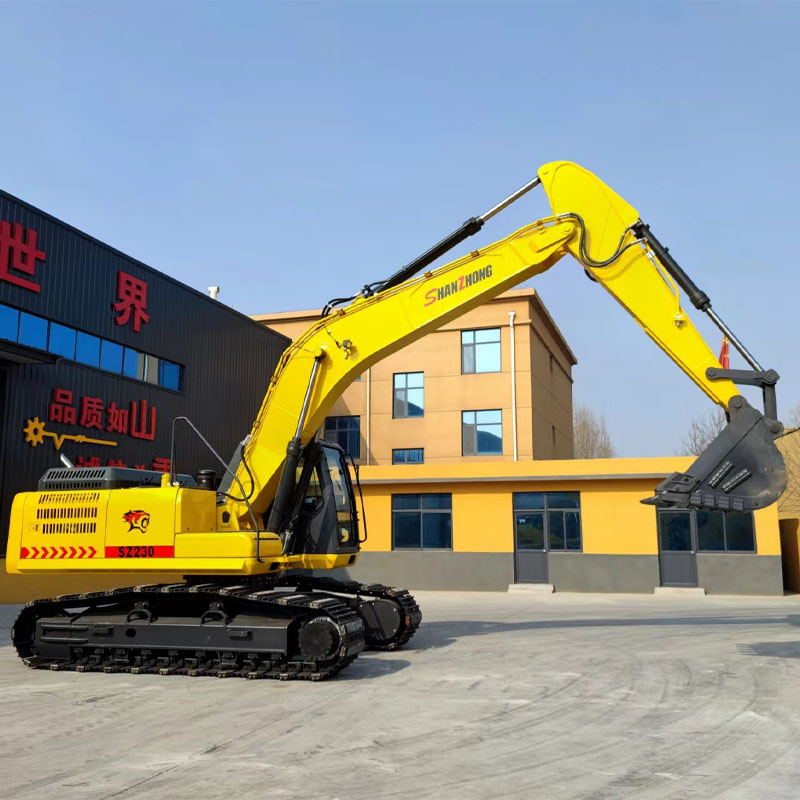

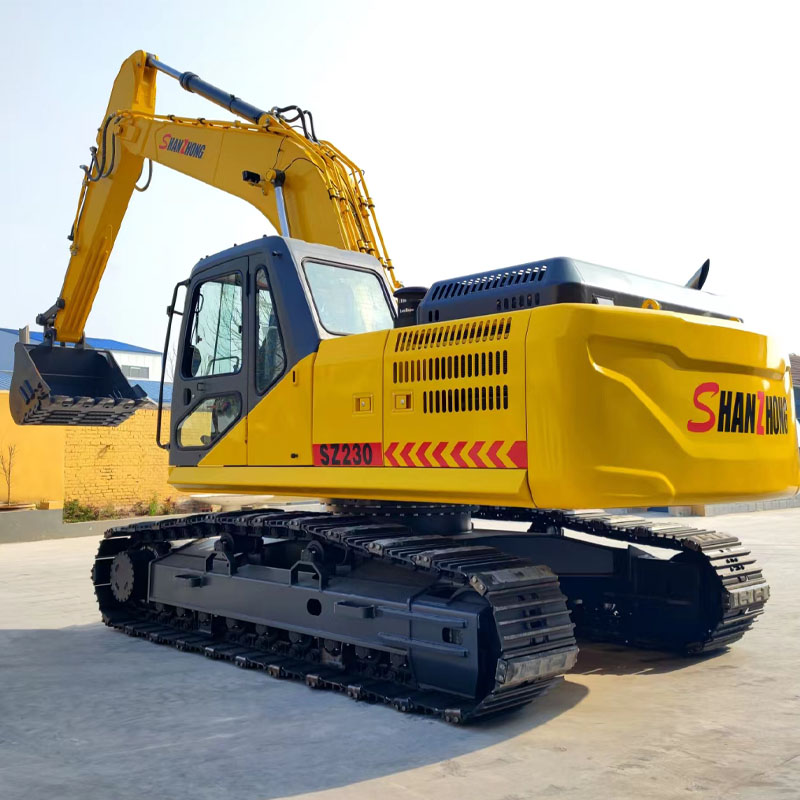

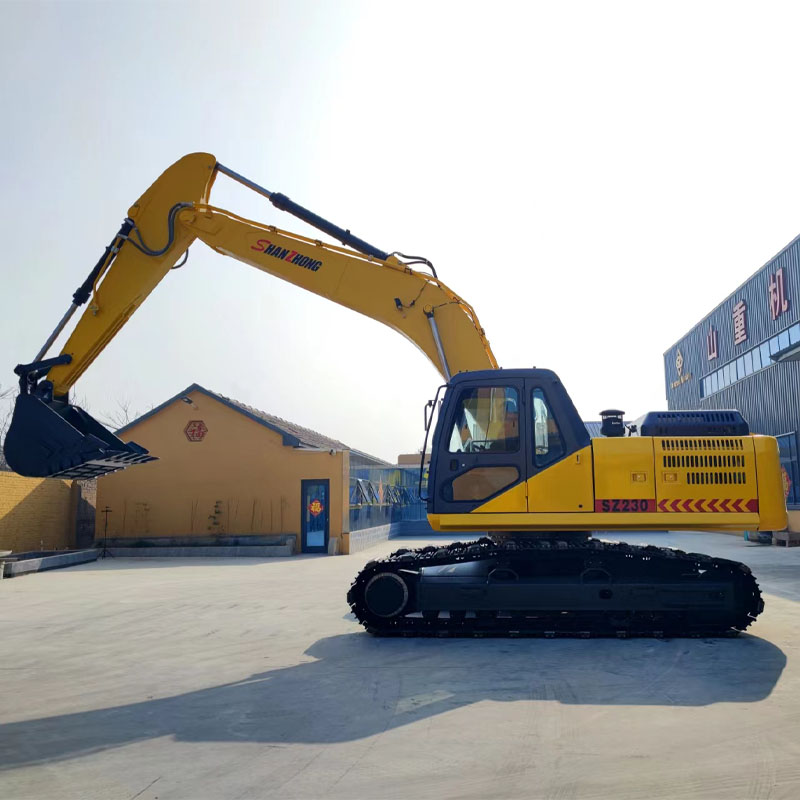

SZ230 Crawler Excavator Product Description
1)Original imported hydraulic system,soft movement,stable and durable
2)Sturdy Cabin structure,and the four-sided panoramic glass windows provide excellent safety in all-round vision,which greatly improves work efficiency.
3)Famous brand power system,strong horsepower,energy saving and environmental protection,adapt to the requirements of various working conditions
Shanzhong is the independent developer of the SZ230 crawler excavator, a new generation of fully hydraulic crawler excavators. To assure both the machine's whole power and reserve, it employs a powerful but fuel-efficient engine; the perfect matched high-efficiency hydraulic system and axle box ensure the task.
Among its many claims to fame are "great dependability, authentic products, safety and preservation of the environment, comfort and convenience," and the hydraulic system of the complete machine is equipped with well-known hydraulic components. In addition, it could provide a variety of connection options and bespoke configurations that can be adjusted to meet the needs of various clients and locales.
Parameter | |||
Brand： | shanzhong | Model： | SZ230 |
Engine Model： | 6BTAA5.9-C205 | Engine Power： | 153kw/2200rpm |
Weight： | 22500kg | Bucket Capacity： | 1.0-1.2m³ |
SIZE | |||
Shipping Length： | 9600mm | Boom Length： | 5700mm |
Shipping Height： | 3005mm | Arm Length： | 2900mm |
Overall Width： | 2990mm | Track Length： | 4440mm |
Turntable Width： | 2710mm | Gauge： | 2400mm |
Track Width： | 600mm | Landing Gear Height： | 2980mm |
Radius, Swing Center to Rear End： | 2794mm | Min width of Gyration： | 3560mm |
Counterweight ground clearance： | 1096mm | Min ground clearance： | 470mm |
Hydraulic Tank Volume： | 210L | Fuel Tank Volume： | 360L |
WORKING RANGE | |||
Max. Digging Radius： | 9873mm | Max. Digging Height： | 9616mm |
Max. Digging Depth： | 6592mm | Max. Dumping Height： | 6830mm |
Hydraulic system Work Pressure： | 32.34/34.3MPa | Hydraulic system Flow： | 2*212L/min |
Bucket digging force： | 146.4kn | Arm digging force： | 108kn |
Rotation Speed： | 0-10.7r/min | Travel Speed： | 5.9-3.2km/h |
Gradeability： | ≥70% | ||
