23 Ton China Crawler Excavator Factory

SZ230 Crawler Excavator Product Description

1)Original imported hydraulic system,soft movement,stable and durable

2)Sturdy Cabin structure,and the four-sided panoramic glass windows provide excellent safety in all-round vision,which greatly improves work efficiency.

3)Famous brand power system,strong horsepower,energy saving and environmental protection,adapt to the requirements of various working conditions


Contact Now E-Mail Telephone WhatsApp
Product Details

SZ230 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong.To assure the machine's entirety power and reserve, it uses a powerful yet fuel-efficient engine; a perfectly matching high-efficiency hydraulic system and axle box ensure the work.
Among its numerous claims to fame were "great dependability, authentic products, safety and preservation of the environment, comfort and convenience," and the hydraulic system of the whole machine is fitted with well-known hydraulic components. Additionally, it might provide an array of attachment options and bespoke configurations that can be modified to meet the needs of various clients and locations.
Additional attachments are available. large, roomy cabin with excellent visibility in all directions. Improved operator comfort because of ergonomic seat adjustments.

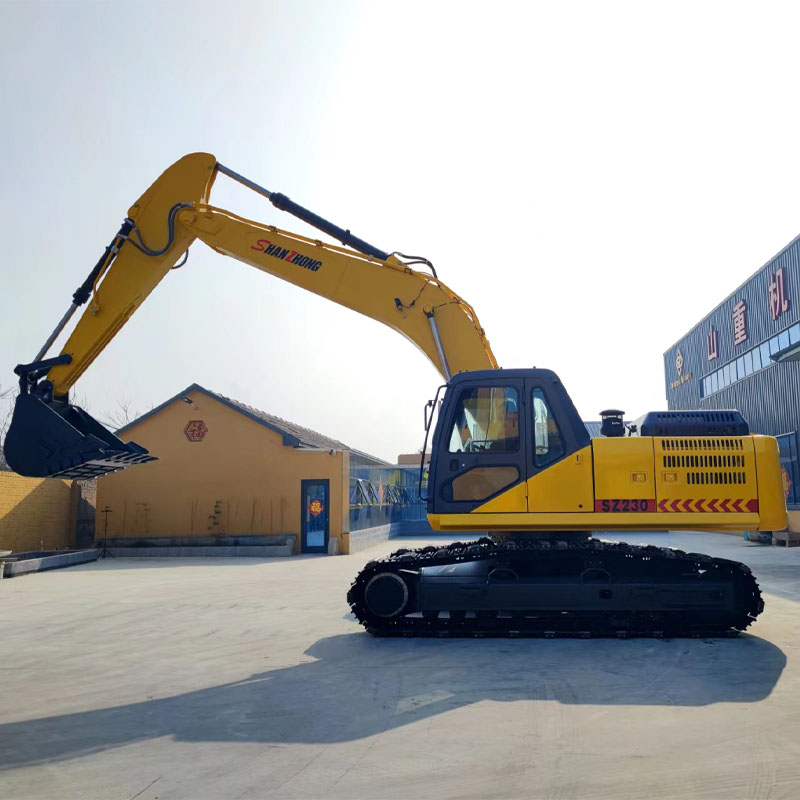

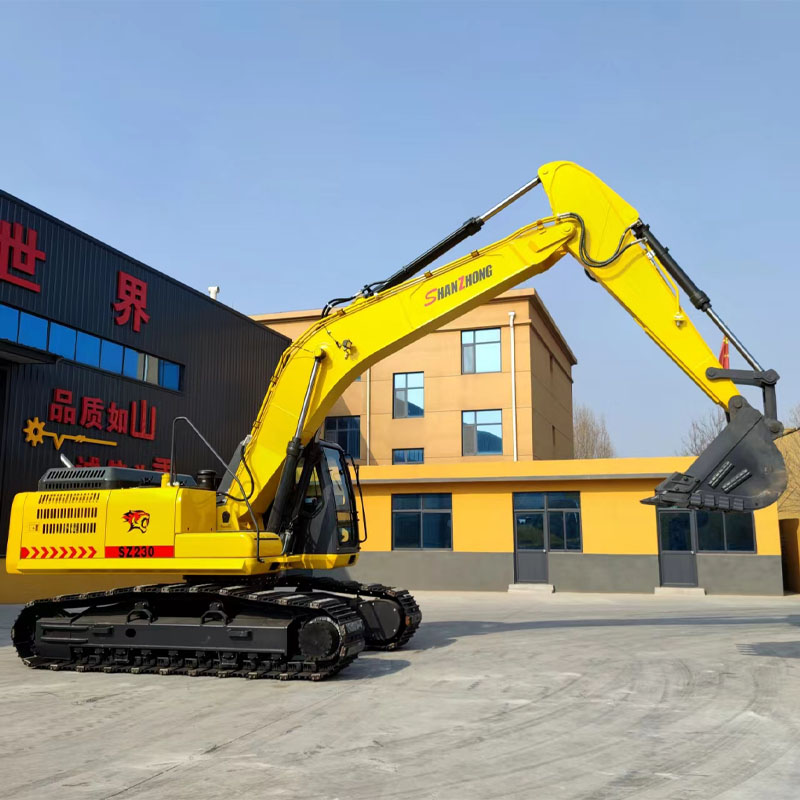

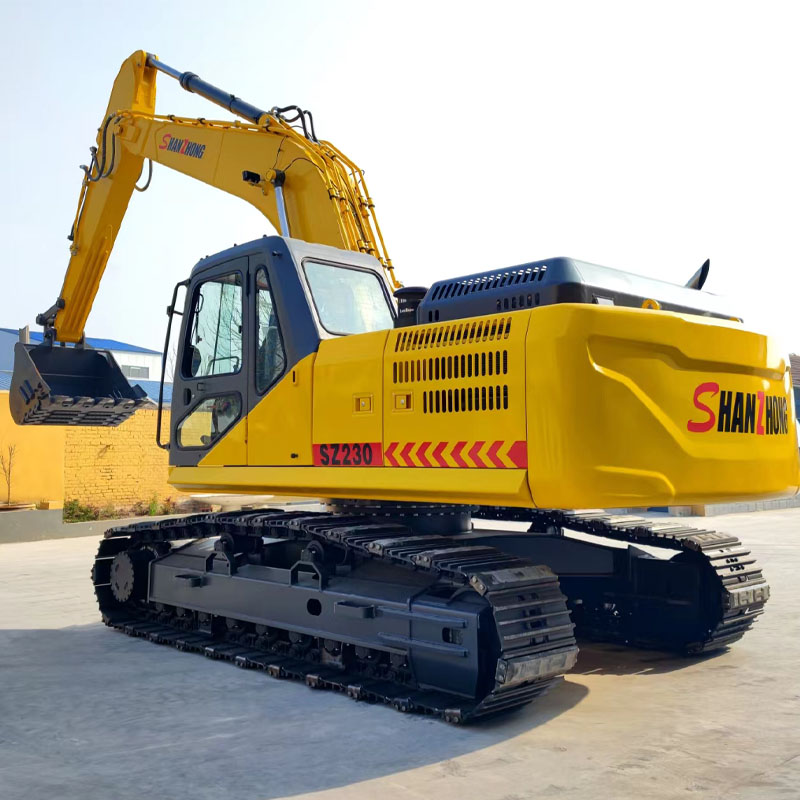

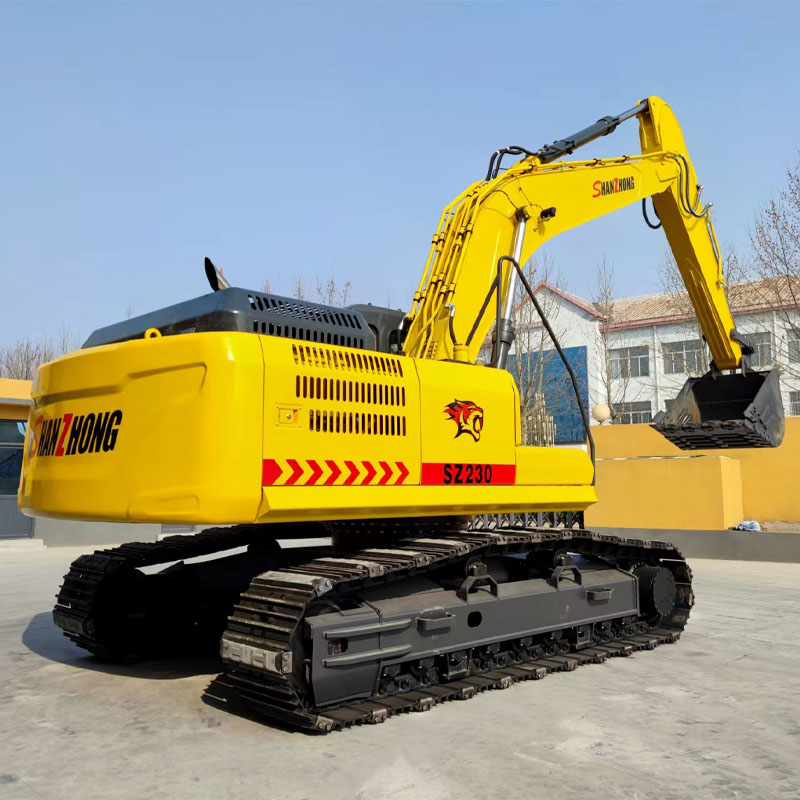

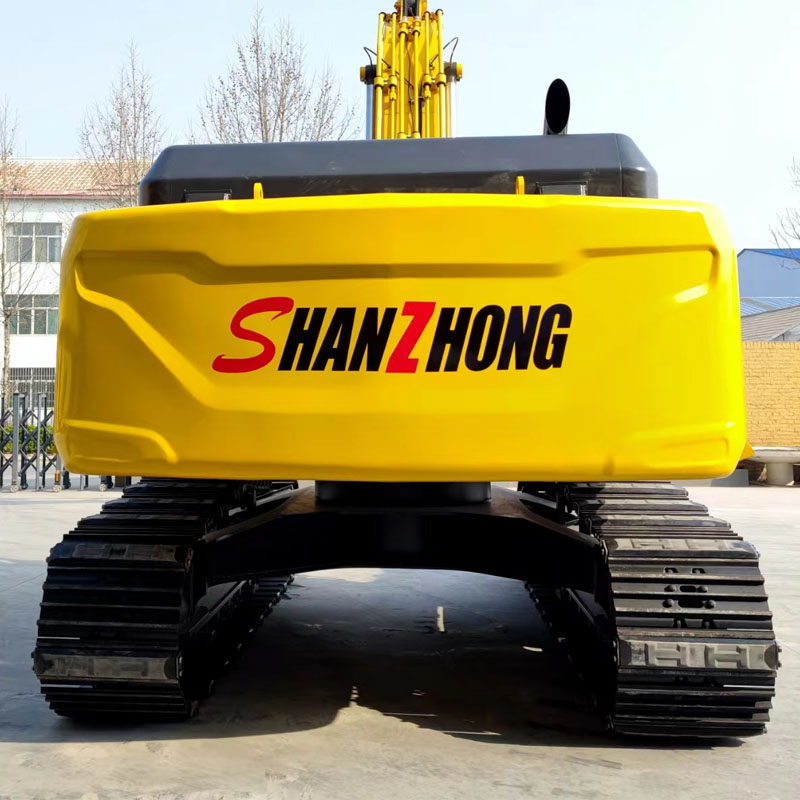

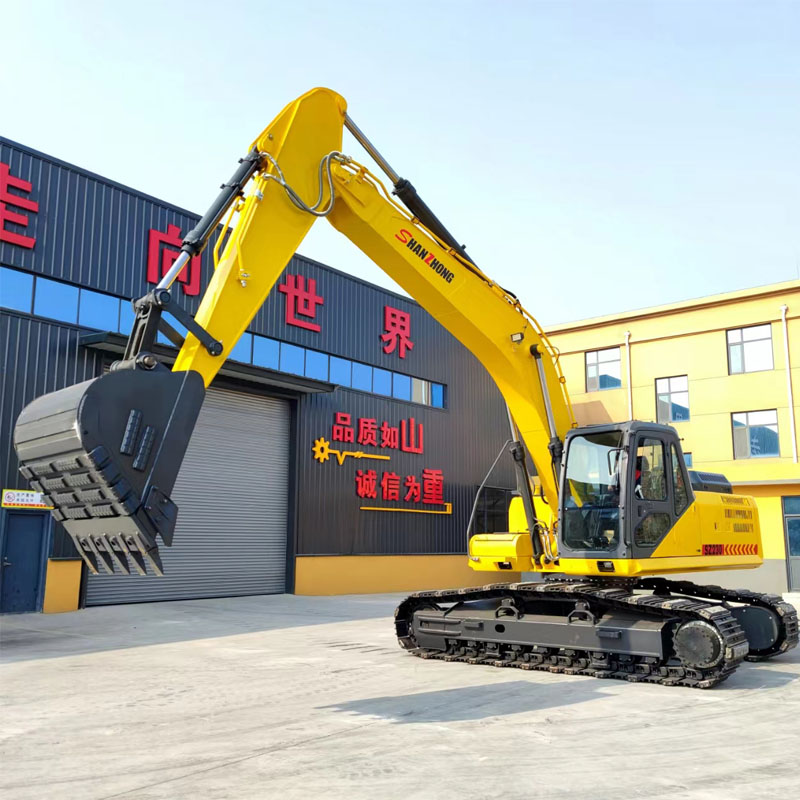

SZ230 Crawler Excavator


Parameter

Brand:

shanzhong

Model:

SZ230

Engine Model:

6BTAA5.9-C205

Engine Power:

153kw/2200rpm

Weight:

22500kg

Bucket Capacity:

1.0-1.2m³

尺寸规格

Shipping Length:

9600mm

Boom Length:

5700mm

Shipping Height:

3005mm

Arm Length:

2900mm

Overall Width:

2990mm

Track Length:

4440mm

Turntable Width:

2710mm

Gauge:

2400mm

Track Width:

600mm

Landing Gear Height:

2980mm

Radius, Swing Center to Rear End:

2794mm

Min width of Gyration:

3560mm

Counterweight ground clearance:

1096mm

Min ground clearance:

470mm

Hydraulic Tank Volume:

210L

Fuel Tank Volume:

360L

WORKING RANGE

Max. Digging Radius:

9873mm

Max. Digging Height:

9616mm

Max. Digging Depth:

6592mm

Max. Dumping Height:

6830mm

Hydraulic system Work Pressure:

32.34/34.3MPa

Hydraulic system Flow:

2*212L/min

Bucket digging force:

146.4kn

Arm digging force:

108kn

Rotation Speed:

0-10.7r/min

Travel Speed:

5.9-3.2km/h

Gradeability:

≥70%




SZ230 Crawler Excavator
