23 Ton Crawler Excavator With Standard Bucket

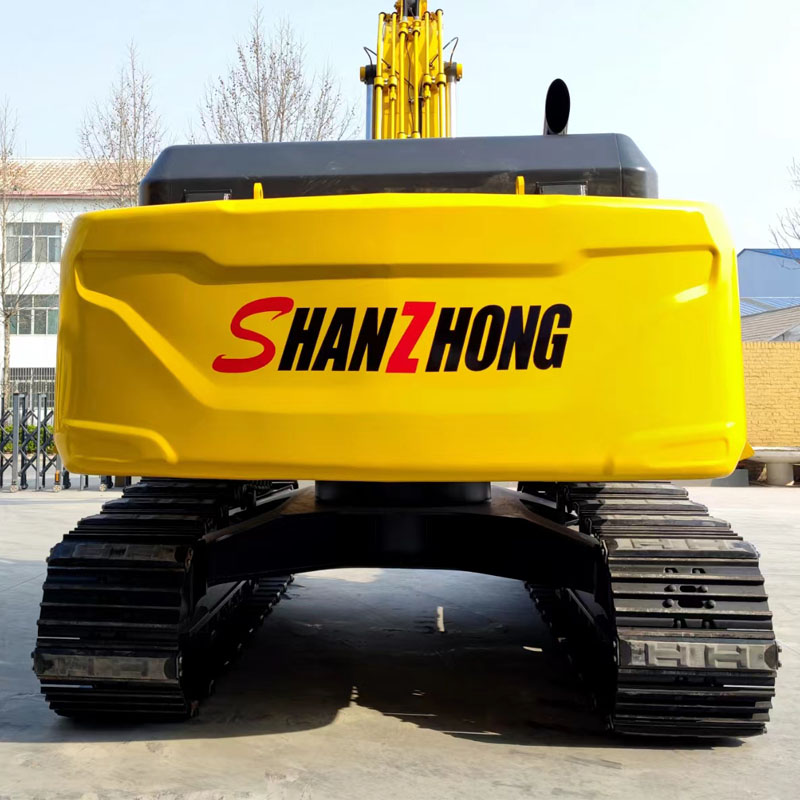

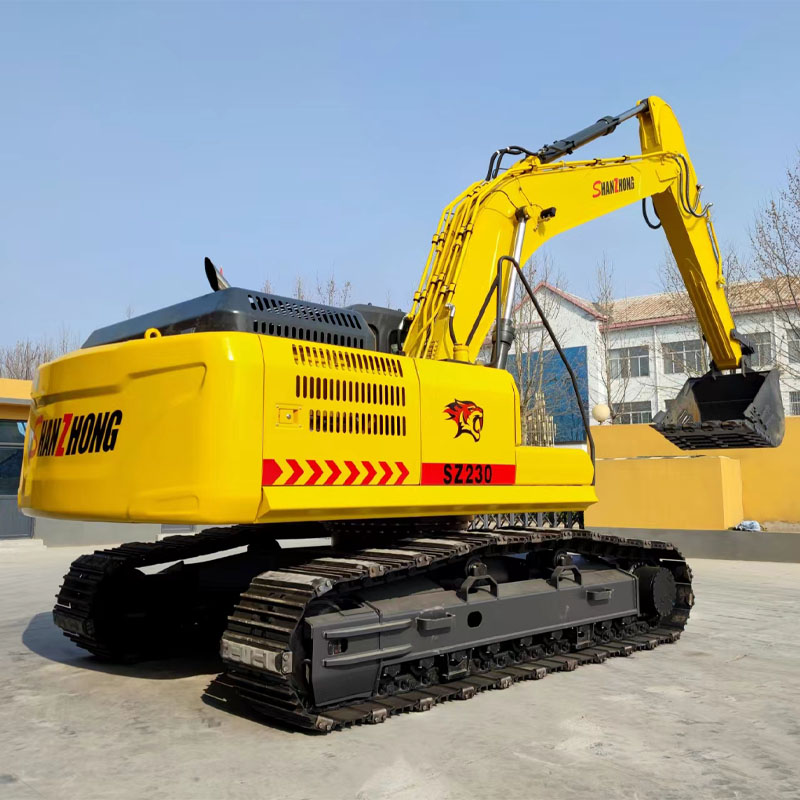

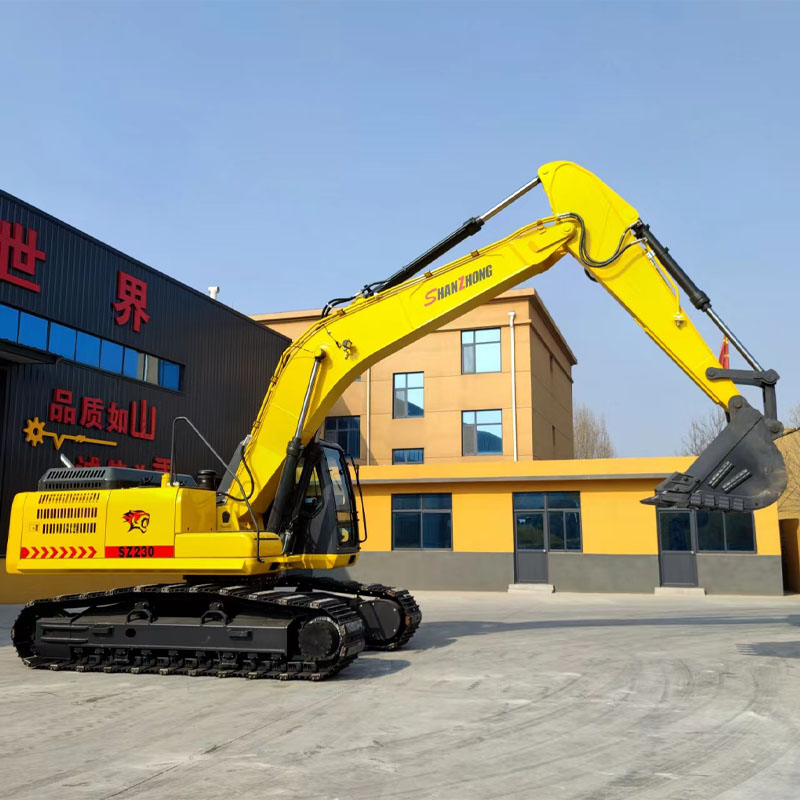

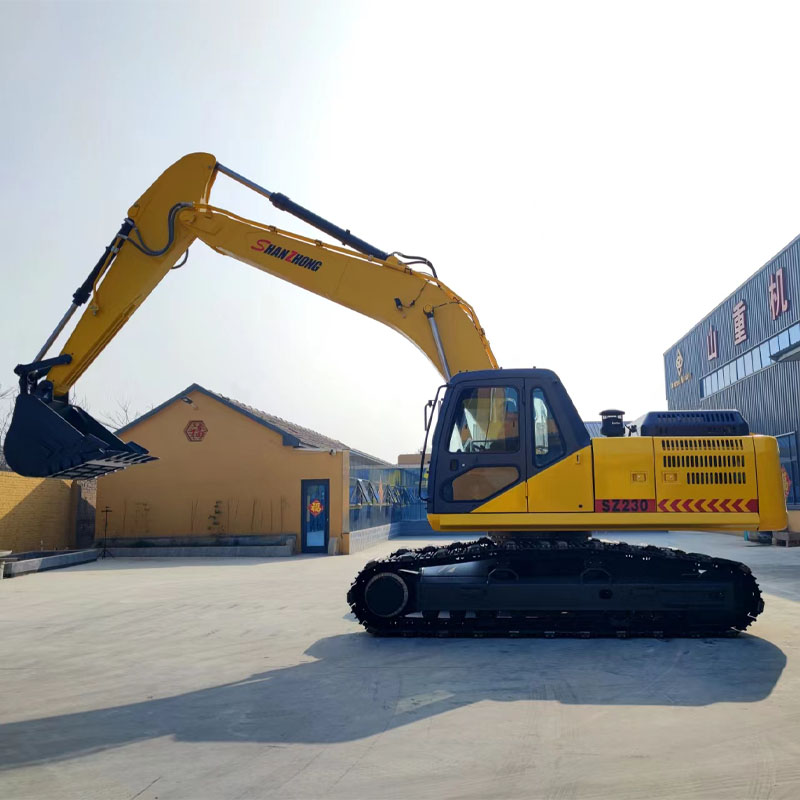

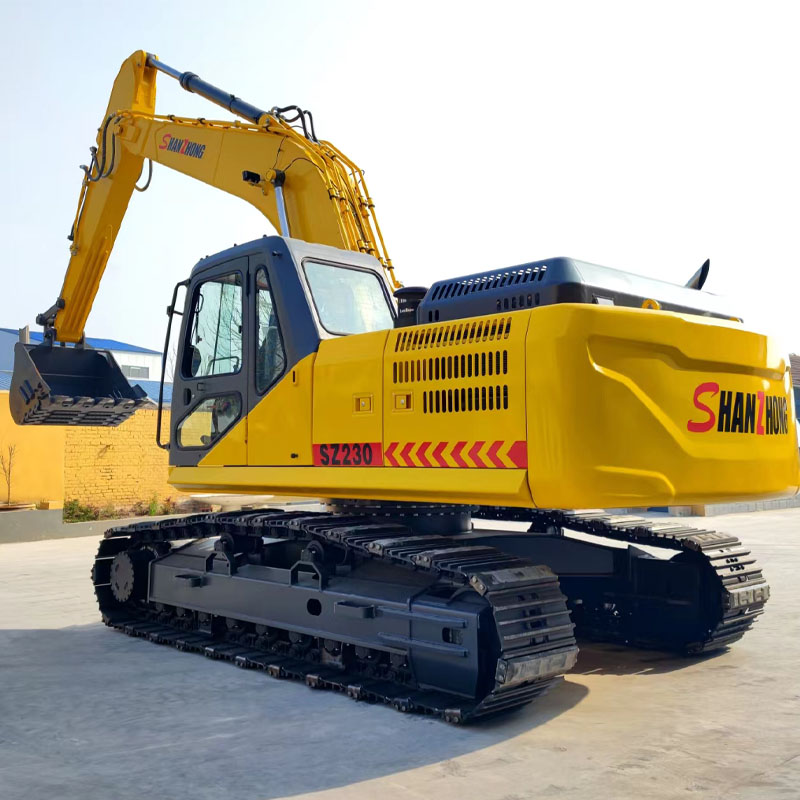

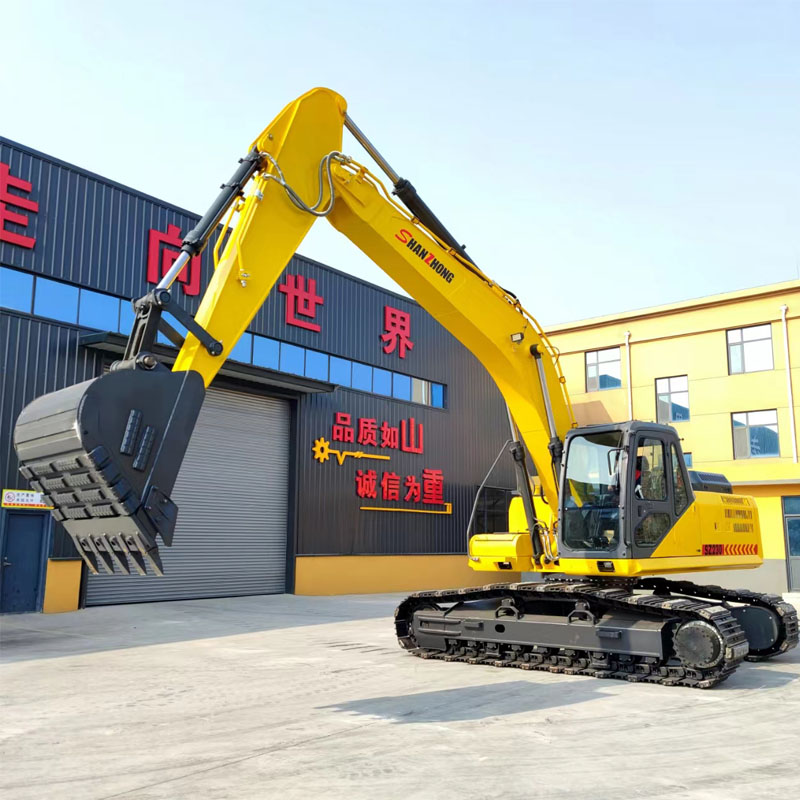

SZ230 Crawler Excavator Product Description
1)Original imported hydraulic system,soft movement,stable and durable
2)Sturdy Cabin structure,and the four-sided panoramic glass windows provide excellent safety in all-round vision,which greatly improves work efficiency.
3)Famous brand power system,strong horsepower,energy saving and environmental protection,adapt to the requirements of various working conditions
SZ230 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong.To assure the entire machine's a whole power and reserve, it uses a powerful while fuel-efficient engine; the perfect matched high-efficiency hydraulic system and axle box ensure the work.
Among its many assertions of fame are "great dependability, authentic products, safety and preservation of the environment, comfort and convenience," and the hydraulic system of this whole machine is equipped with well-known hydraulic components. In addition, it could supply a variety of attachment options and bespoke configurations that can be customized depending on the requirements of various clients and locales.
Additional attachments are available. large, roomy cabin with outstanding view in all directions. Higher operator comfort by means of ergonomic seat options.
Parameter | |||
Brand: | shanzhong | Model: | SZ230 |
Engine Model: | 6BTAA5.9-C205 | Engine Power: | 153kw/2200rpm |
Weight: | 22500kg | Bucket Capacity: | 1.0-1.2m³ |
尺寸规格 | |||
Shipping Length: | 9600mm | Boom Length: | 5700mm |
Shipping Height: | 3005mm | Arm Length: | 2900mm |
Overall Width: | 2990mm | Track Length: | 4440mm |
Turntable Width: | 2710mm | Gauge: | 2400mm |
Track Width: | 600mm | Landing Gear Height: | 2980mm |
Radius, Swing Center to Rear End: | 2794mm | Min width of Gyration: | 3560mm |
Counterweight ground clearance: | 1096mm | Min ground clearance: | 470mm |
Hydraulic Tank Volume: | 210L | Fuel Tank Volume: | 360L |
WORKING RANGE | |||
Max. Digging Radius: | 9873mm | Max. Digging Height: | 9616mm |
Max. Digging Depth: | 6592mm | Max. Dumping Height: | 6830mm |
Hydraulic system Work Pressure: | 32.34/34.3MPa | Hydraulic system Flow: | 2*212L/min |
Bucket digging force: | 146.4kn | Arm digging force: | 108kn |
Rotation Speed: | 0-10.7r/min | Travel Speed: | 5.9-3.2km/h |
Gradeability: | ≥70% |
