23 Ton Series Crawler Excavator

SZ230 Crawler Excavator Product Description

1)Original imported hydraulic system,soft movement,stable and durable

2)Sturdy Cabin structure,and the four-sided panoramic glass windows provide excellent safety in all-round vision,which greatly improves work efficiency.

3)Famous brand power system,strong horsepower,energy saving and environmental protection,adapt to the requirements of various working conditions

Contact Now E-Mail Telephone WhatsApp
Product Details

Shanzhong remains the independent developer of the SZ230 crawler excavator, a new generation of fully hydraulic crawler excavators. To assure both the machine's whole power and reserve, it utilizes a powerful but energy-effective engine; the perfect matched high-efficiency hydraulic system and axle box ensure the job is done.

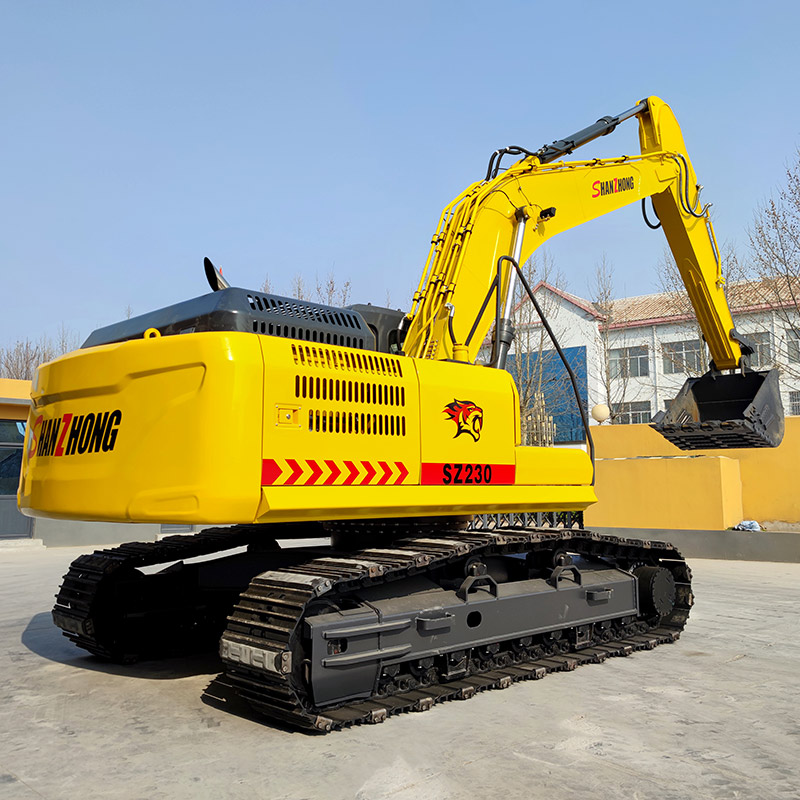

SZ230 Crawler Excavator

Among its numerous claims to renown are "great dependability, authentic products, safety and preservation of the environment, comfort and convenience," and the hydraulic system of the whole machine is equipped with well-known hydraulic components. Furthermore, it might offer an array of connection options and bespoke configurations that can be modified according to the requirements of various customers and locales.

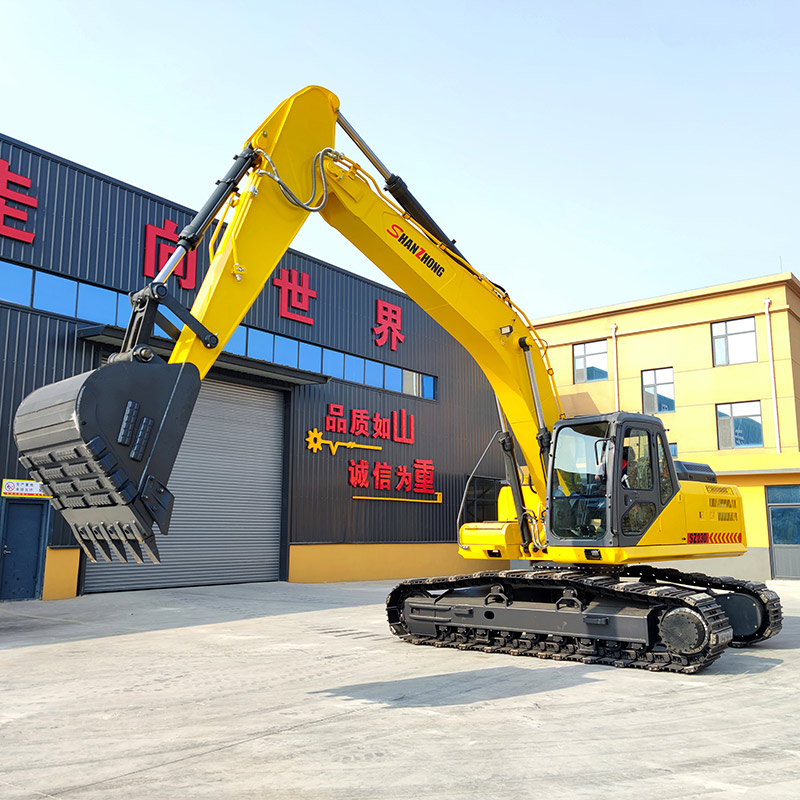

SZ230 Crawler Excavator


Additional documents are available. large and roomy cabin with excellent sight lines in all directions. More operator comfort thanks to ergonomic seat shifts.


Parameter

Brand:

shanzhong

Model:

SZ230

Engine Model:

6BTAA5.9-C205

Engine Power:

153kw/2200rpm

Weight:

22500kg

Bucket Capacity:

1.0-1.2m³

尺寸规格

Shipping Length:

9600mm

Boom Length:

5700mm

Shipping Height:

3005mm

Arm Length:

2900mm

Overall Width:

2990mm

Track Length:

4440mm

Turntable Width:

2710mm

Gauge:

2400mm

Track Width:

600mm

Landing Gear Height:

2980mm

Radius, Swing Center to Rear End:

2794mm

Min width of Gyration:

3560mm

Counterweight ground clearance:

1096mm

Min ground clearance:

470mm

Hydraulic Tank Volume:

210L

Fuel Tank Volume:

360L

WORKING RANGE

Max. Digging Radius:

9873mm

Max. Digging Height:

9616mm

Max. Digging Depth:

6592mm

Max. Dumping Height:

6830mm

Hydraulic system Work Pressure:

32.34/34.3MPa

Hydraulic system Flow:

2*212L/min

Bucket digging force:

146.4kn

Arm digging force:

108kn

Rotation Speed:

0-10.7r/min

Travel Speed:

5.9-3.2km/h

Gradeability:

≥70%

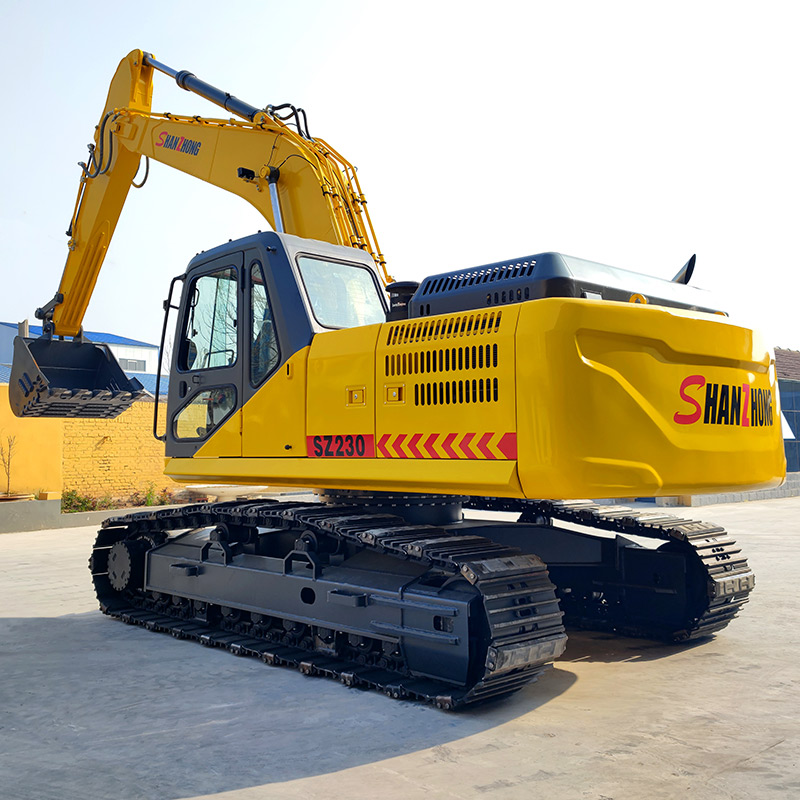

SZ230 Crawler Excavator
