25 Ton Crawler Type Excavator

SZ260 Crawler Excavator Product Description

1) For the design of reinforced work conditions, the excavation power is large and the adaptability is strong.

2) Load sensitivity system and well -known brand engine combination, more energy -saving and efficient.

3) Original imported hydraulic system. It is fast in accordance with the movement and the brakes are stable.

4) Standard anti -collision beams, enhance the design of large and large arm, greatly improve the service life.

5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.


Contact Now E-Mail Telephone WhatsApp
Product Details

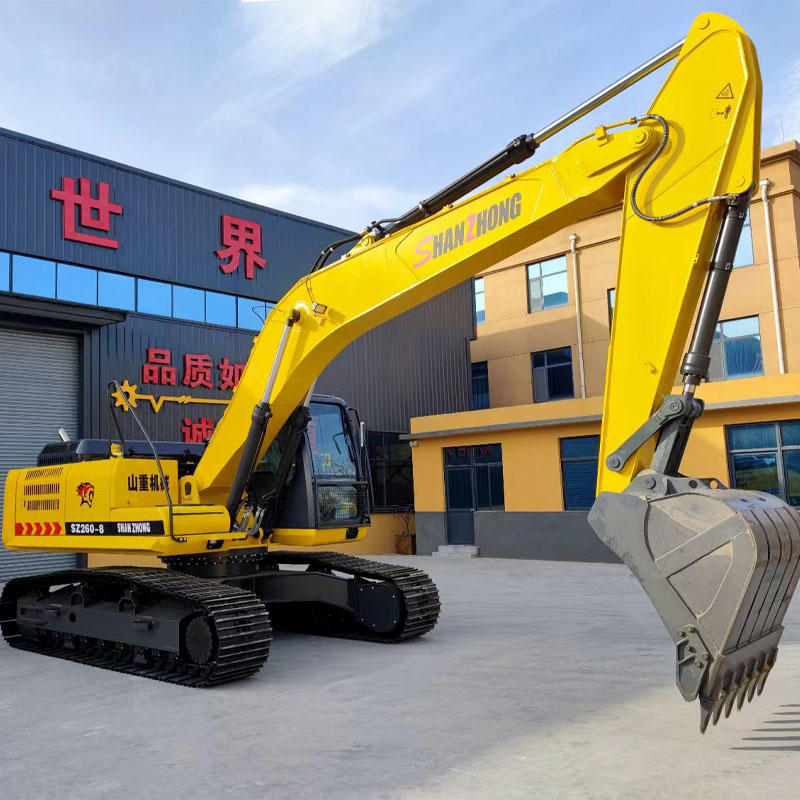

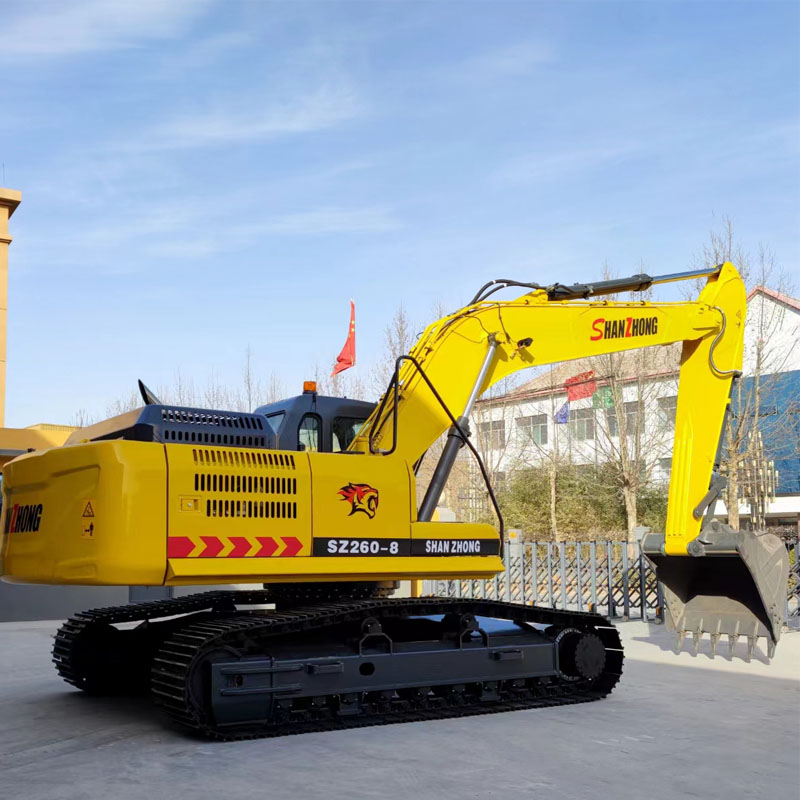

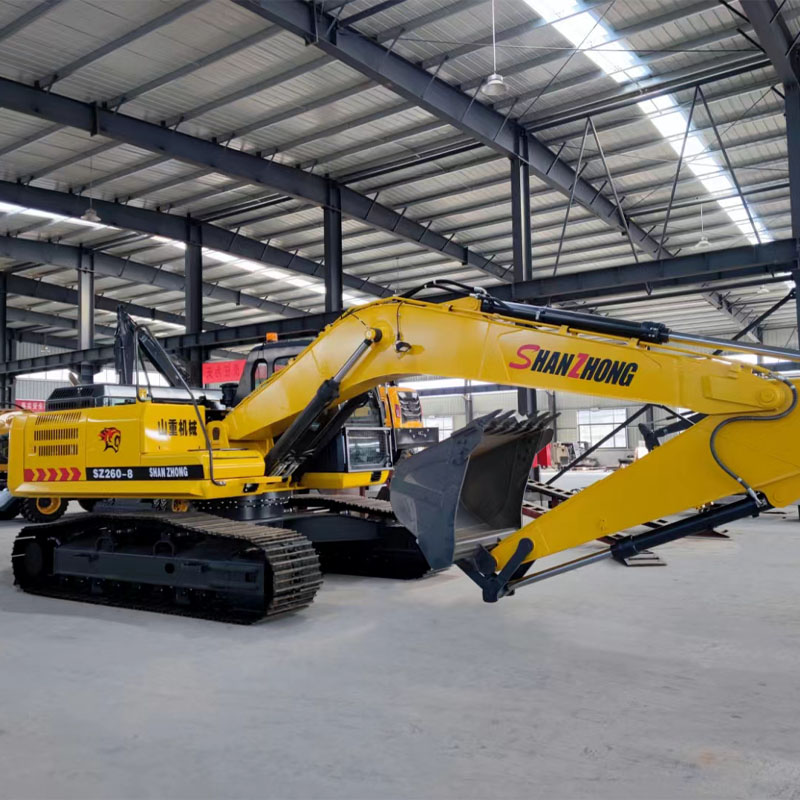

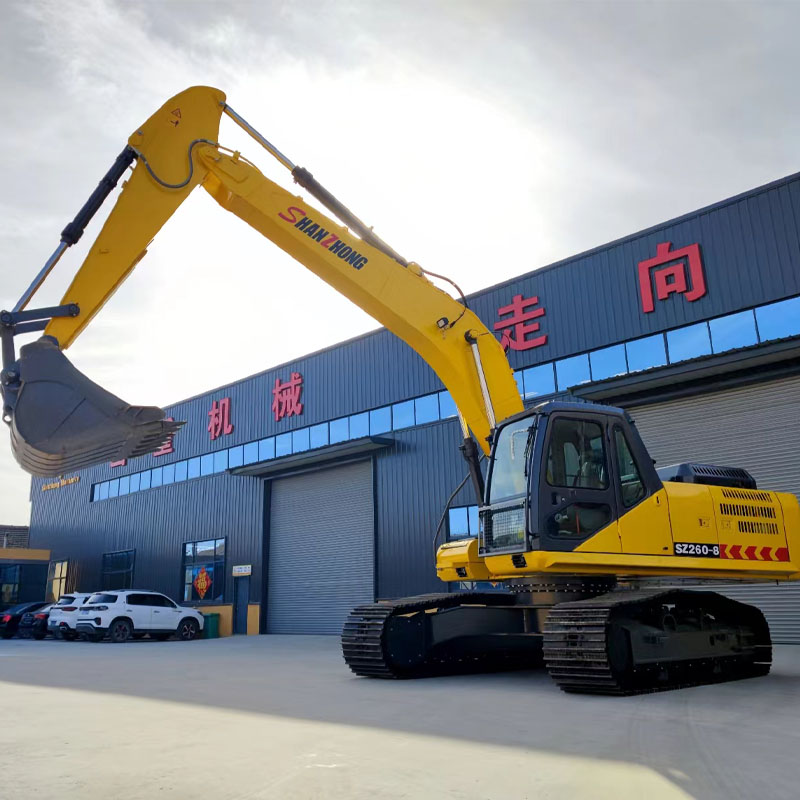

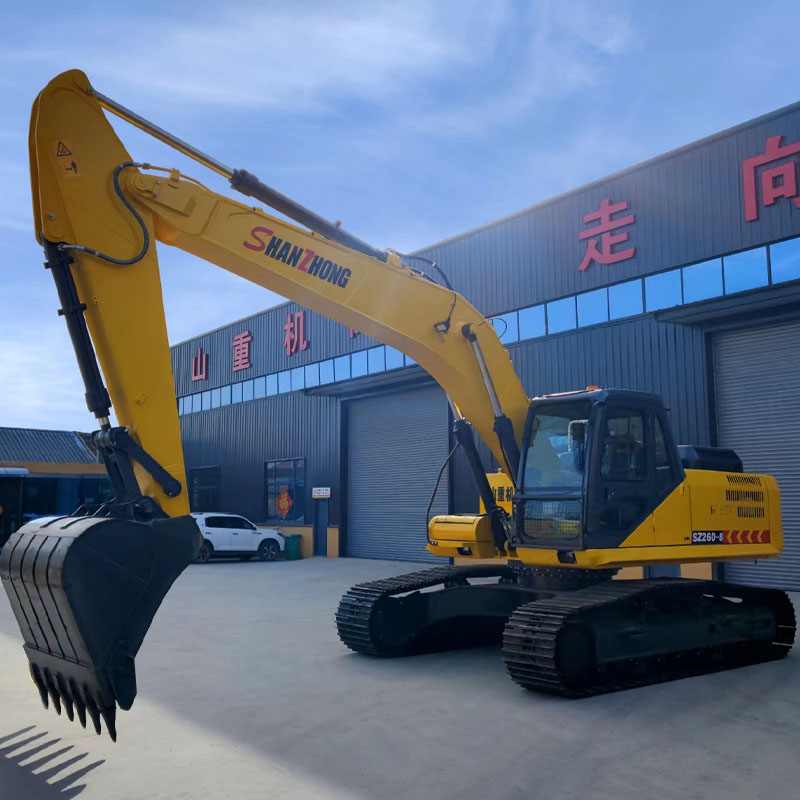

SZ260 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong.

Additionally to the advantages of "exceptional credibility, real items, safety and the preservation of the environment, comfort and convenience," the hydraulic system of the entire machine has been provided with widely recognized hydraulic supplies.

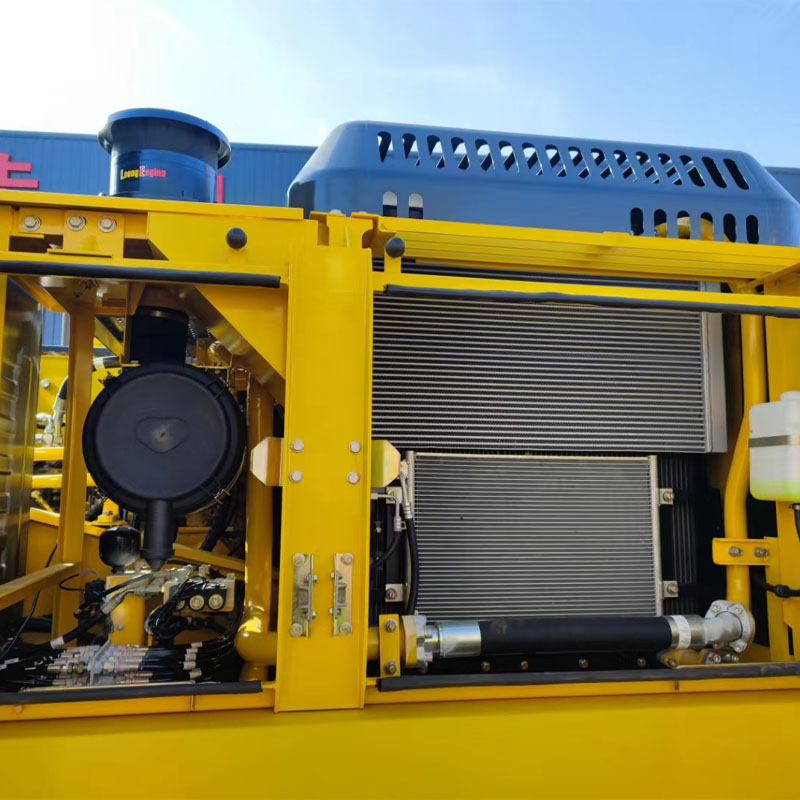

This machine employs a high-power, low-fuel engine so as to ensure the machinery's overall durability, power, and power reserve. To ensure the work, the axle box and high-efficiency hydraulic system had to be perfectly integrated.
Additionally, it may incorporate many adjustable configuration and attachment making choices functions that may be adjusted to meet the requirements associated with different geographical areas and clients.
In reality, there are multiple state partnerships accessible. Cabin that is cozy and spacious, with excellent visibility in every direction A redesign to an ergonomic seat will improve operator comfort.

SZ260 Crawler Excavator


Parameter

Brand:

shanzhong

Model:

SZ260

Engine Model:

6BTAA5.9-C205

Engine Power:

153kw/2200rpm

Weight:

25500kg

Bucket Capacity:

1.35m³

SIZE

Shipping Length:

10300mm

Boom Length

5900mm

Shipping Height:

3250mm

Arm Length

3000mm

Overall Width

3195mm

Track Length:

4450mm

Turntable Width

3045mm

Gauge

2590mm

Track Width

600mm

Landing Gear Height:

2980mm

Radius, Swing Center to Rear End

3105mm

Min width of Gyration

3880mm

Counterweight ground clearance

1096mm

Min ground clearance

470mm

Hydraulic Tank Volume

250L

Fuel Tank Volume

380L

WORKING RANGE

Max. Digging Radius

10225mm

Max. Digging Height

9756mm

Max. Digging Depth

6720mm

Max. Dumping Height

6830mm

Hydraulic system Work Pressure

32.34/34.3MPa

Hydraulic system Flow

2*230L/min

Bucket digging force

176.4kn

Arm digging force

126kn

Rotation Speed

0-10.7r/min

Travel Speed

5.4-3.4km/h

Gradeability

≥70%




SZ260 Crawler Excavator
