30 Ton Series Crawler Excavator

SZ300 Crawler Excavator Product Description

1) For the design of reinforced work conditions, the excavation power is large and the adaptability is strong.

2) Load sensitivity system and well -known brand engine combination, more energy -saving and efficient.

3) Original imported hydraulic system. It is fast in accordance with the movement and the brakes are stable.

4) Standard anti -collision beams, enhance the design of large and large arm, greatly improve the service life.

5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.


Contact Now E-Mail Telephone WhatsApp
Product Details

SZ300 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong.It uses an engine with great power and low fuel consumption to guarantee the machine's overall strength and power reserve; the precise matching of the high-efficiency hydraulic system and the axle box ensures the work.

The entire machine's hydraulic system is fitted with well-known hydraulic parts and boasts attributes like "great dependability, authentic products, safety and environmental preservation, comfort and convenience," among others. Simultaneously, it may offer an array of customized configuration and attachment choices that can be tailored to meet the needs of various regions and customers.

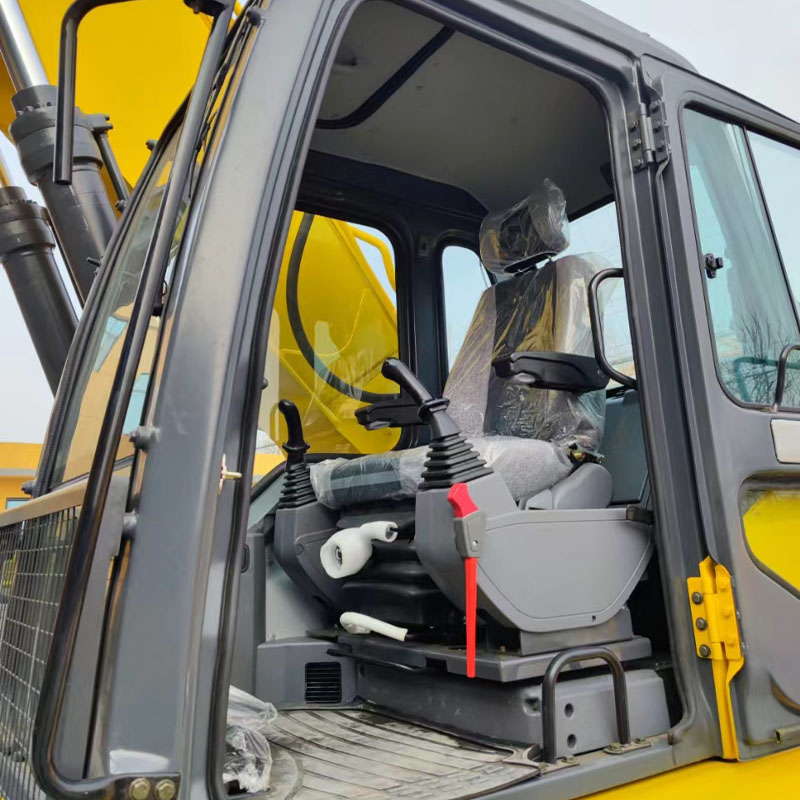

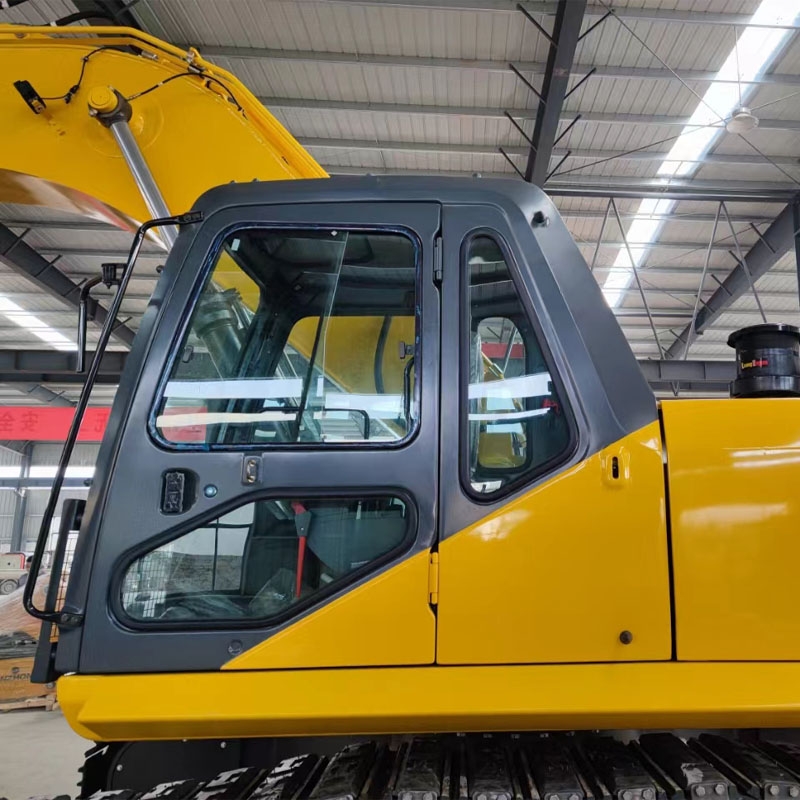

There are several attachments available. Comfortable and roomy cab with outstanding vision in every direction.Ergonomic seat upgrade for increased operator comfort.

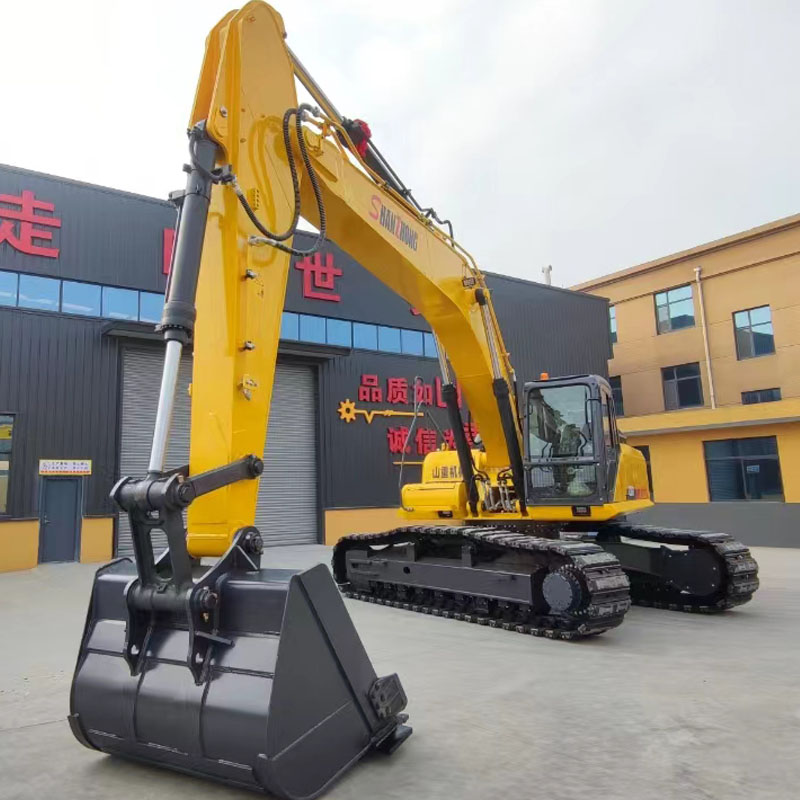

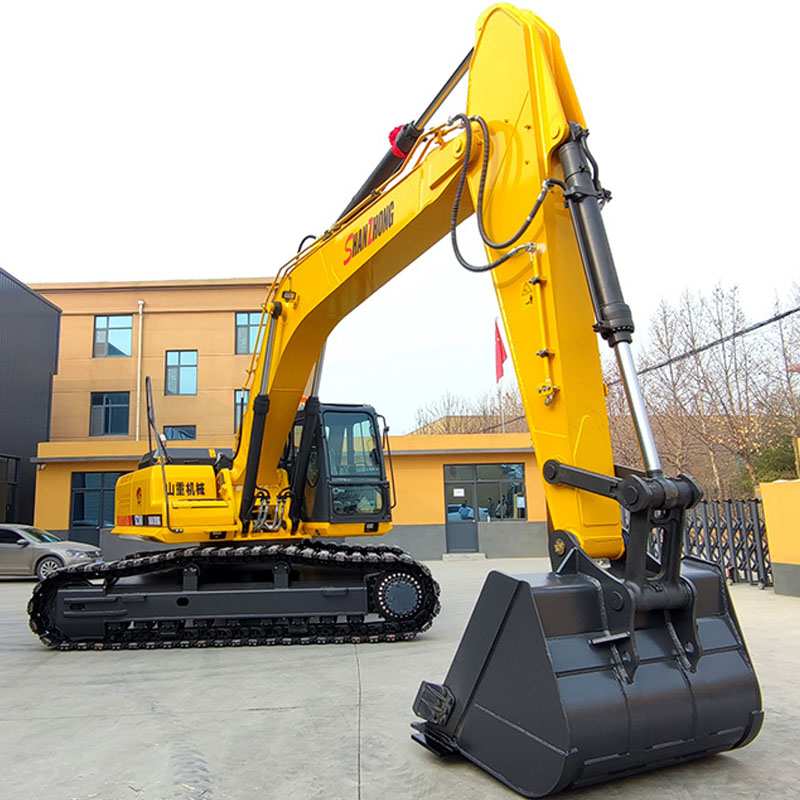

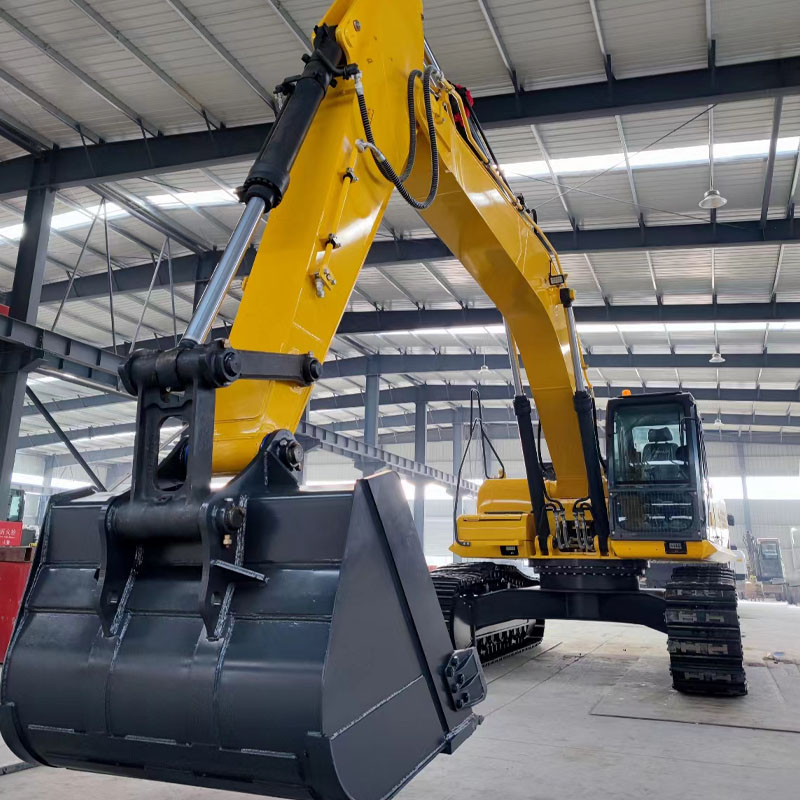

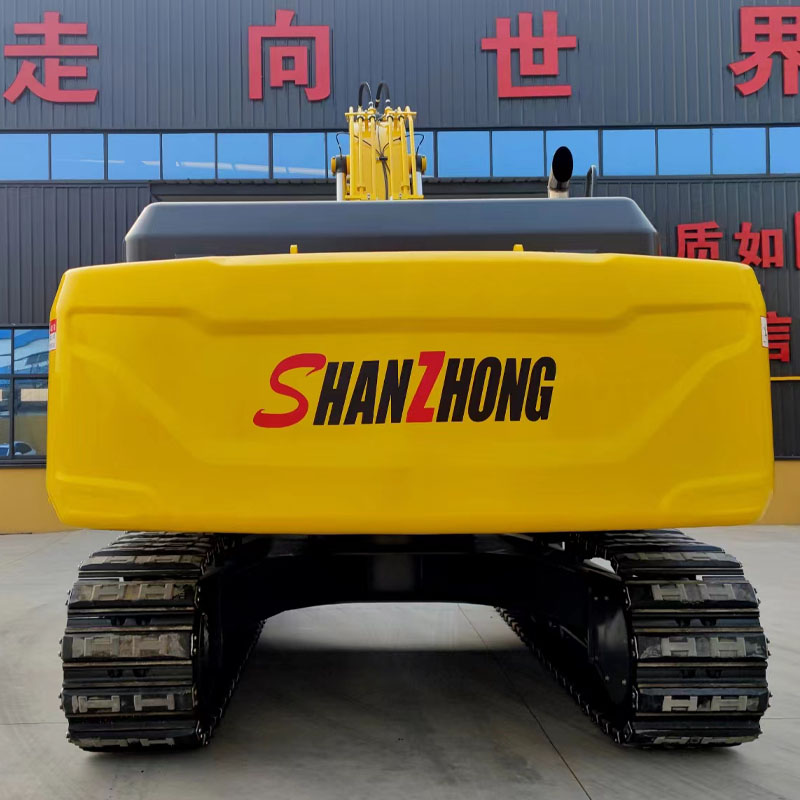

SZ300 Crawler Excavator

Parameter

 Brand:

shanzhong

 Model:

SZ300

 Engine Model:

CUMMINS QSB7

Engine Power:

169kw/2200rpm

Weight:

28500kg

Bucket Capacity:

1.45m³

 SIZE

 Shipping Length:

10300mm

Boom Length

6245mm

 Shipping Height:

3000mm

Arm Length

3100mm

Overall Width

3200mm

Track Length:

4650mm

Turntable Width

2960mm

Gauge

2600mm

Track Width

600mm

 Landing Gear Height:

3200mm

Radius, Swing Center to Rear End

3185mm

Min width of Gyration

4019mm

Counterweight  ground clearance



1110mm

Min ground clearance



480mm

Hydraulic Tank Volume

330L

Fuel Tank Volume

460L

 WORKING RANGE

 Max.Digging Radius

10250mm

Max.Digging Height

9756mm

Max. Digging Depth

7080mm

Max.Dumping Height

7030mm

Hydraulic system Work Pressure

32.34/34.3MPa

Hydraulic system Flow

2*248L/min

Bucket digging force

199.8kn

Arm digging force

176kn

Rotation Speed

0-10.2r/min

Travel Speed

5.4-3.6km/h

Gradeability

≥70%

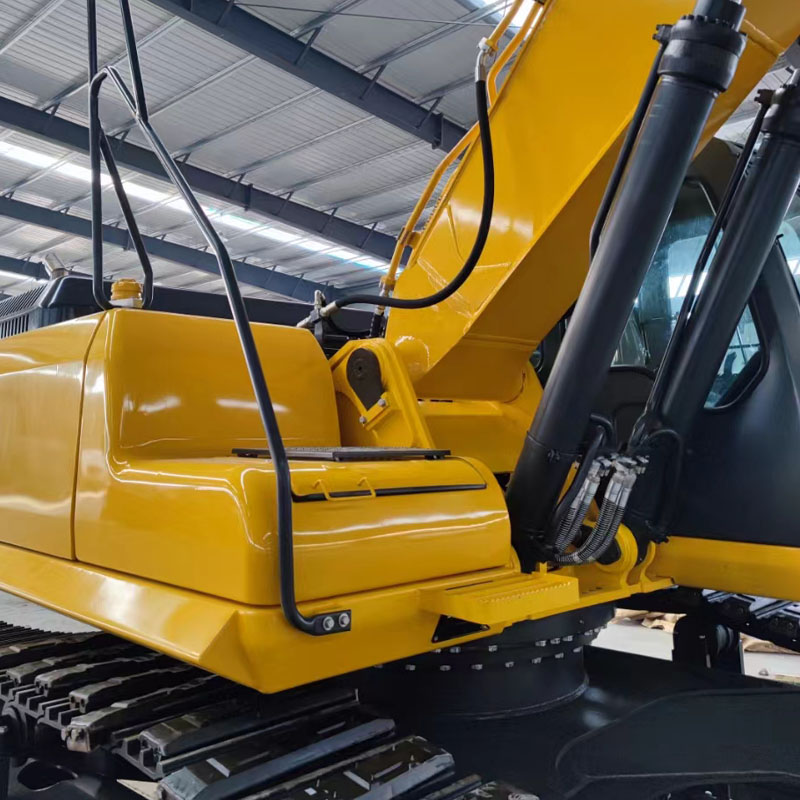

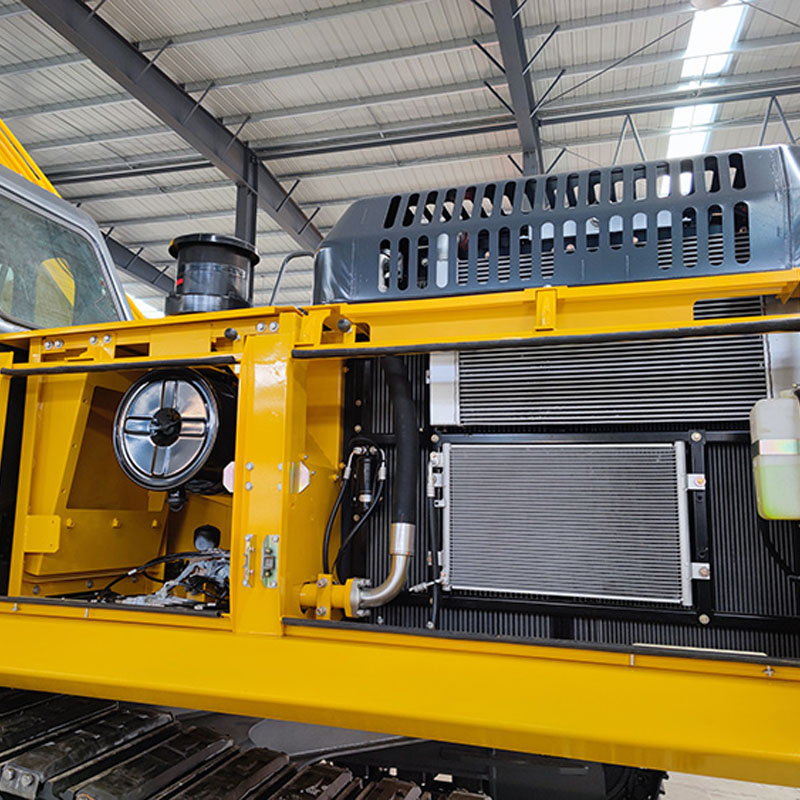

SZ300 Crawler Excavator

SZ300 Crawler Excavator
