30ton Crawler Excavators

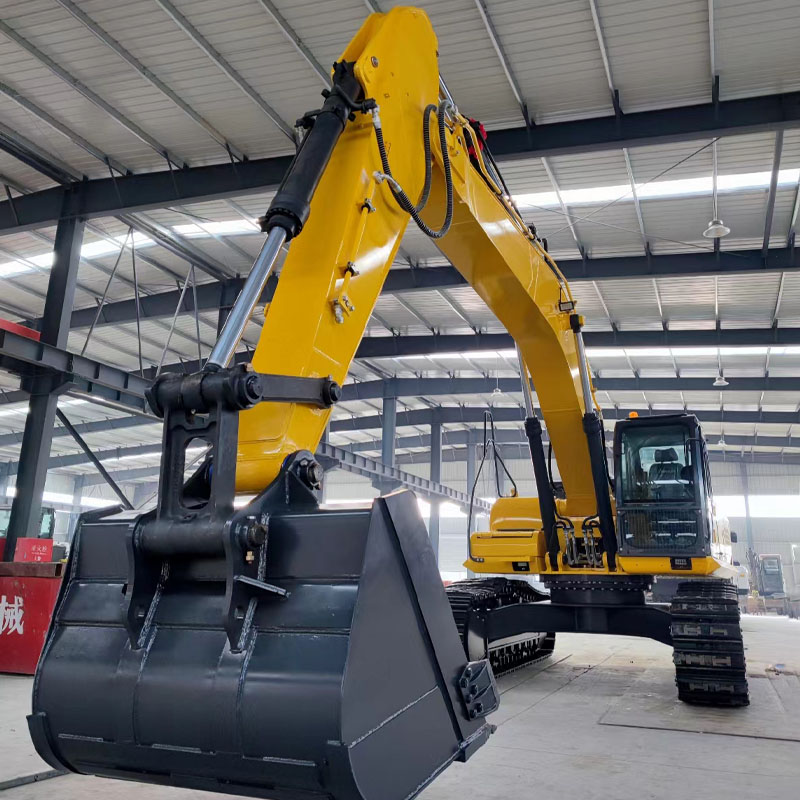

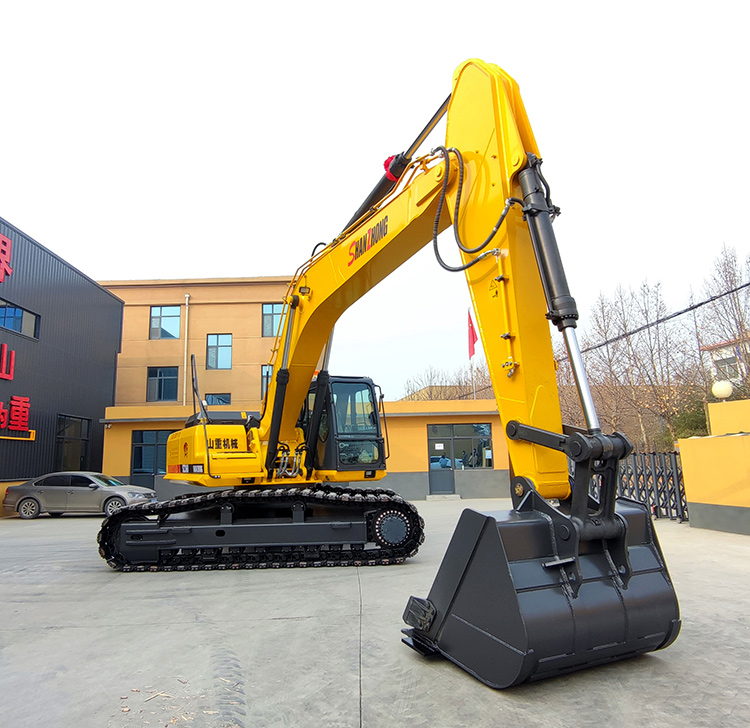

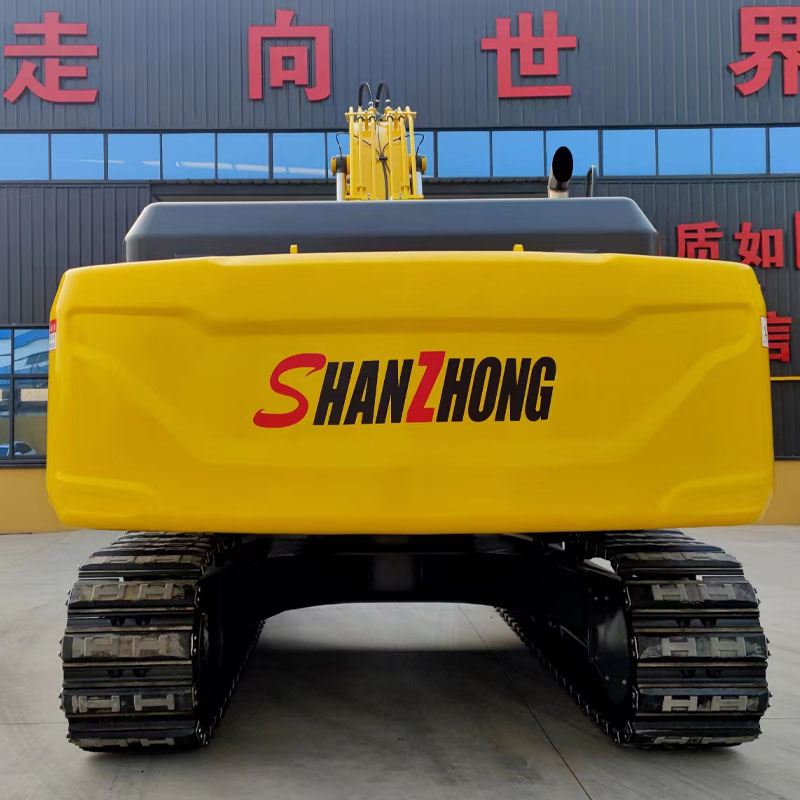

SZ300 Crawler Excavator Product Description
1) For the design of reinforced work conditions, the excavation power is large and the adaptability is strong.
2) Load sensitivity system and well -known brand engine combination, more energy -saving and efficient.
3) Original imported hydraulic system. It is fast in accordance with the movement and the brakes are stable.
4) Standard anti -collision beams, enhance the design of large and large arm, greatly improve the service life.
5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.
6) Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong is the independent developer of the SZ300 crawler excavator, a new generation of fully hydraulic crawler excavators.The machine's total strength and power reserve are guaranteed by the powerful yet fuel-efficient engine; the high-efficiency hydraulic system and axle box precisely match to accomplish the job.
Well-known hydraulic components make up the machine's full hydraulic system, which is praised for its "great dependability, authentic products, safety and environmental preservation, comfort and convenience," among other qualities. It may simultaneously provide a wide range of personalized configuration and attachment options that may be adjusted to fit the requirements of different geographical areas and clients.

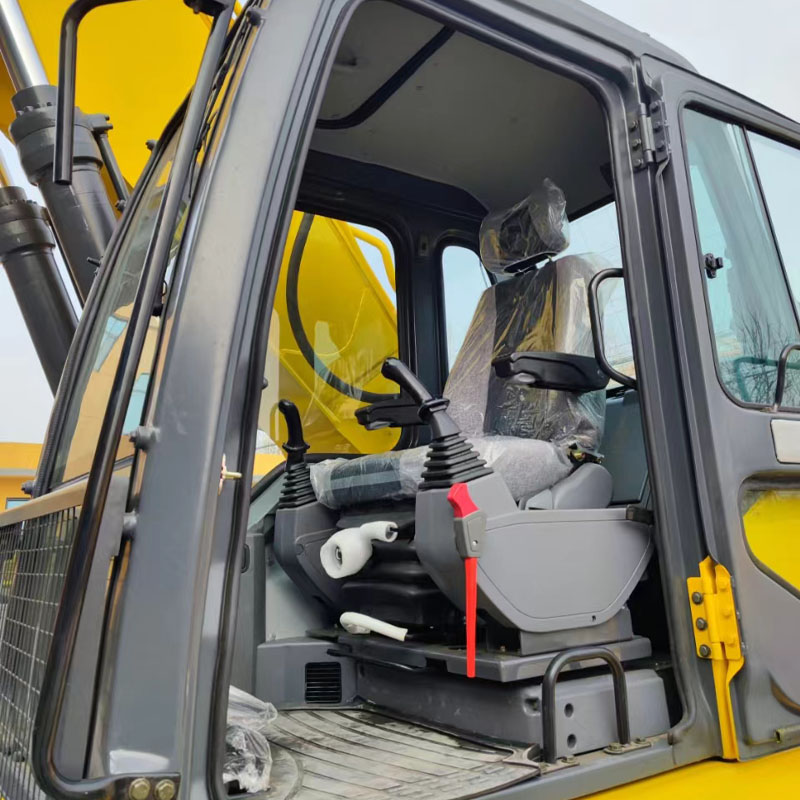

Multiple attachments are accessible. spacious and comfortable cabin with excellent visibility in all directions.An improvement to an ergonomic seat will improve operator comfort.
Parameter | ||||||
Brand: | shanzhong | Model: | SZ300 | |||
Engine Model: | CUMMINS QSB7 | Engine Power: | 169kw/2200rpm | |||
Weight: | 28500kg | Bucket Capacity: | 1.45m³ | |||
SIZE | ||||||
Shipping Length: | 10300mm | Boom Length | 6245mm | |||
Shipping Height: | 3000mm | Arm Length | 3100mm | |||
Overall Width | 3200mm | Track Length: | 4650mm | |||
Turntable Width | 2960mm | Gauge | 2600mm | |||
Track Width | 600mm | Landing Gear Height: | 3200mm | |||
Radius, Swing Center to Rear End | 3185mm | Min width of Gyration | 4019mm | |||
Counterweight ground clearance |
1110mm | Min ground clearance |
480mm | |||
Hydraulic Tank Volume | 330L | Fuel Tank Volume | 460L | |||
WORKING RANGE | ||||||
Max.Digging Radius | 10250mm | Max.Digging Height | 9756mm | |||
Max. Digging Depth | 7080mm | Max.Dumping Height | 7030mm | |||
Hydraulic system Work Pressure | 32.34/34.3MPa | Hydraulic system Flow | 2*248L/min | |||
Bucket digging force | 199.8kn | Arm digging force | 176kn | |||
Rotation Speed | 0-10.2r/min | Travel Speed | 5.4-3.6km/h | |||
Gradeability | ≥70% |
