35 Ton Crawler Type Excavator

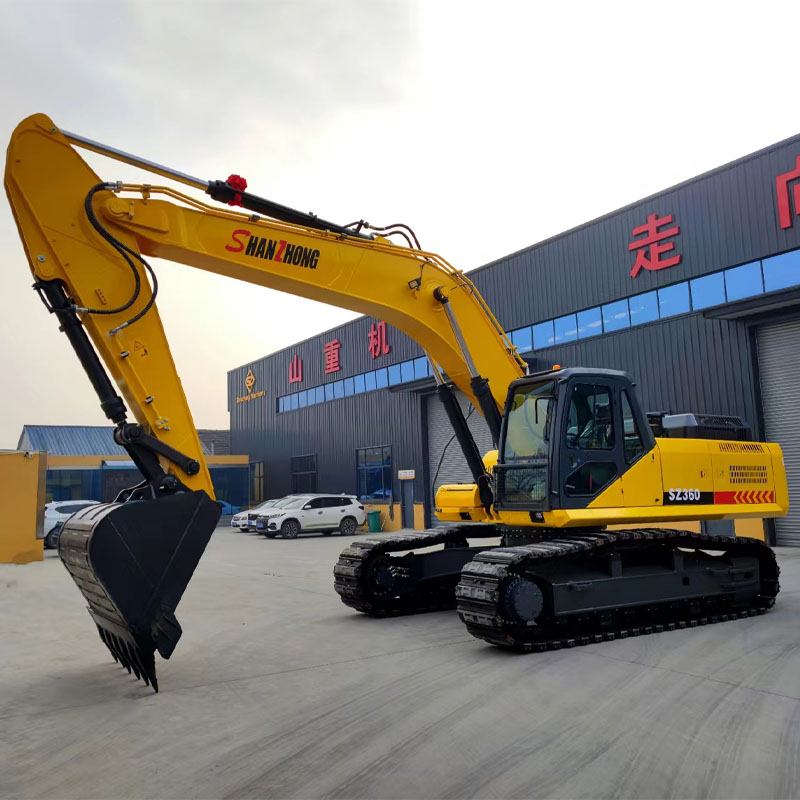

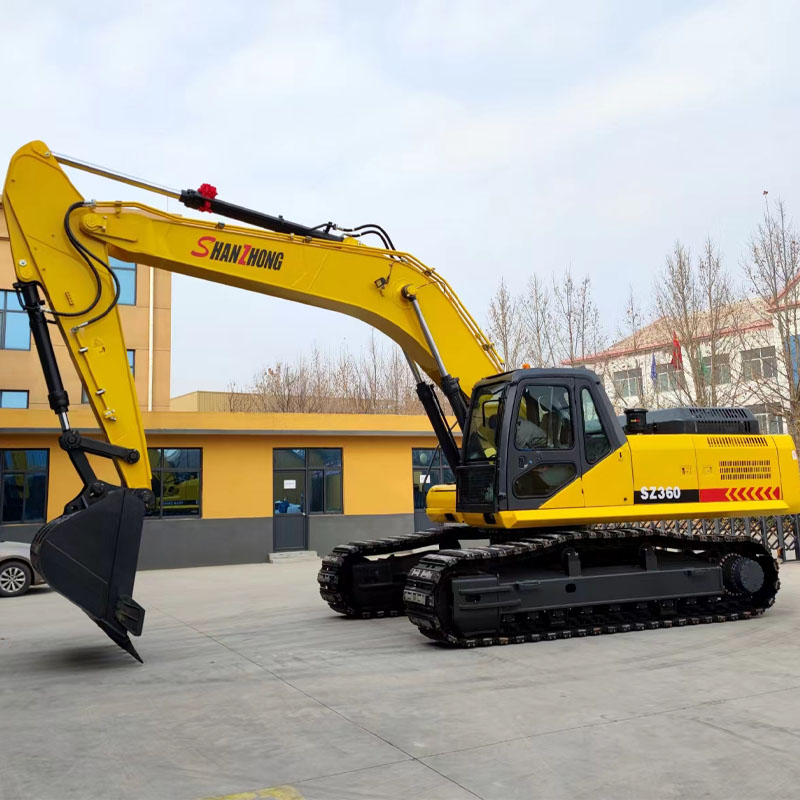

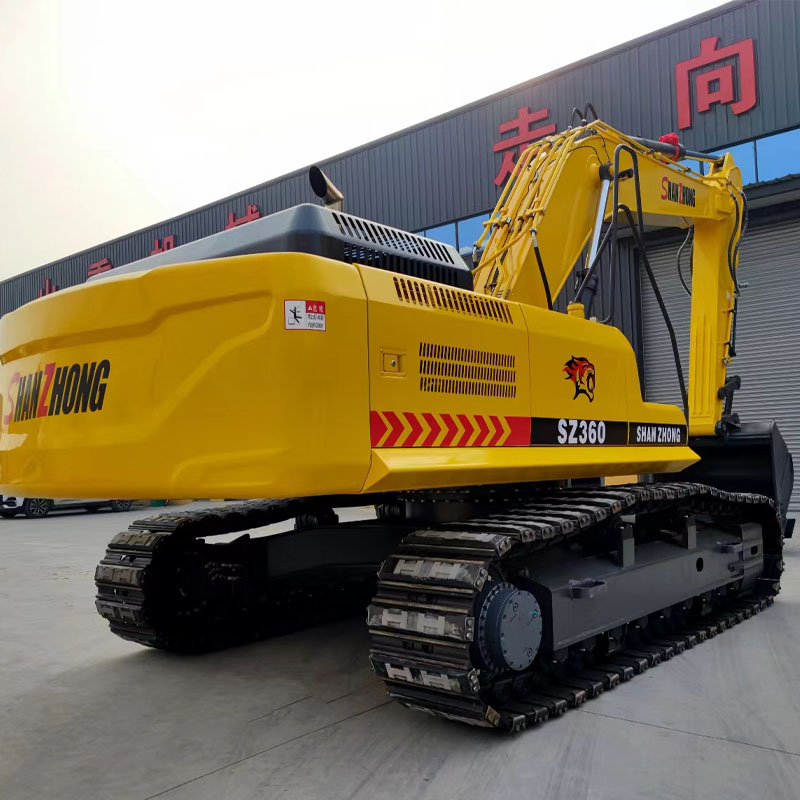

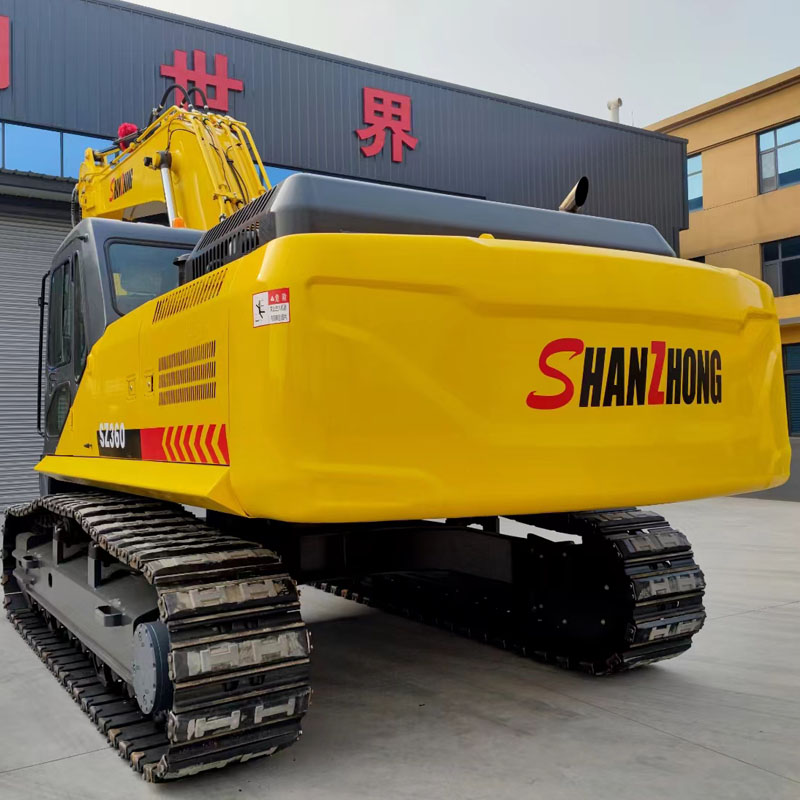

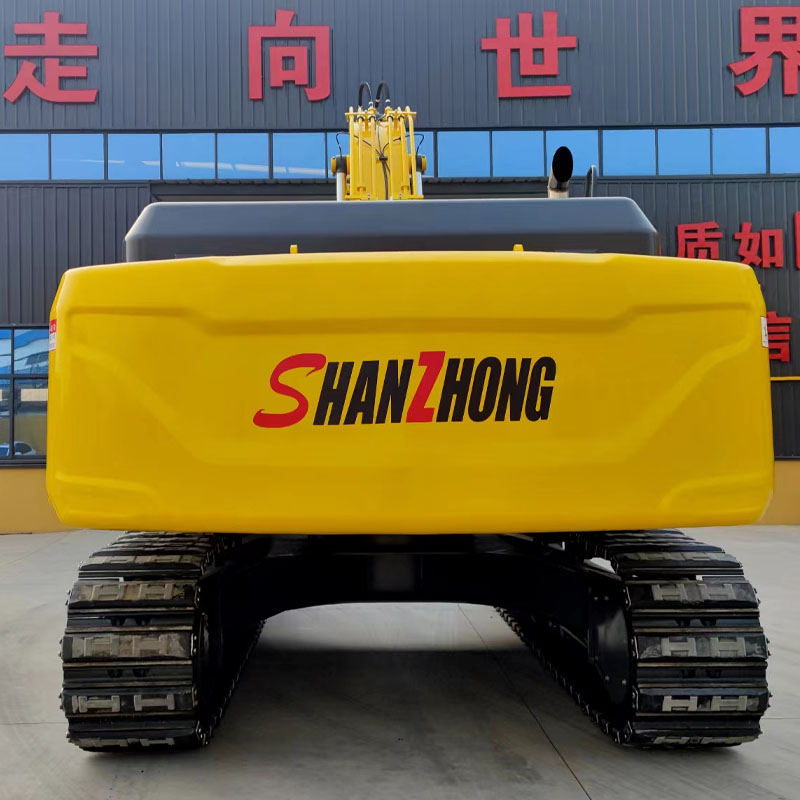

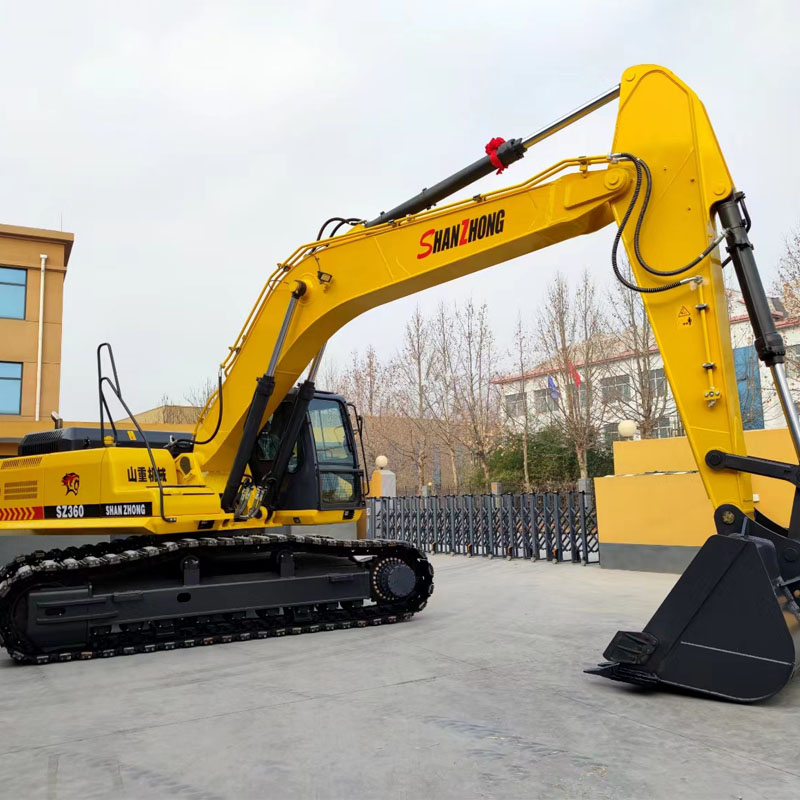

SZ360 Crawler Excavator Product Description
1) The application range is wide, good stability, and the movement is smooth and fast. It is a car loading weapon.
2) Designed for mines and large -scale local customers, high operating efficiency and low fuel consumption.
3) Original imported hydraulic system. The movement is flexible, the speed is fast, and the rotation brakes steadily.
4) Strengthen the design of large -scale arm, greatly improve the service life.
5) The powerful vehicle operation performance, excellent operating stability, the vehicle is durable.
6) Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong is the independent developer of the SZ360 crawler excavator, a new generation of fully hydraulic huge crawler excavators. The crawler excavator is a reasonably priced huge excavator that features an engine that is powerful yet energy-efficient and environmentally safe. In order to assure maximum working efficiency, the machine is outfitted with a hydraulic servo pilot controlling system, hydraulic oil radiator, and a motor, valves, and main pump from a globally renowned Korean supplier. The machine's dependability and robustness are ensured by the properly bonded sections of the frame and operating mechanism. In the opulent closed cabin, A/C, an LCD screen, an LED lamp, and other comforts were installed. Because of its humanized design, the machine can function easily and requires little maintenance in any kind of working environment.
Parameter | |||
Brand： | shanzhong | Model： | SZ360 |
Engine Model： | CUMMINS | Engine Power： | 241kw/2000rpm |
Weight： | 32000kg | Bucket Capacity： | 1.8m³ |
尺寸规格 | |||
Shipping Length： | 10815mm | Boom Length： | 6245mm |
Shipping Height： | 3515mm | Arm Length： | 3750mm |
Overall Width： | 3200mm | Track Length： | 4940mm |
Turntable Width： | 3280mm | Gauge： | 2600mm |
Track Width： | 600mm | Landing Gear Height： | 3200mm |
Radius, Swing Center to Rear End： | 3195mm | Min width of Gyration： | 4055mm |
Counterweight ground clearance： | 1150mm | Min ground clearance： | 500mm |
Hydraulic Tank Volume： | 280L | Fuel Tank Volume： | 500L |
WORKING RANGE | |||
Max. Digging Radius： | 10705mm | Max. Digging Height： | 10315mm |
Max. Digging Depth： | 7250mm | Max. Dumping Height： | 7303mm |
Hydraulic system Work Pressure： | 32.34/34.3MPa | Hydraulic system Flow： | 2*280L/min |
Bucket digging force： | 188/199.9kn | Arm digging force： | 145kn |
Rotation Speed： | 0-10.5r/min | Travel Speed： | 5.8-3.4km/h |
Gradeability： | ≥70% | ||
