4 Ton China Wheel Excavator Factory
SZL40 Wheel Excavator Product Description
1) Single -row tire design, suitable for small spaces and community operations.
2) Robot welding ensure the processing accuracy and quality reliability of the structural parts.
3) The combination of engine and load sensitive main valve is more energy -saving and efficient.
4) Schedule automatic transmission automatic transmission, strong torque adaptability is stronger.
4) Adopt a stable box -type welding structure to strengthen the large arm and greatly improve the service life.

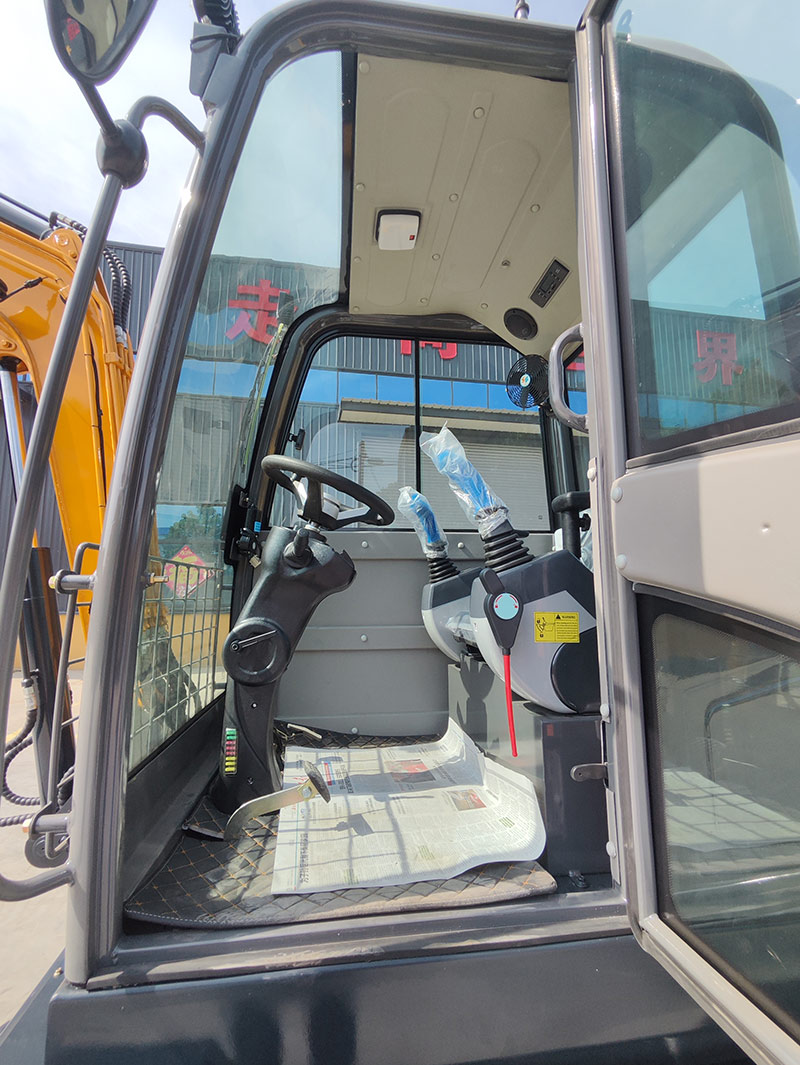

5) Panorama cab, intelligent operating system, and fire equipment.
6) Customized production can be provided to meet the needs of special construction and bidding.

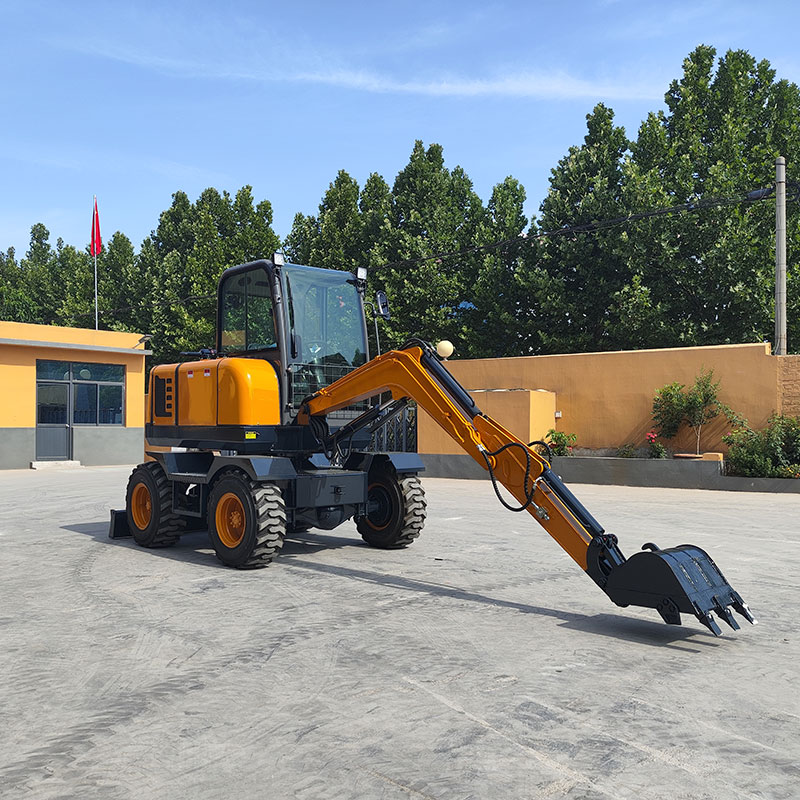

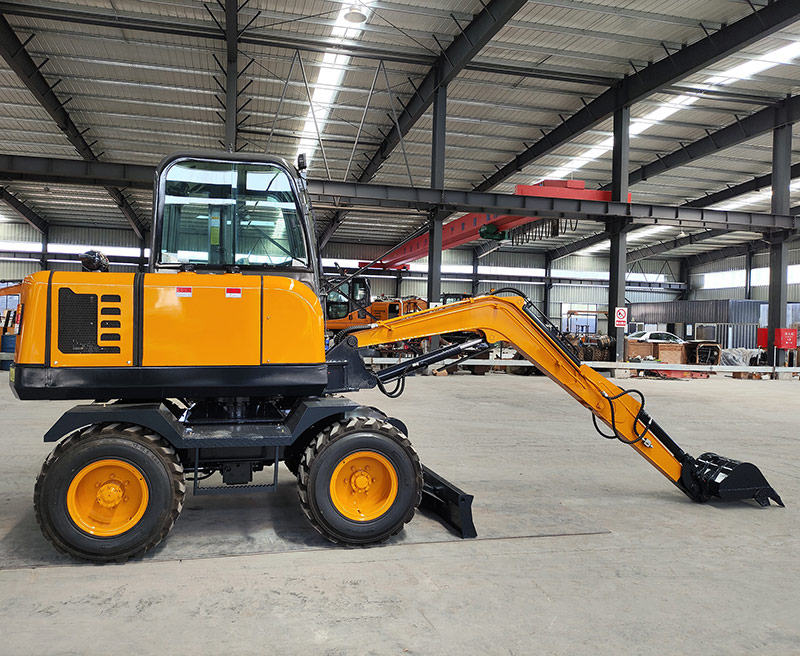

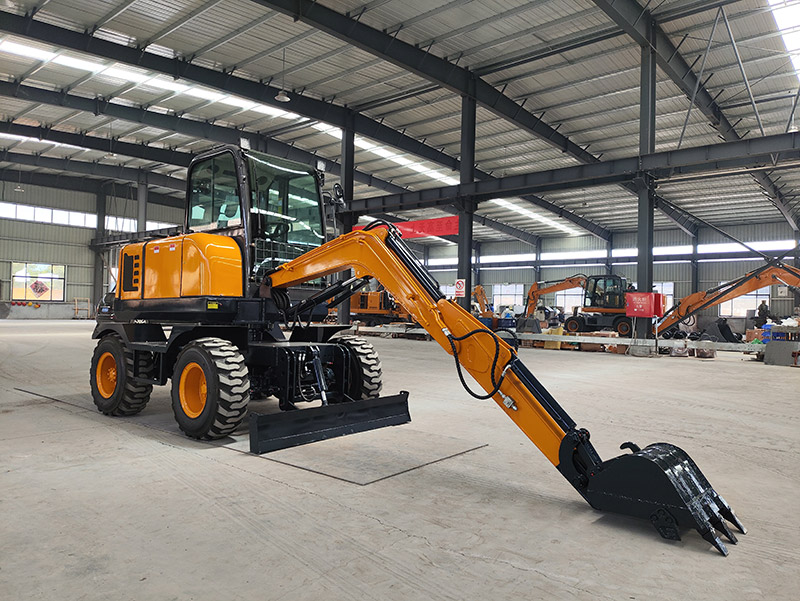

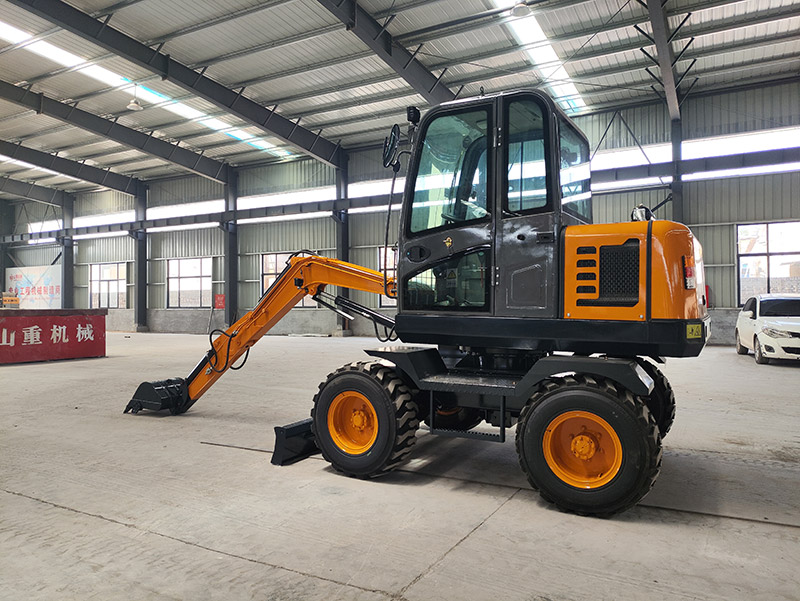

SZL40 Wheel excavator is a small wheeled excavator independently developed by Shanzhong.
1) A single-row tire design which works well for community activities and restricted spaces.
2) Robotic welding guarantees the precision and reliability of the structural elements' processing.
3) The load-sensitive main valve and imported engines collaborate more effectively and efficiently to save energy.
4) Strong torque adapting is stronger using schedule automated transmission.
4) Use a strong box-style welding structure to fortify the long arm and significantly extend its useful life.
5) Fire equipment, intelligent operating system, and panorama cab.
6) Special construction and bidding needs can be satisfied with customized manufacture.
Parameters | |||
Brand： | shanzhong | Model： | SZL40 |
Engine ： | 4TNV94L | Power： | 35kw/ 2200rpm |
Operation Weight： | 3350kg | Bucket Capacity： | 0.26m³ |
Size | |||
Shipping Length： | 4350mm | Arm Length： | 2150mm |
Shipping Height： | 2680mm | Boom Length： | 1280mm |
Total Width： | 1850mm | Height of Bulldozer Plate： | 300mm |
Turntable width： | 1410mm | Height of Bulldozer Plate： | 1800mm |
Radius,Swing Center To Rear End： | 1430mm | Bulldozer support height： | 300mm |
Counterweight Ground Clearance： | 940mm | Min Ground Clearance： | 240mm |
Hydraulic Tank Capacity： | 75L | Fuel Tank Capacity： | 60L |
Working Parameter | |||
Max.Digging Radius： | 4350mm | Max.Digging Height： | 3840mm |
Max.Digging Depth： | 2100mm | Max.unloading Height： | 5305mm |
Hydraulic System Pressure： | 26MPa | Hydraulic System Flow： | 140L/min |
Bucket Digging Force： | 45kn | Arm Digging Force： | 22kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-35km/h |
Gradeability： | ≥60% | ||
