4 Wheel Drive Compact Backhoe Loader For Sale

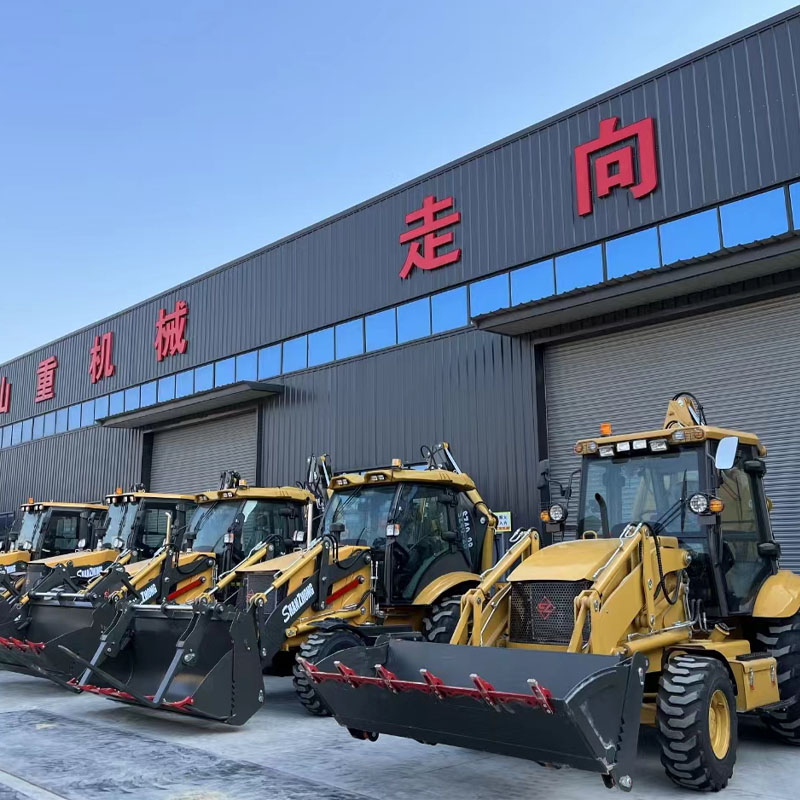

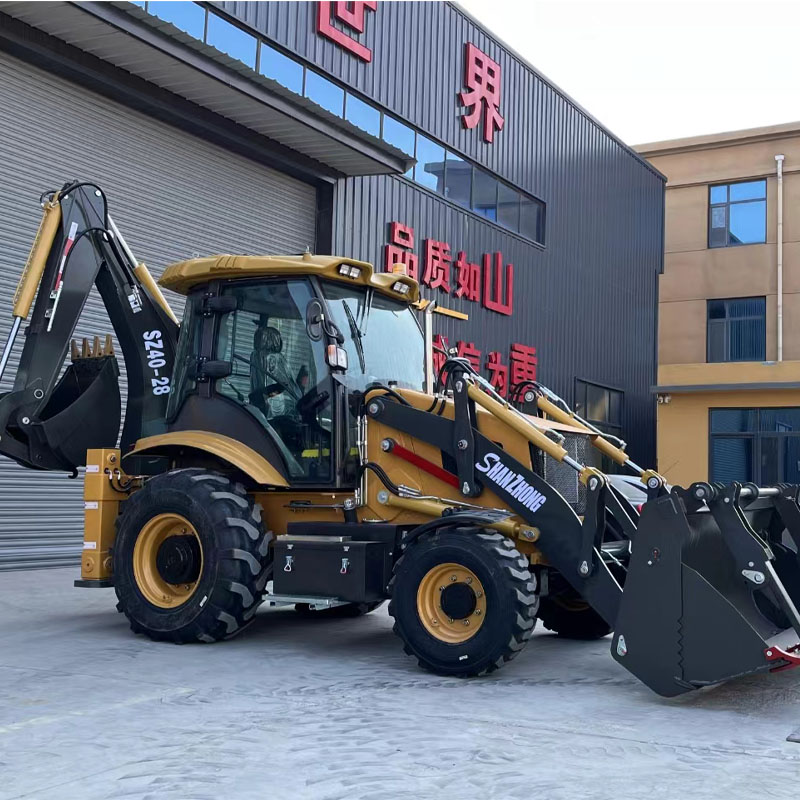

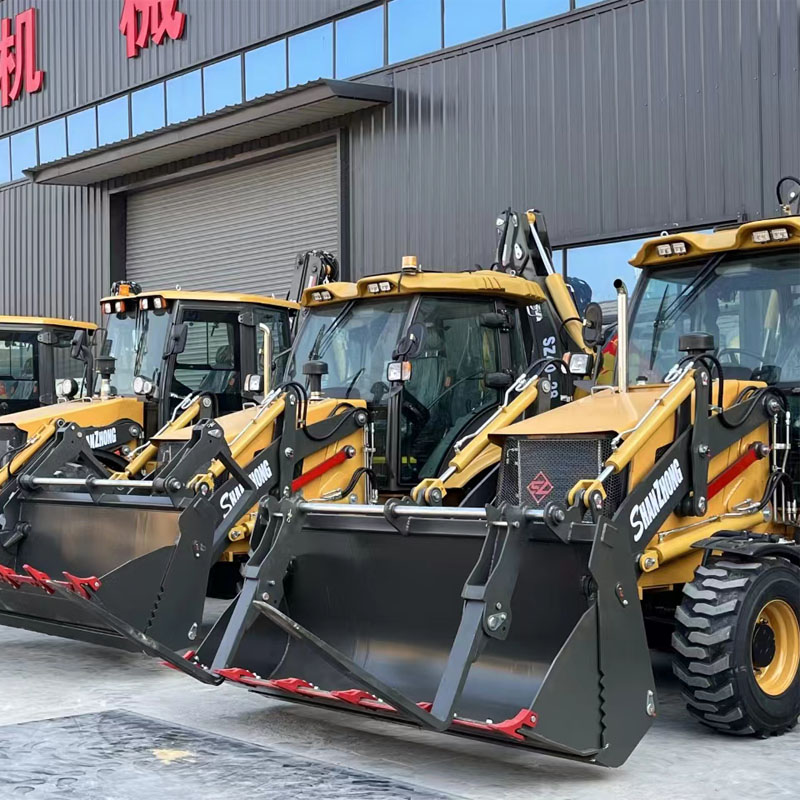

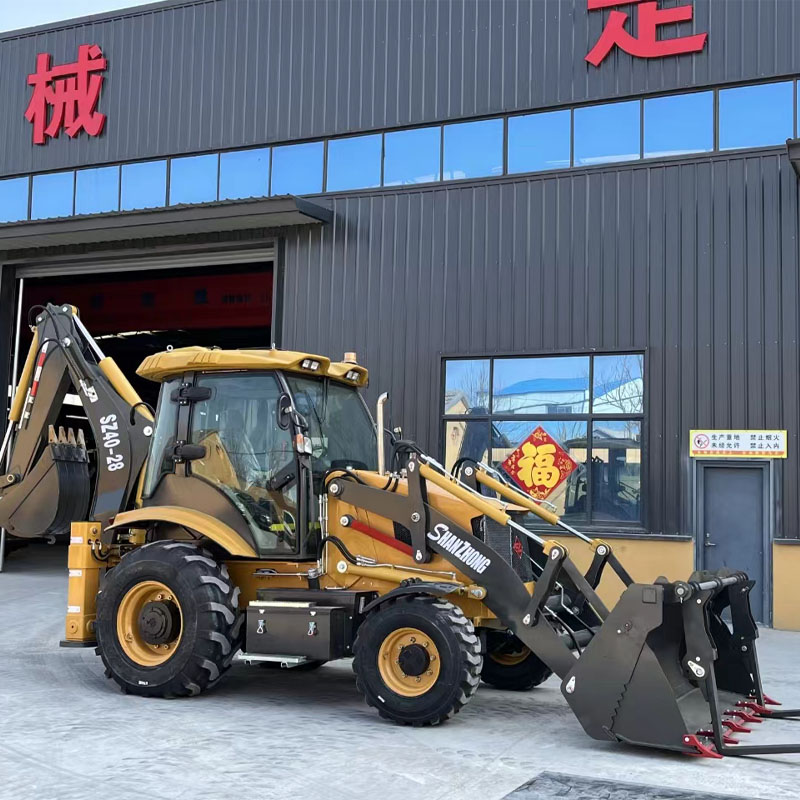

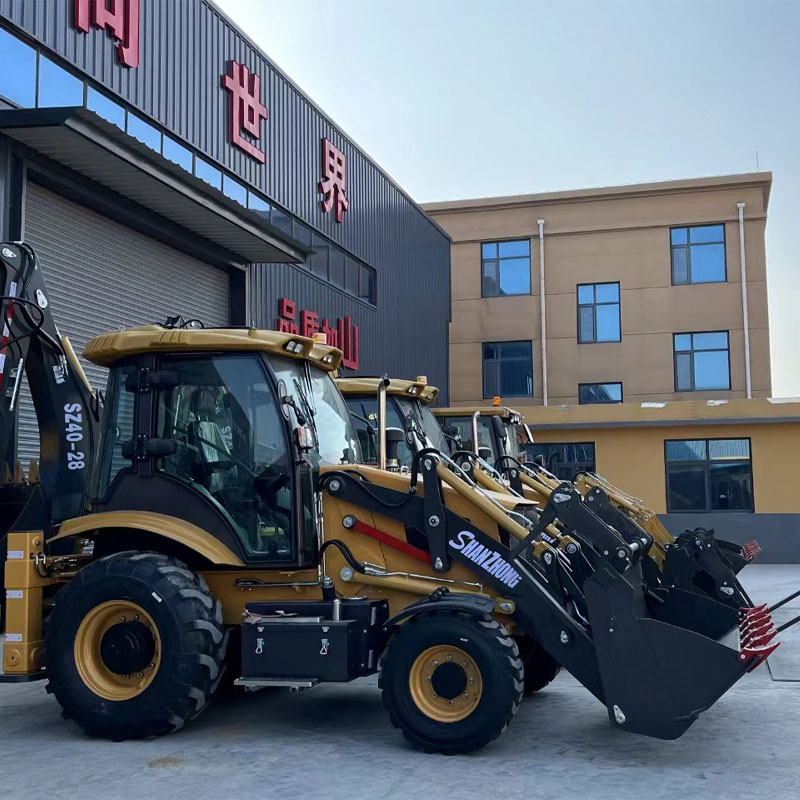

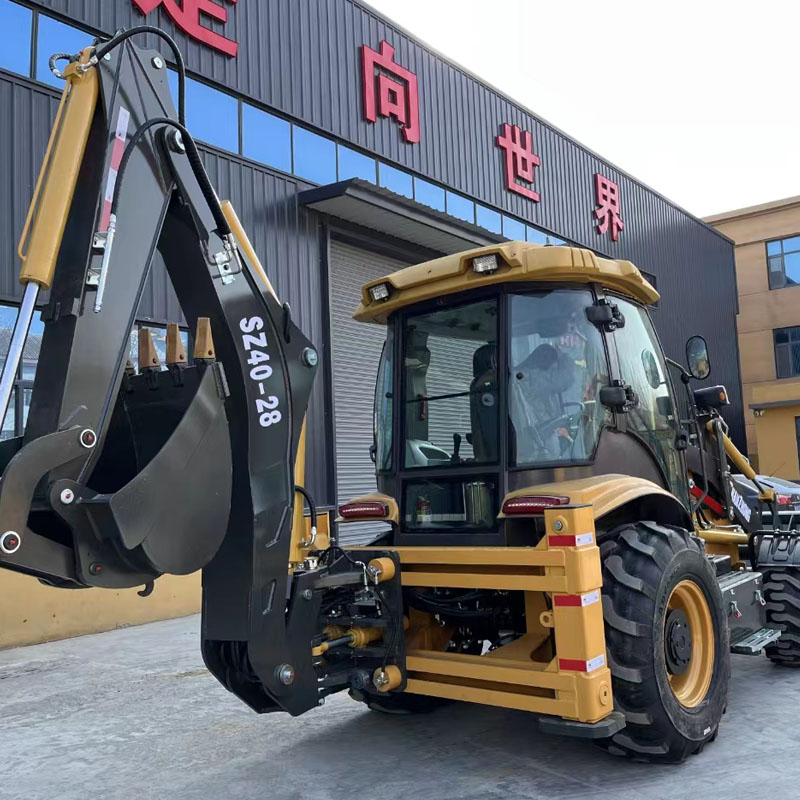

SZ40-28 Backhoe Loader Product Description
1）Multi -machine, powerful function, simple control.
2）Strong power, super off -road performance, adapt to bad pavement conditions.
3）All -in -one frames, better stability, streamlined appearance, beautiful and generous.

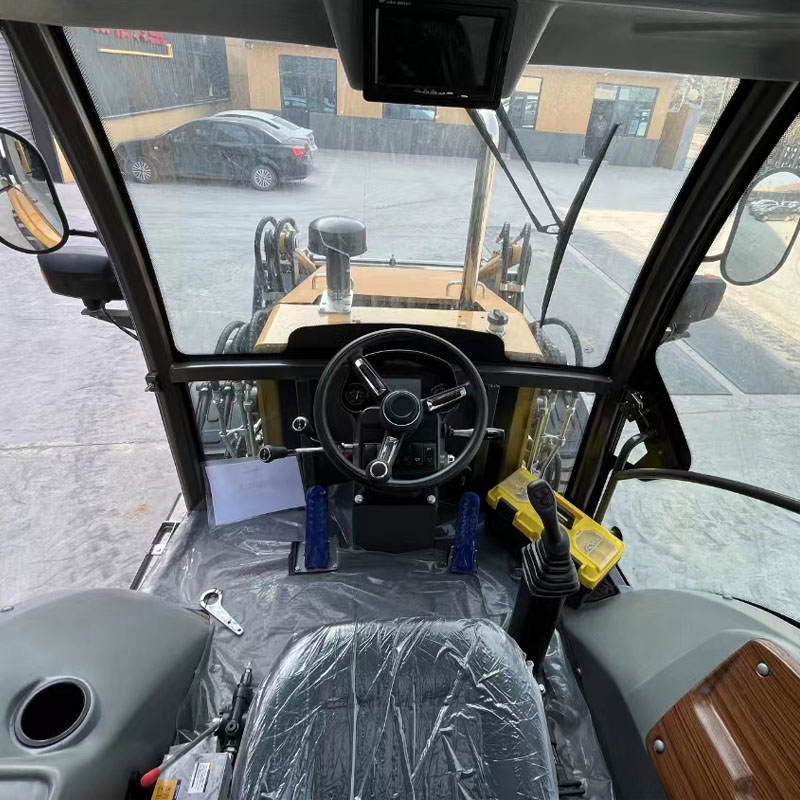

4）Panorama cab, LCD integrated display instrument, standard cold and warm air conditioning.
5）Suspension -type top racks, shock absorption seats, electronic shifts, humanized design, more comfortable control.
6）Customized production can be provided to meet the needs of special construction and bidding.
Backhoe loaders SZ40-28 with Shanzhong brand are modular construction tools that may be used for digging, lifting, loading, and journeys. Because this equipment is a hybrid loader and excavator, it can carry out a wide range of functions. It is easier to take advantage of in confined areas, effortless, flexible, and has a work efficiency boost of over 30%. It offers every feature available on a loader and excavator at the beginning level.
An individual is able to select from hundreds of attachment devices to do many building-related jobs depending on their working environment.
Basic parameter | |||
Brand： | shanzhong | Model： | SZ40-28 |
Engine Model： | YCD4M22T-105 | Engine Power： | 77.3/2200(KW/rpm) |
Operating Weight： | 8200kg | Bucket Capacity： | 1.2m³ |
Loading Lifting ability： | 2500kg | Backhoe Bucket Capacity： | 0.3m³ |
Size | |||
Shipping Length： | 7900mm | Axle： | Rotor deceleration |
Shipping Height： | 3000mm | Hydraulic pump type： | Fixed shaft power shifting |
Width： | 2270mm | Gear ： | 4Forward 4 Rear |
Tyres： | Forward14-17.5 Rare 19.5L-24 | Steering Angle： | 36° |
Wheel base： | 2200mm | Driving brake： | Two -wheeled disc brake |
wheel tread： | 1640mm | Transmission Model： | YJ-280 |
Model of Steering Device： | BZZ5-250 | Min ground clearance： | 300mm |
Working Range | |||
Bucket Dumping Height： | 2742mm | Backhoe Dumping Height： | 3500mm |
Bucket Dumping Distance： | 1062mm | Max. Digging Depth： | 4200mm |
Bucket Width: | 2200mm | Max digging distance： | 5300mm |
Hydraulic system flow： | 126+20L/min | Arm digging force： | 31kn |
Bucket digging force： | 46.5kn | Max.Speed： | 36km/h |
Min. turning radius： | 6580mm | Gradeability： | 30° |
