6 Ton Crawler Type Excavator

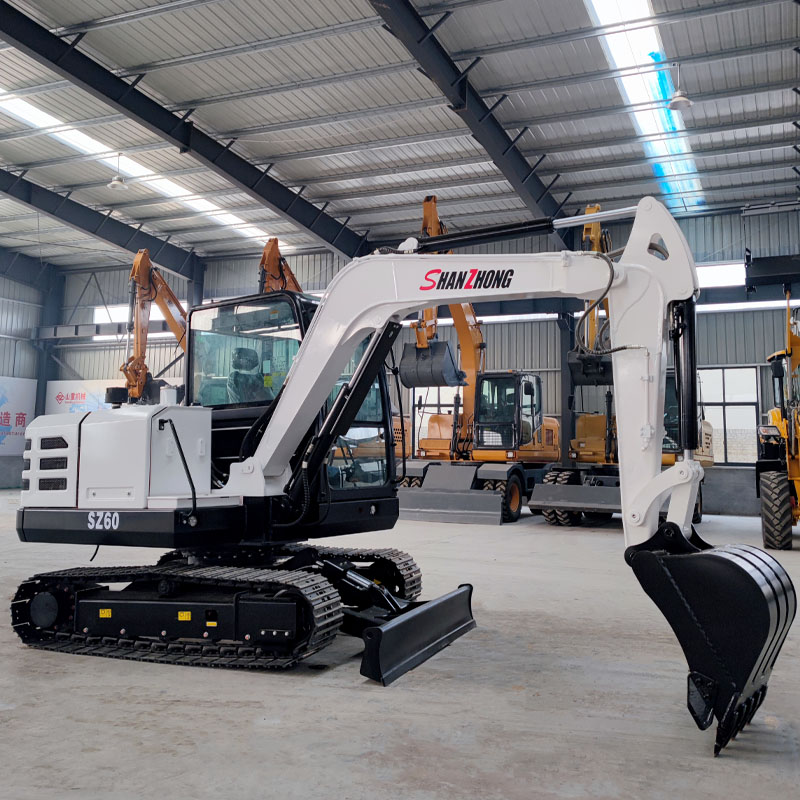

SZ60 Crawler Excavator Product Description

1) Robot welding to ensure the processing accuracy and quality reliability of the structural parts.

2) The combination of  Yanmar engine and load sensitive main valve, more energy -saving and efficient.

3) Imported hydraulic hydraulic system. Fast speed, in line with the shortcoming cycle of action.

4) Adopt a stable box -type welding structure, strengthen the large arm, and greatly improve the service life.

5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.


Contact Now E-Mail Telephone WhatsApp
Product Details

SZ60 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong. To ensure the durability of the power and power reserve of the whole machine, this machine utilizes a high-power, low-fuel engine. The high-efficiency hydraulic system and axle box have been precisely balanced to ensure the work.
Every single machine's hydraulic system corresponds with well-known hydraulic individual components and boasts characteristics for example "great dependability, authentic products, safety and with environmental preservation, comfort and convenience," among others. Simultaneously, it is allowed to provide an array of customized configuration and attachment choices that can be tailored to meet the needs of various regions and customers.
There are multiple several attachments available. Comfortable and roomy cab with outstanding vision in every direction. Ergonomic seat swap for increased operator comfort.

SZ60 Crawler Excavator


Parameter

Brand:

shanzhong

Model:

SZ60

Engine Model:

YANMAR 4TNV94

Engine Power:

49.3kw/2200rpm

Weight:

5950kg

Bucket Capacity:

0.25m³

Size

Shipping Length:

5855mm

Boom Length:

3000mm

Shipping Height:

2580mm

Arm Length:

1600mm

Overall Width:

1880mm

Track Length:

2540mm

Turntable Width:

1880mm

Gauge:

1960mm

Track Width:

400mm

Landing Gear Height:

2560mm

Radius, Swing Center to Rear End:

1655mm

Min width of Gyration:

2200mm

Counterweight ground clearance:

920mm

Min ground clearance:

355mm

Hydraulic Tank Volume:

105L

Fuel Tank Volume:

120L

WORKING RANGE

Max. Digging Radius:

6155mm

Max. Digging Height:

5760mm

Max. Digging Depth:

3820mm

Max. Dumping Height:

4030mm

Hydraulic system Work Pressure:

32.34/34.3MPa

Hydraulic system Flow:

2*57.8L/min

Bucket digging force:

20.6kn

Arm digging force:

17kn

Rotation Speed:

0-9.5r/min

Travel Speed:

4.1-3.0km/h

Gradeability:

≥70%




SZ60 Crawler Excavator
