7.5 Ton China Wheel Excavator Factory

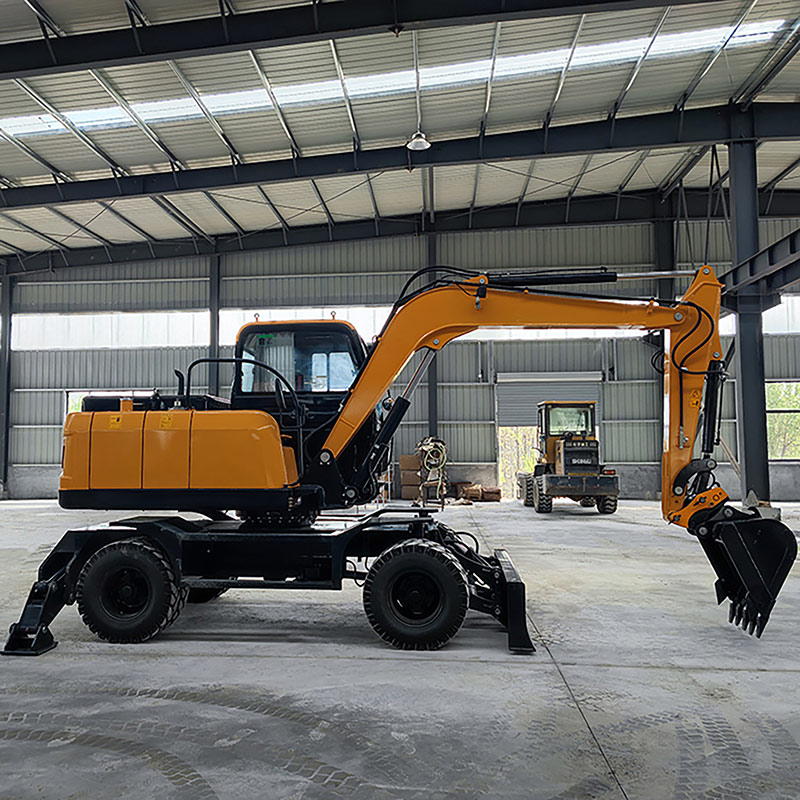

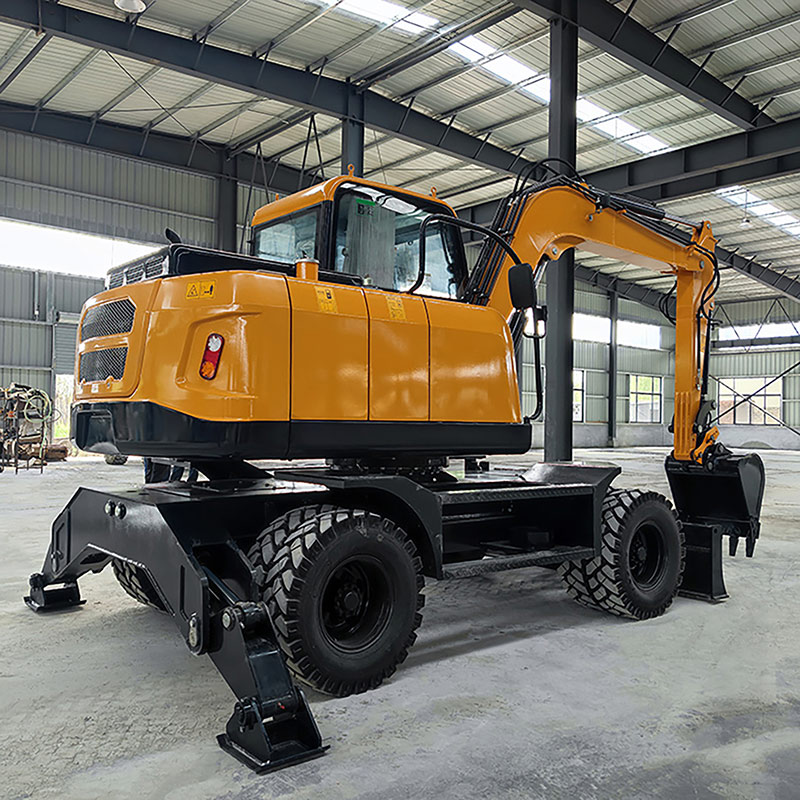

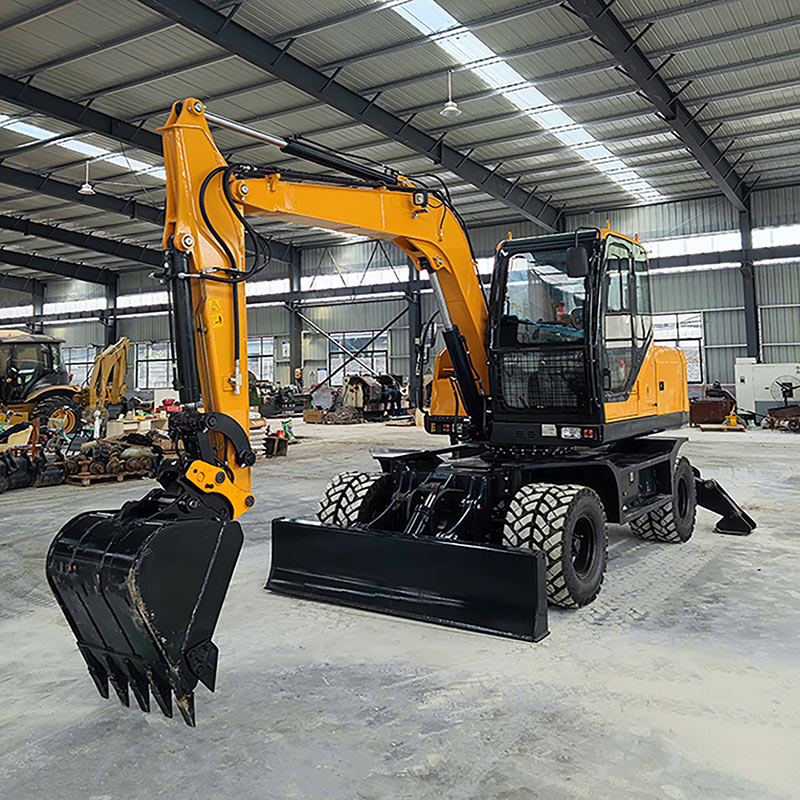

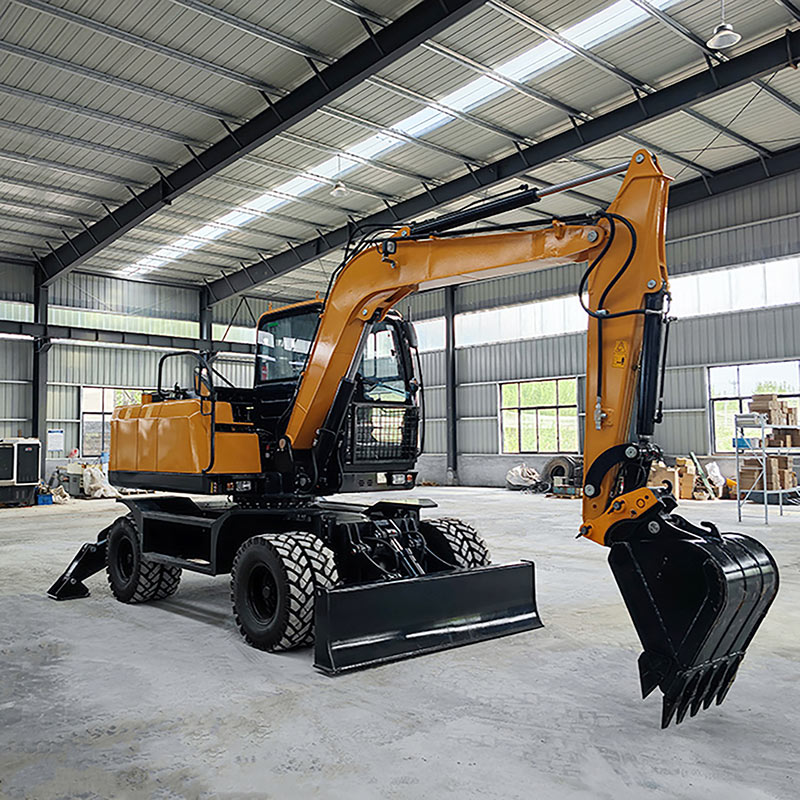

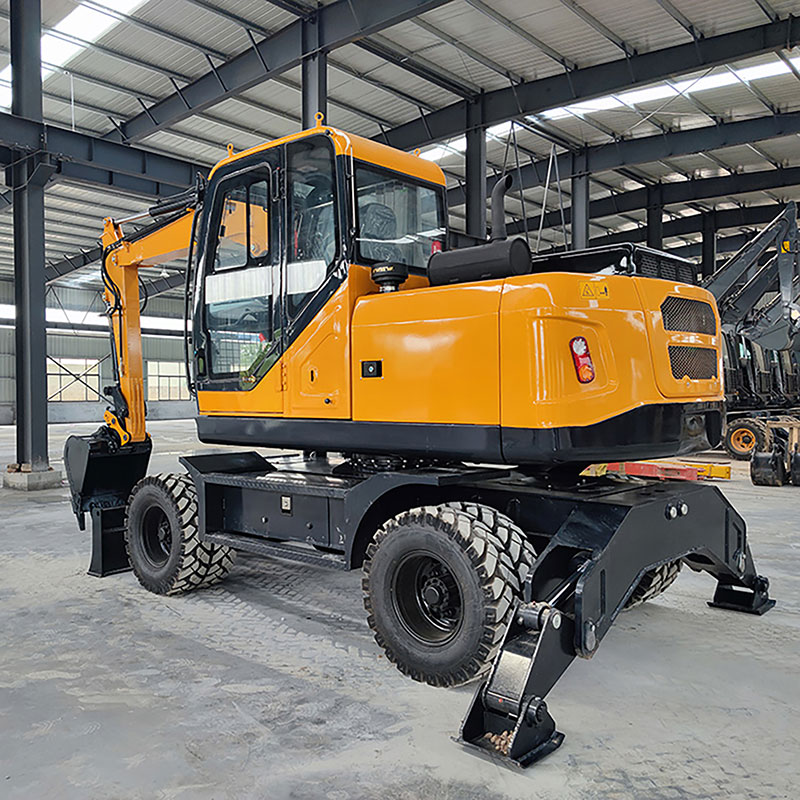

SZL80 Wheel Excavator Product Description
1) The mechanical walking is convenient and flexible, and it can be walked frequently and the transfer is fast.
2) The new load sensitive system, the operation is smoother and the power is sufficient.
3) The front shovel band balanced oil cylinder plus the rear leg design, the stability is higher.
4) Four -wheel drive, four -wheel brakes, double -gas pump design is more safe.
5) Fast speed of rotation, steady brakes. Electronic operations are flexible and simple, and work while walking.
6) Customized production can be provided to meet the needs of special construction and bidding.
SZL80 Wheel excavator is a new generation of Mechanical walking wheeled excavator independently developed by Shanzhong.
SZL80 offers rich value returns for customers and is crucial to the operations of oil field, airport, port, urban establishing, irrigation, conserving water, and quick repair.
1) The mechanical walking is swift and flexible, enabling frequent walking and transfers.
2) The new load-sensitive system, that provides enough power and works more smoothly.

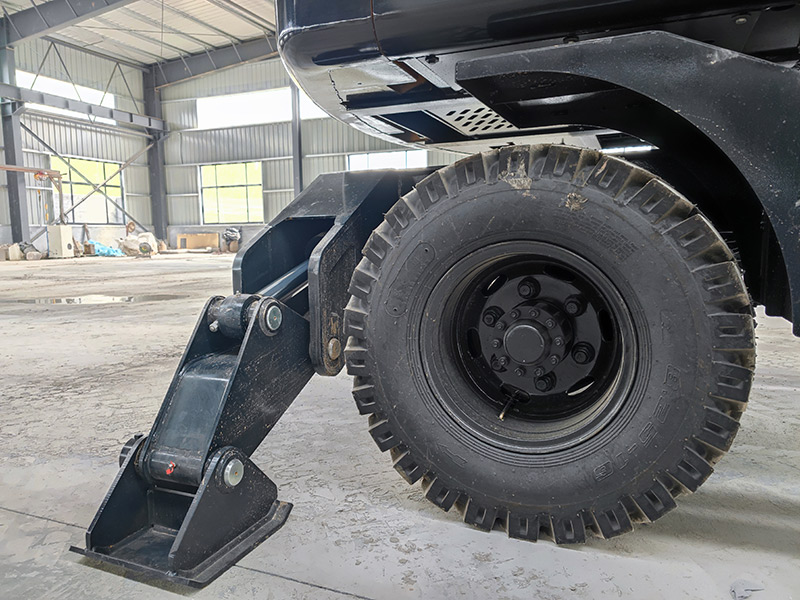

3) There is more stability thanks to the rear leg design and the front shovel band balanced oil cylinder.
4) A twins gas pump design, four-wheel drive, plus four-wheel brakes increase safety.
5) Fast rotation and consistent braking. Electronic operations are easy to use, adaptable, and effective while on walk.
6) Customized production can be provided to meet the needs of special construction and bidding.
Parameters | |||
Brand： | shanzhong | Model： | SZL80 |
Engine ： | YC4DK85-T302 | Power： | 62.5kw/2300rpm |
Operation Weight： | 7600kg | Bucket Capacity： | 0.35m³ |
Size | |||
Shipping Length： | 6835mm | Arm Length： | 3500mm |
Shipping Height： | 2835mm | Boom Length： | 2000mm |
Total Width： | 2152mm | Height of Bulldozer Plate： | 500mm |
Turntable width： | 1940mm | Height of Bulldozer Plate： | 2140mm |
Wheelbase： | 2360mm | Lifting Height of Bulldozer Plate： | 380mm |
whell Tread： | 1680mm | Bulldozer support height： | 80mm |
Radius,Swing Center To Rear End： | 2133mm | Bulldozer support height： | 280mm |
Counterweight Ground Clearance： | 1000mm | Min Ground Clearance： | 240mm |
Hydraulic Tank Capacity： | 130L | Fuel Tank Capacity： | 120L |
Working Parameter | |||
Max.Digging Radius： | 6769mm | Max.Digging Height： | 7200mm |
Max.Digging Depth： | 4400mm | Max.Digging Height： | 5305mm |
Hydraulic System Pressure： | 26MPa | Hydraulic System Flow： | 140L/min |
Bucket Digging Force： | 45kn | Arm Digging Force： | 22kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-35km/h |
Gradeability： | ≥60% | ||
