7.5 Ton China Wheel Excavator Manufacturer
SZL80 Wheel Excavator Product Description
1) The mechanical walking is convenient and flexible, and it can be walked frequently and the transfer is fast.
2) The new load sensitive system, the operation is smoother and the power is sufficient.

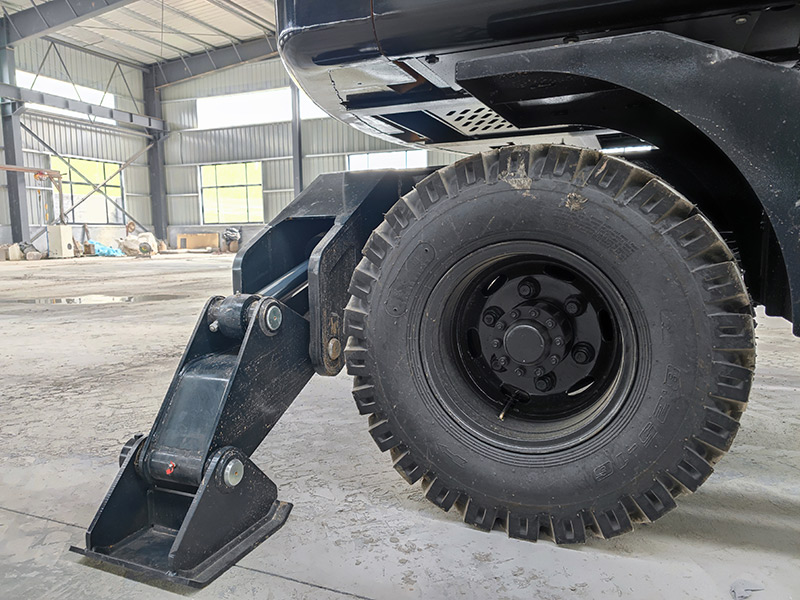

3) The front shovel band balanced oil cylinder plus the rear leg design, the stability is higher.
4) Four -wheel drive, four -wheel brakes, double -gas pump design is more safe.
5) Fast speed of rotation, steady brakes. Electronic operations are flexible and simple, and work while walking.
6) Customized production can be provided to meet the needs of special construction and bidding.

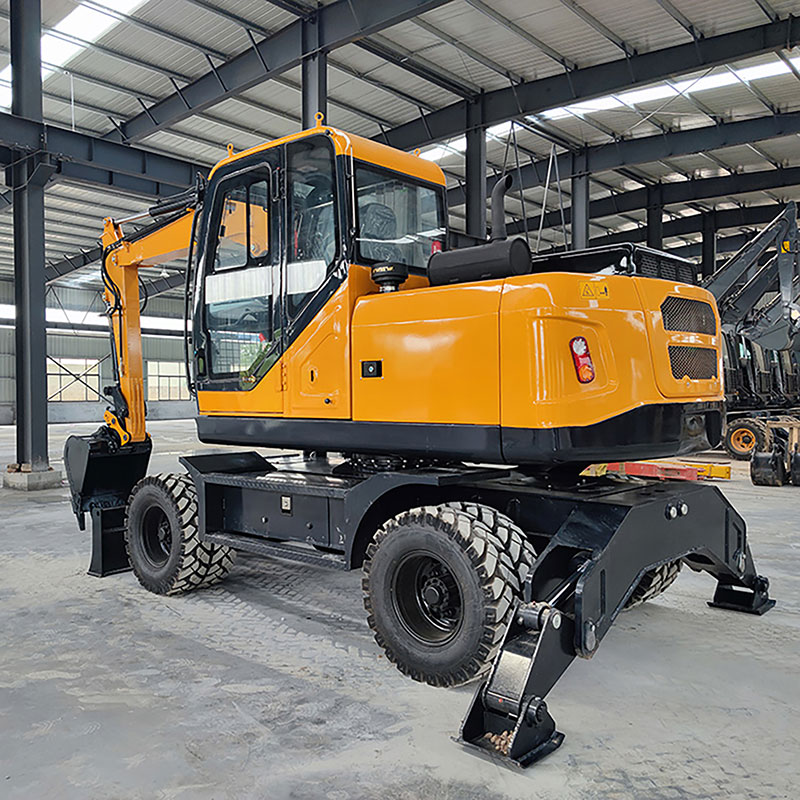

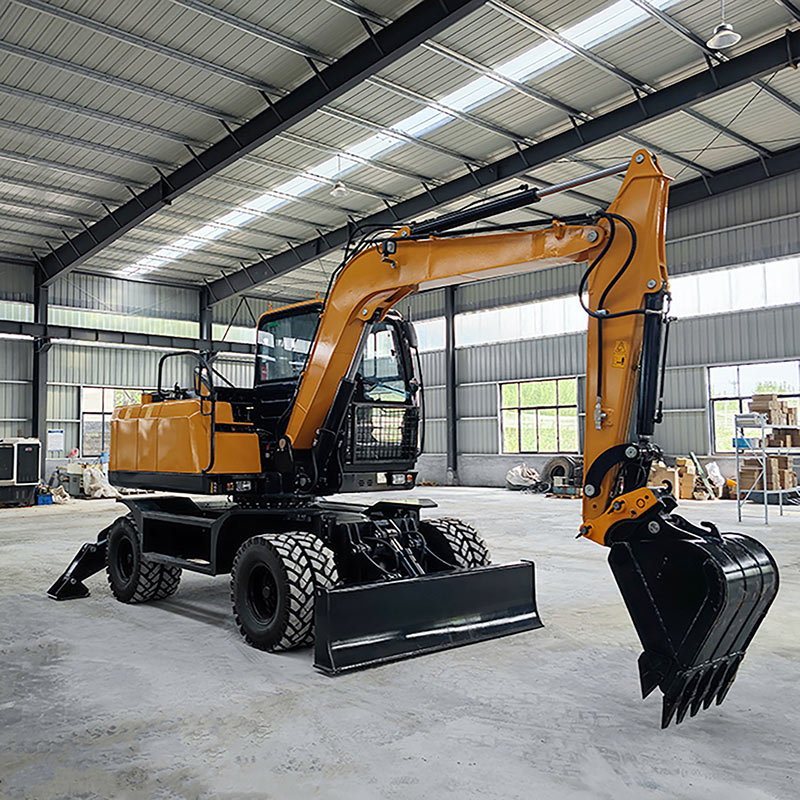

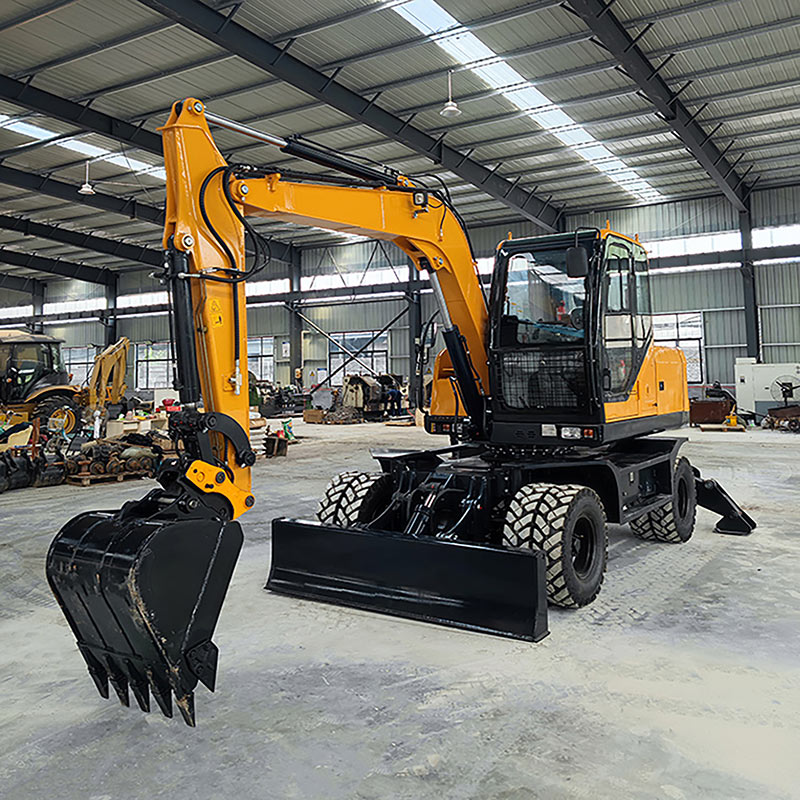

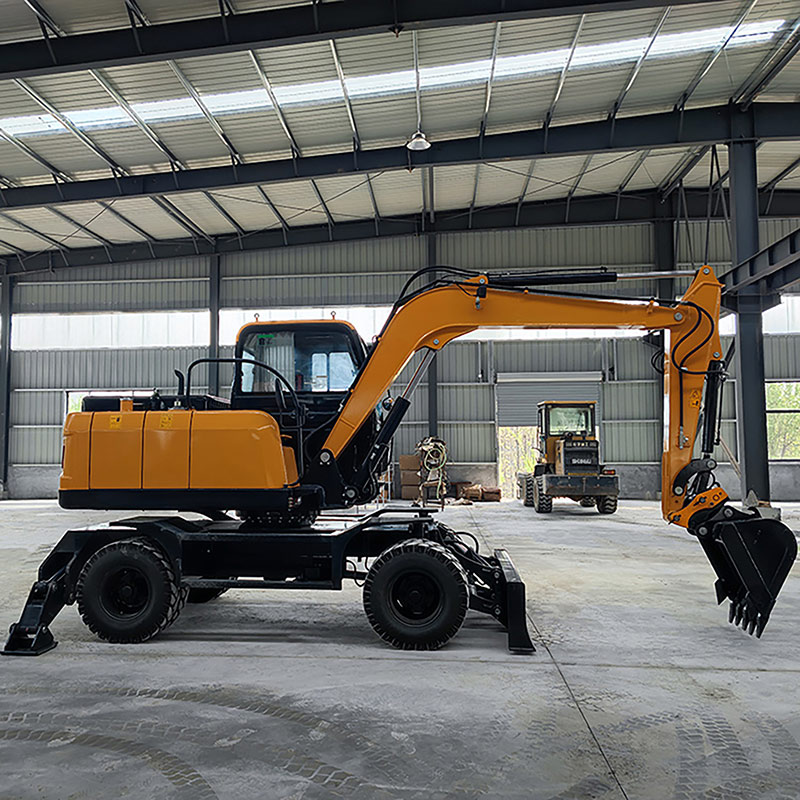

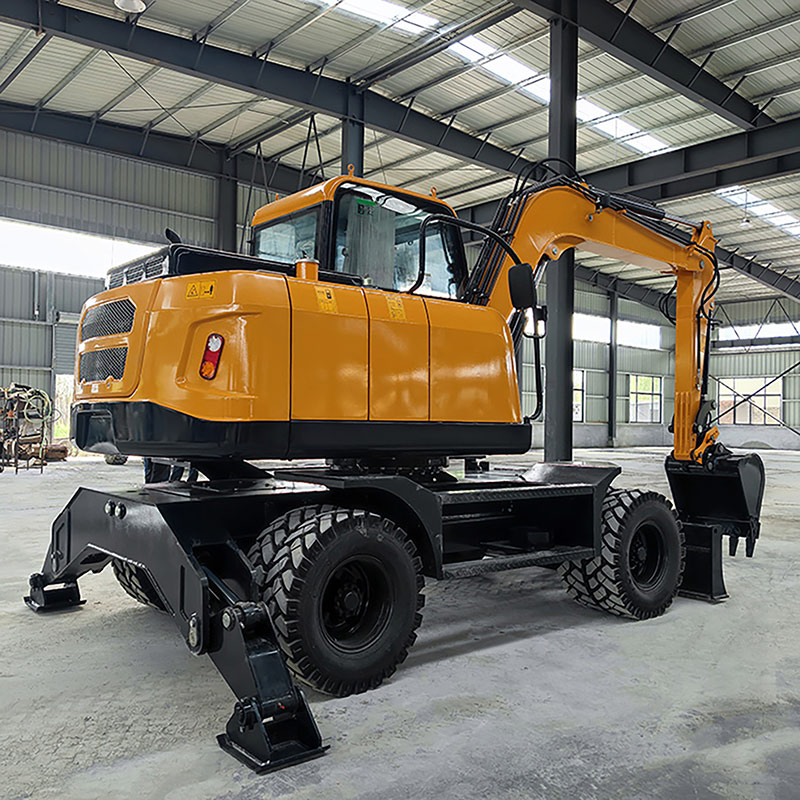

SZL80 Wheel excavator is a new generation of Mechanical walking wheeled excavator independently developed by Shanzhong.
SZL80 provides rich value returns for consumers and is crucial to the development of oil field, airport, port, urban building, irrigation, preserving water, and quick repair.
1) The mechanical walking is fast and flexible, allowing for frequent walking and transitions.
2) The new load-sensitive system, that offers enough power and functions more efficiently.
3) There is additionally stability owing to the rear leg design and the front shovel band balanced oil cylinder.
4) A twins gas pump design, four-wheel drive, and four-wheel brakes improve safety.
5) Rapid rotation and consistent braking. Electronic operations are quick to use, versatile, and efficient while on foot.
6) Special construction and bidding needs can be met via customized fabrication.
Parameters | |||
Brand： | shanzhong | Model： | SZL80 |
Engine ： | YC4DK85-T302 | Power： | 62.5kw/2300rpm |
Operation Weight： | 7600kg | Bucket Capacity： | 0.35m³ |
Size | |||
Shipping Length： | 6835mm | Arm Length： | 3500mm |
Shipping Height： | 2835mm | Boom Length： | 2000mm |
Total Width： | 2152mm | Height of Bulldozer Plate： | 500mm |
Turntable width： | 1940mm | Height of Bulldozer Plate： | 2140mm |
Wheelbase： | 2360mm | Lifting Height of Bulldozer Plate： | 380mm |
whell Tread： | 1680mm | Bulldozer support height： | 80mm |
Radius,Swing Center To Rear End： | 2133mm | Bulldozer support height： | 280mm |
Counterweight Ground Clearance： | 1000mm | Min Ground Clearance： | 240mm |
Hydraulic Tank Capacity： | 130L | Fuel Tank Capacity： | 120L |
Working Parameter | |||
Max.Digging Radius： | 6769mm | Max.Digging Height： | 7200mm |
Max.Digging Depth： | 4400mm | Max.Digging Height： | 5305mm |
Hydraulic System Pressure： | 26MPa | Hydraulic System Flow： | 140L/min |
Bucket Digging Force： | 45kn | Arm Digging Force： | 22kn |
Rotation Speed： | 13-14/min | Travel Speed： | 28-35km/h |
Gradeability： | ≥60% | ||
