8 Ton Series Wheel Excavator

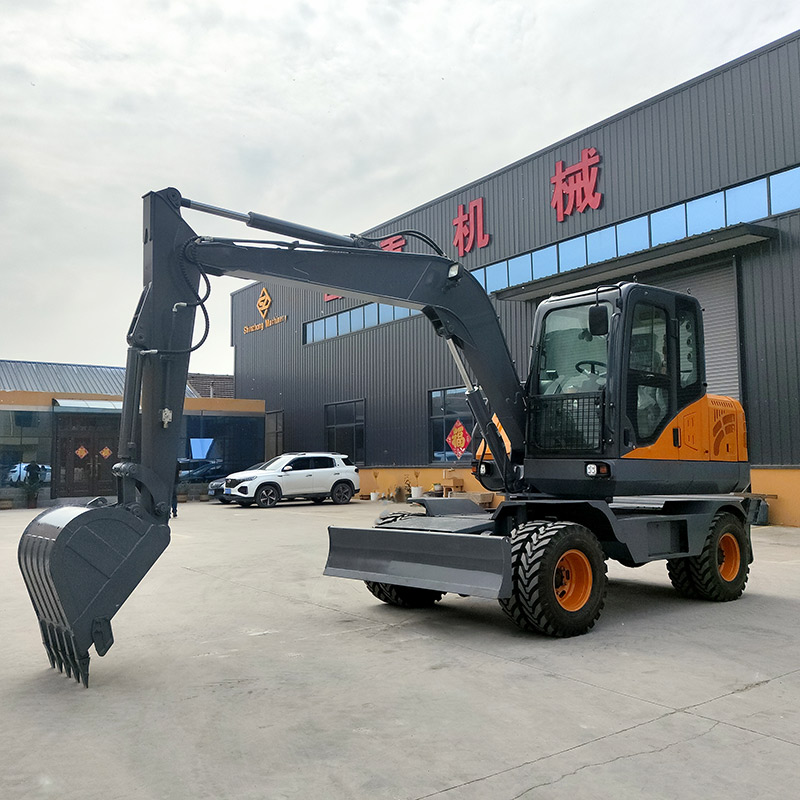

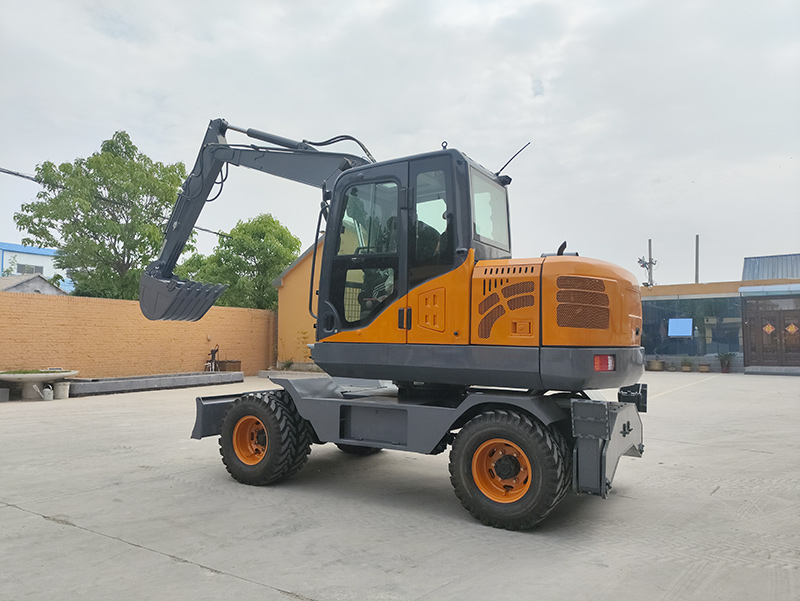

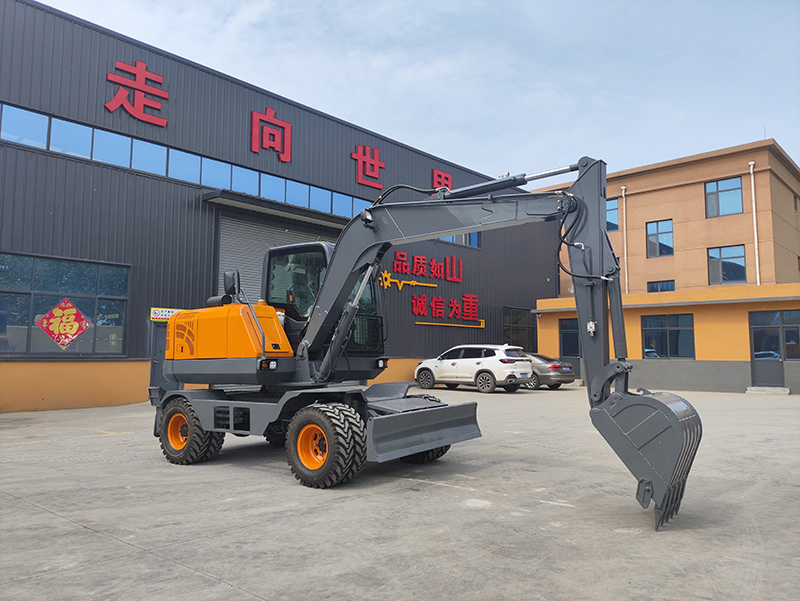

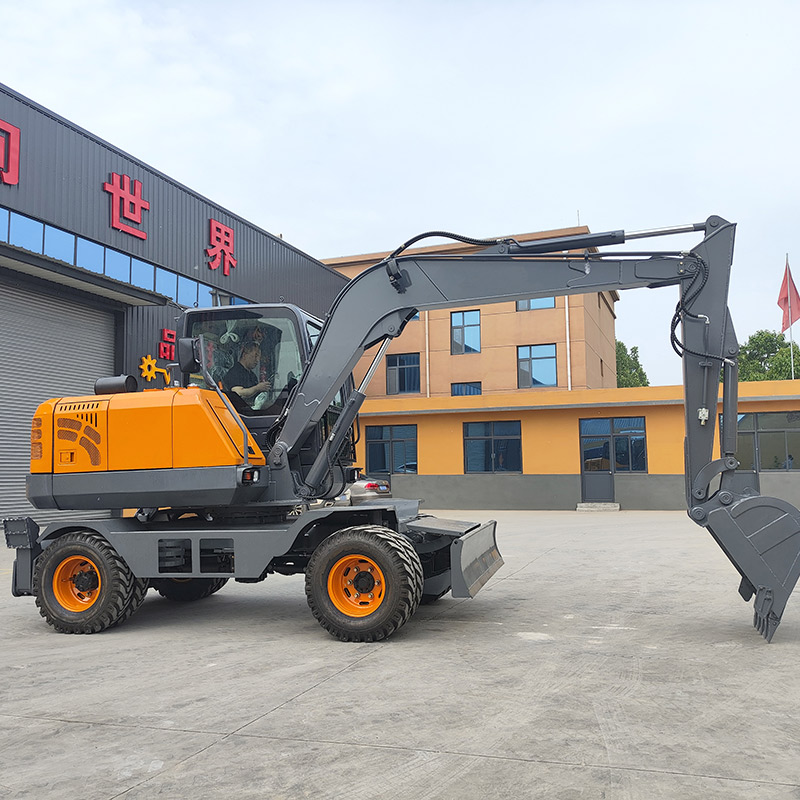

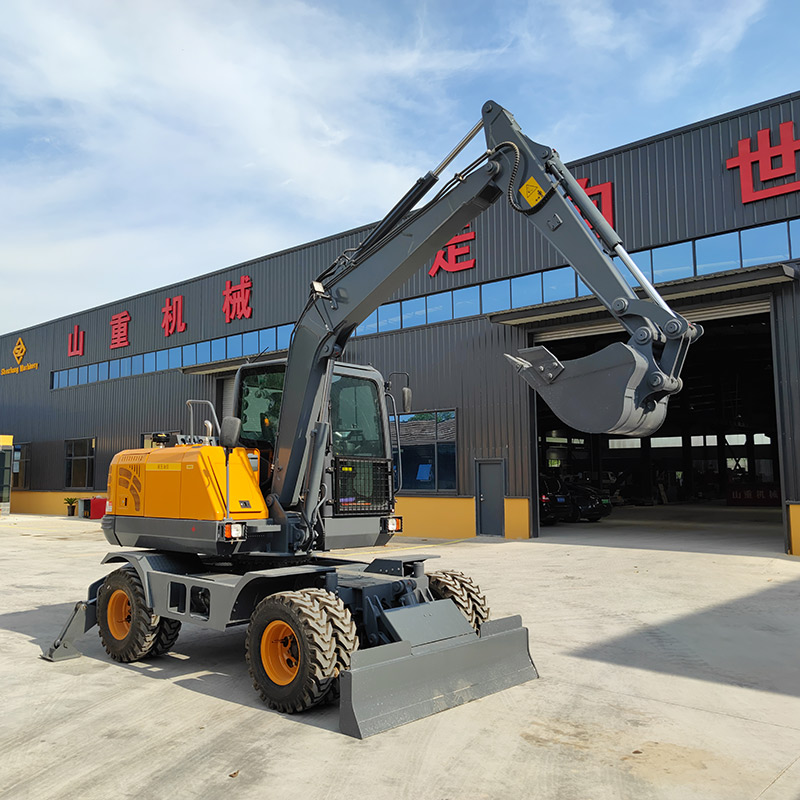

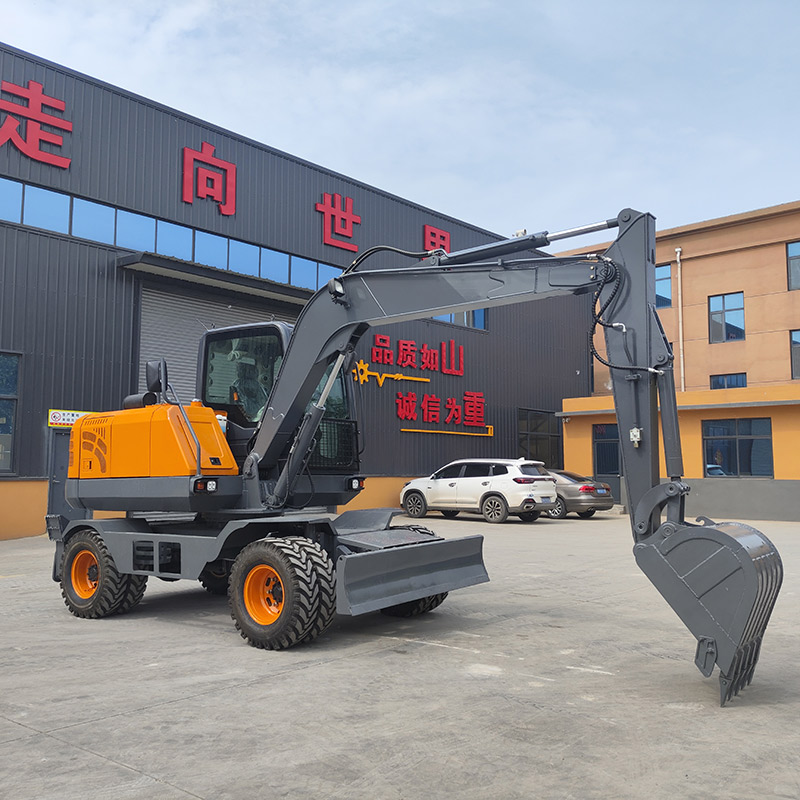

SZL85 Wheel Excavator Product Description
1) Schedule of hydraulic walking, low -speed torque, fast transfer.
2) The new load sensitive system, the operation is smoother and the power is sufficient.
3) The front shovel band balanced oil cylinder plus the rear leg design, the stability is higher.
4) Four -wheel drive, four -wheel brakes, double -gas pump design is more safe.
5) Fast speed of rotation, steady brakes. Electronic operations are flexible and simple, and work while walking.
6) Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong remains the independent a developing agent who created the SZL85 Wheel Excavator, a new generation of fully hydraulic wheeled excavating machines.
SZL85 creates rich value returns for viewers and is key in the domains of oil field, airport, port, urban construct, irrigation, the protection of water, and quick repair.
1) These hydraulic walking schedule, low torque, with quick transfer.
2) The new load-sensitive system, that holds enough power and operates a little better.
3) There is a bit stability thanks to a rear leg design and the front shovel band balanced oil cylinder.
4) A twin gas pump design, four-wheel drive, and even four-wheel brakes bolster safety.
5) Quick rotation as well as in keeping braking. Electronic operations are easy to use, versatile, and functional when each on a foot.
6) Specifically construction and bidding demand can be contented with customized preparation.
Parameters | |||
Brand： | shanzhong | Model： | SZL85 |
Engine ： | A498BZG | Power： | 48kw/2300rpm |
Operation Weight： | 8050kg | Bucket Capacity： | 0.30m³ |
Size | |||
Shipping Length： | 6300mm | Arm Length： | 3500mm |
Shipping Height： | 2930mm | Boom Length： | 1800mm |
Total Width： | 2200mm | Height of Bulldozer Plate： | 500mm |
Turntable width： | 1940mm | Height of Bulldozer Plate： | 2140mm |
Wheelbase： | 2360mm | Lifting Height of Bulldozer Plate： | 380mm |
whell Tread： | 1680mm | Bulldozer support height： | 80mm |
Radius,Swing Center To Rear End： | 1860mm | Bulldozer support height： | 280mm |
Counterweight Ground Clearance： | 1000mm | Min Ground Clearance： | 240mm |
Hydraulic Tank Capacity： | 130L | Fuel Tank Capacity： | 120L |
Working Parameter | |||
Max.Digging Radius： | 6400mm | Max.Digging Height： | 7100mm |
Max.Digging Depth： | 3500mm | Max.Digging Height： | 5300mm |
Hydraulic System Pressure： | 26MPa | Hydraulic System Flow： | 140L/min |
Bucket Digging Force： | 45kn | Arm Digging Force： | 22kn |
Rotation Speed： | 13-14/min | Travel Speed： | 30km/h |
Gradeability： | ≥60% | ||
