9 Ton Crawler Type Excavator

SZ90 Crawler Excavator Product Description

1) Robot welding to ensure the processing accuracy and quality reliability of the structural parts.

2) The combination of Yanmar engine and load sensitive main valve, more energy -saving and efficient.

3) Imported hydraulic hydraulic system. Fast speed, in line with the shortcoming cycle of action.

4) Adopt a stable box -type welding structure, strengthen the large arm, and greatly improve the service life.

5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.


Contact Now E-Mail Telephone WhatsApp
Product Details

SZ90 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong. To ensure the long-term durability power and power reserve of every component of the equipment, it uses a high-power, low-fuel engine. The high-efficiency hydraulic system and axle box have been precisely matched to ensure the work.
Every component of the machine's hydraulic system is fitted with well-known hydraulic equipment and boasts attributes including "great dependability, authentic products, safety and environmental preservation, comfort and convenience," between individuals. In the meantime it could supply an array of customizable configuration and attachment various options that the can be customised to accommodate the needs of various regions and customers.
There are additionally several attachments available. Comfortable and roomy cab with outstanding vision in every direction. Ergonomic seat alter for increased operator comfort.

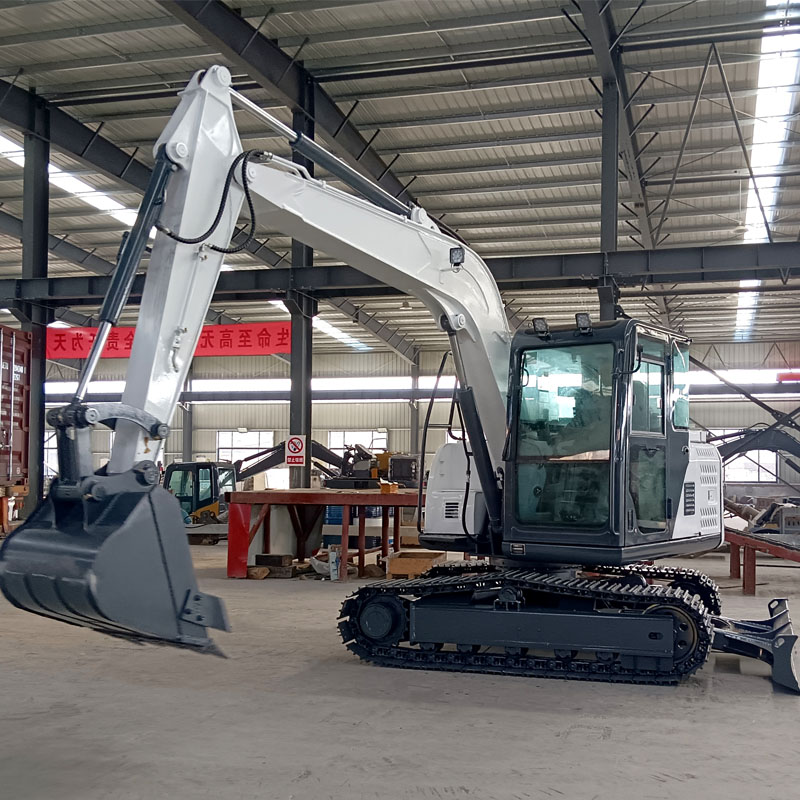

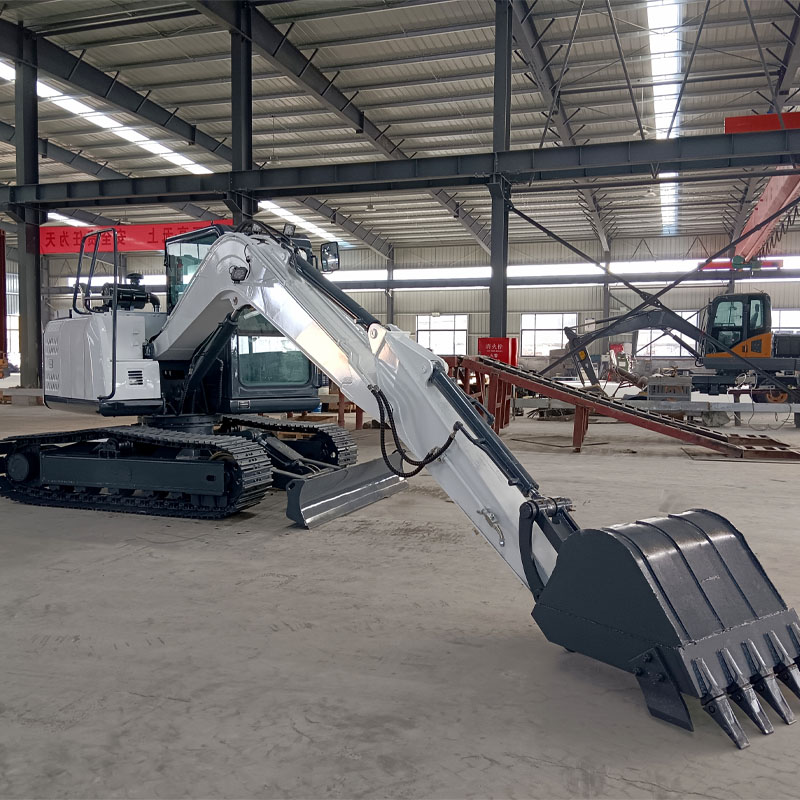

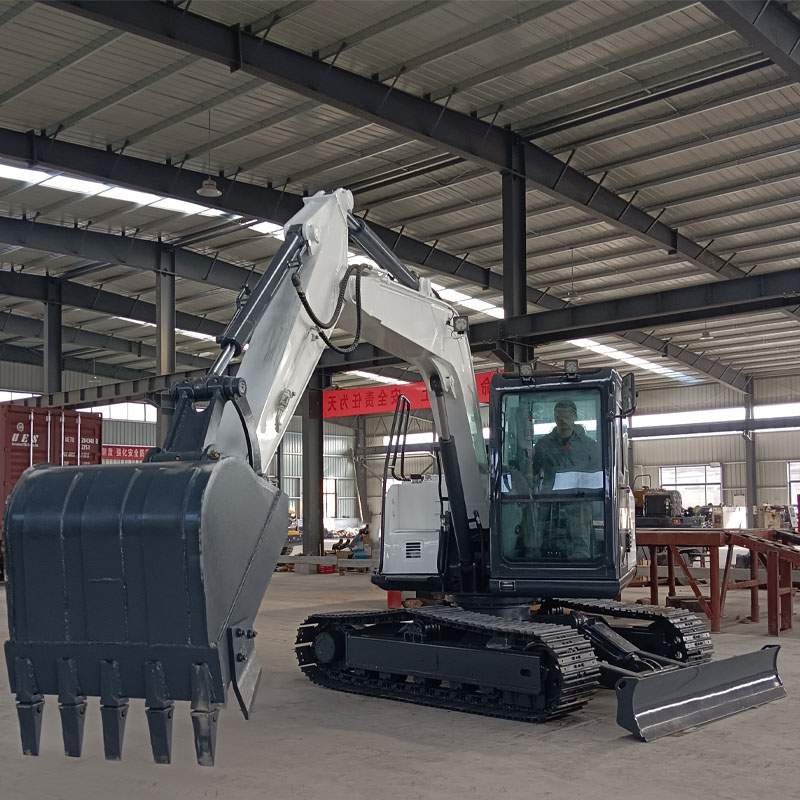

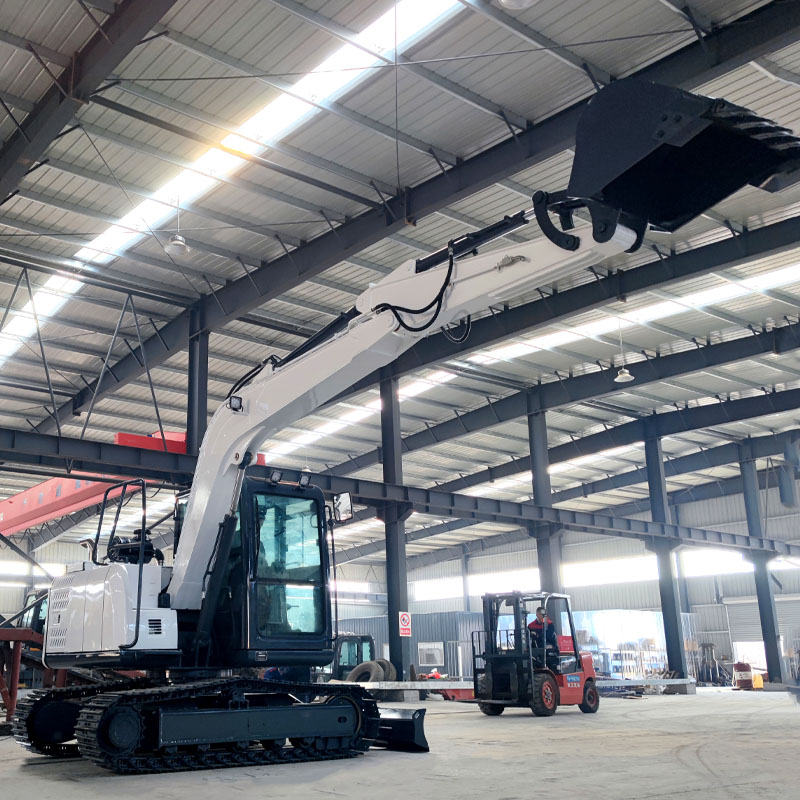

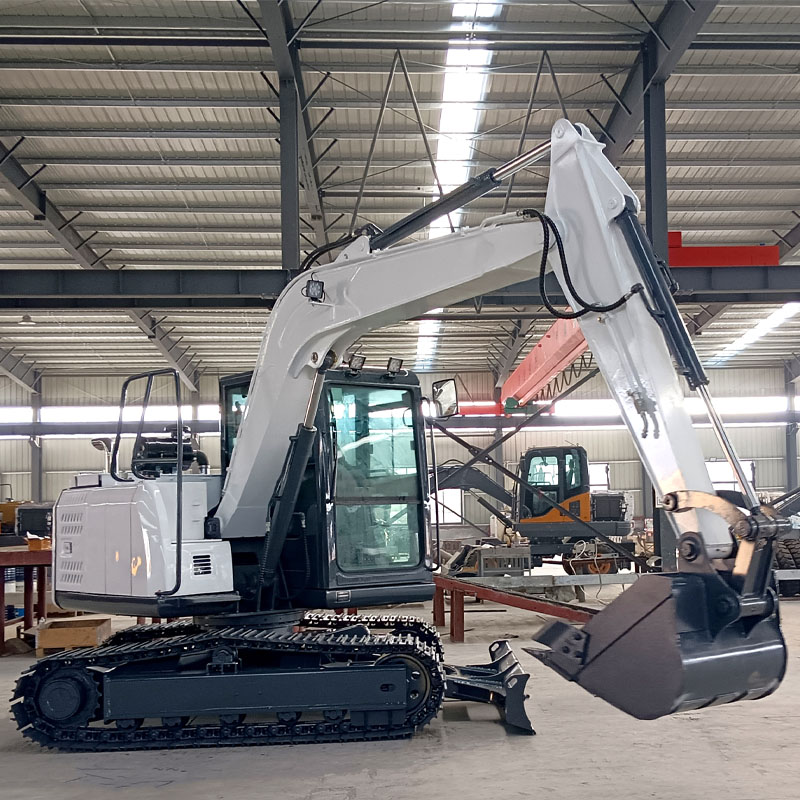

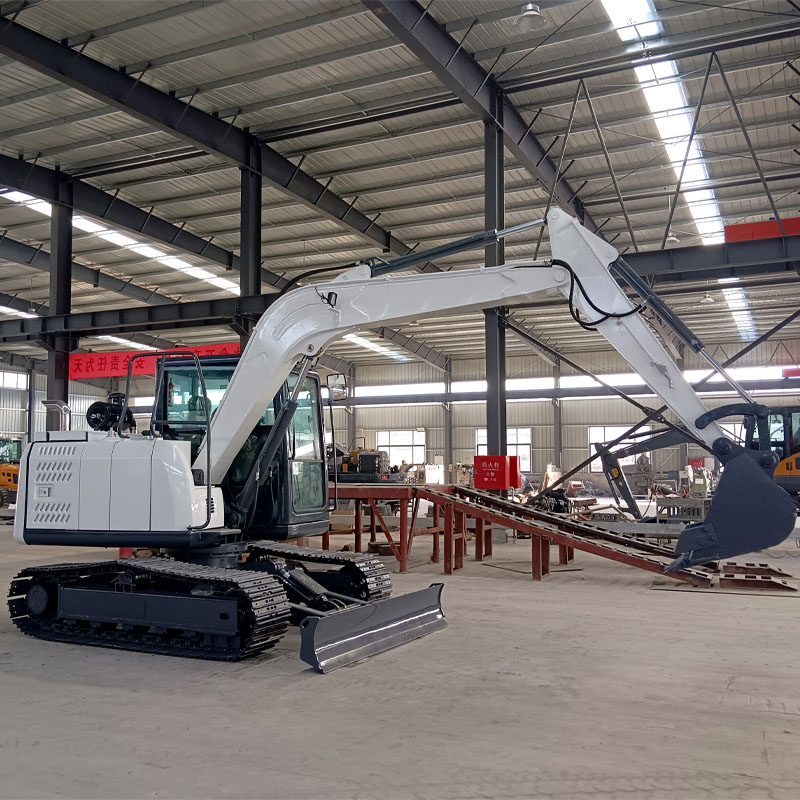

SZ90 Crawler Excavator


Parameter

Brand:

shanzhong

Model:

SZ90

Engine Model:

4TNV98T/4BTA3.9-C100

Engine Power:

62.5/74kw/2200rpm

Weight:

8060kg

Bucket Capacity:

0.36m³

Size

Shipping Length:

6300mm

Boom Length:

3710mm

Shipping Height:

2700mm

Arm Length:

1800mm

Overall Width:

2380mm

Track Length:

2980mm

Turntable Width:

2200mm

Gauge:

2140mm

Track Width:

450mm

Landing Gear Height:

2560mm

Radius, Swing Center to Rear End:

1980mm

Min width of Gyration:

2200mm

Counterweight ground clearance:

920mm

Min ground clearance:

380mm

Hydraulic Tank Volume:

75L

Fuel Tank Volume:

125L

WORKING RANGE

Max. Digging Radius:

6370mm

Max. Digging Height:

7350mm

Max. Digging Depth:

4150mm

Max. Dumping Height:

5250mm

Hydraulic system Work Pressure:

32.34/34.3MPa

Hydraulic system Flow:

2*80+26L/min

Bucket digging force:

55kn

Arm digging force:

30kn

Rotation Speed:

0-13r/min

Travel Speed:

4.5-2.3km/h
