9 Ton Crawler Excavator For Sale

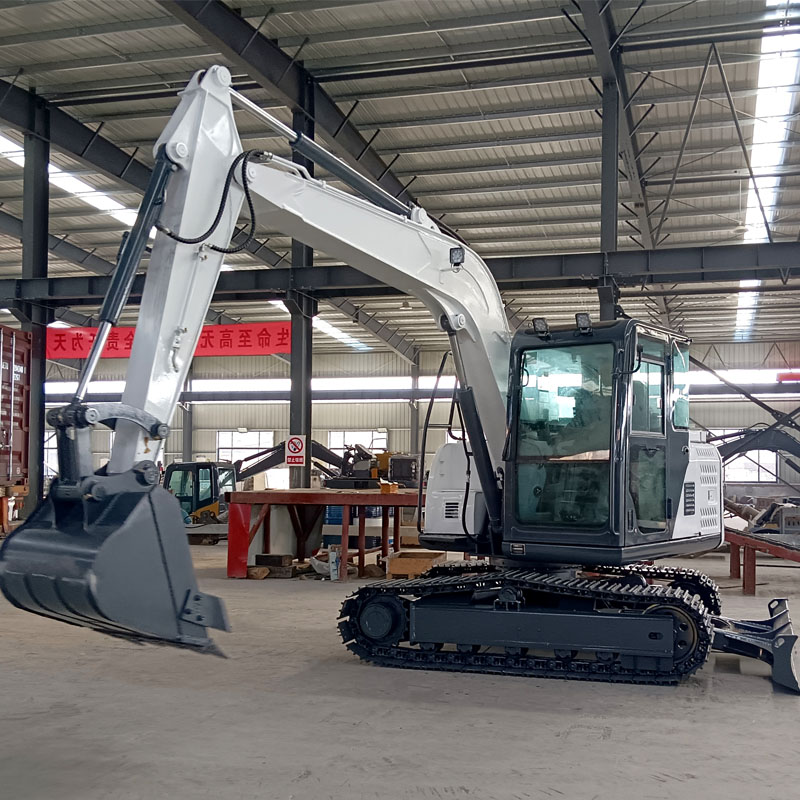

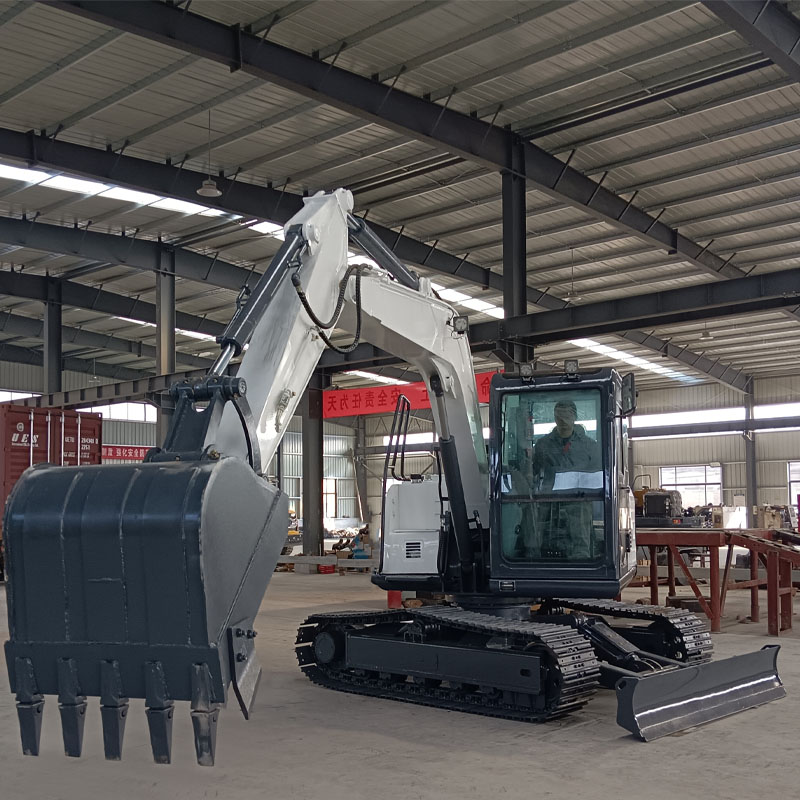

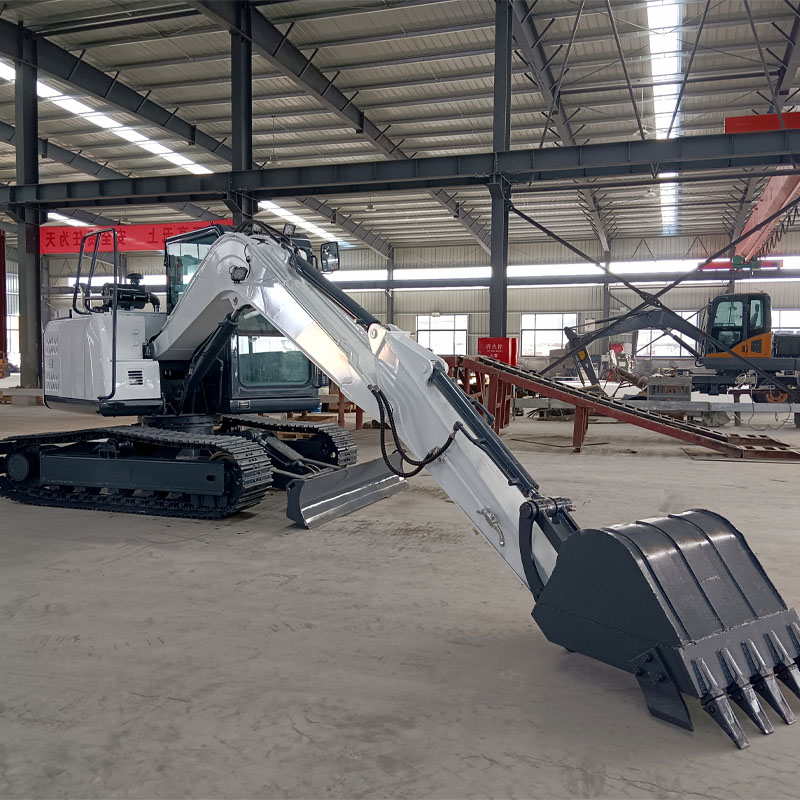

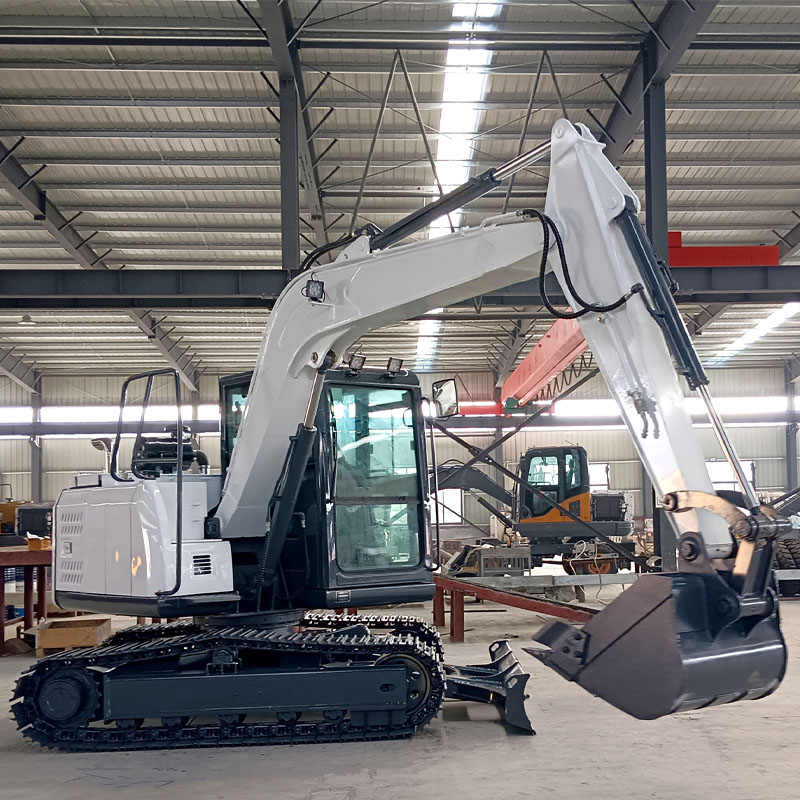

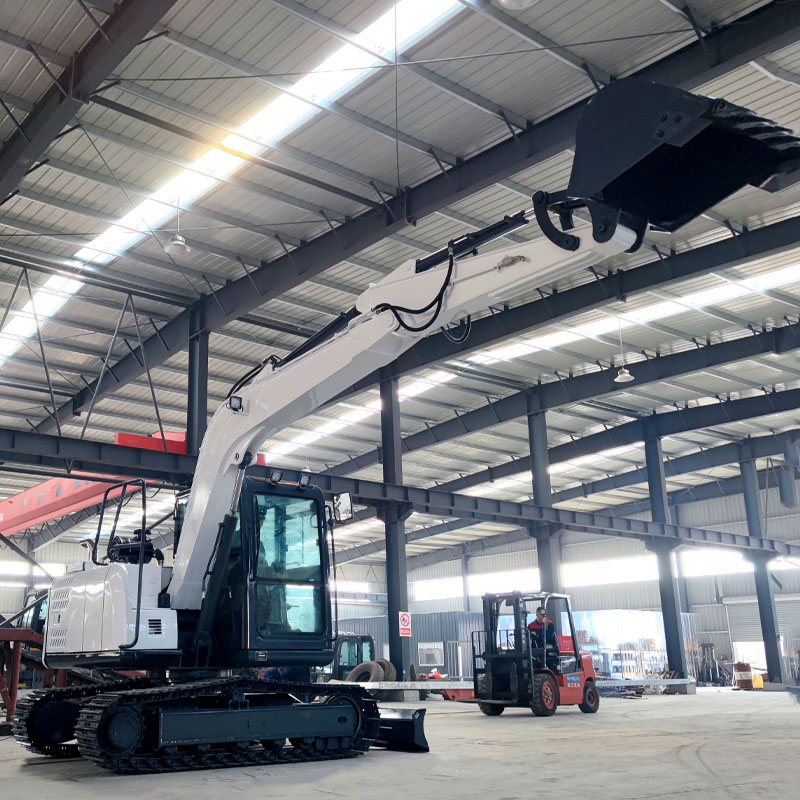

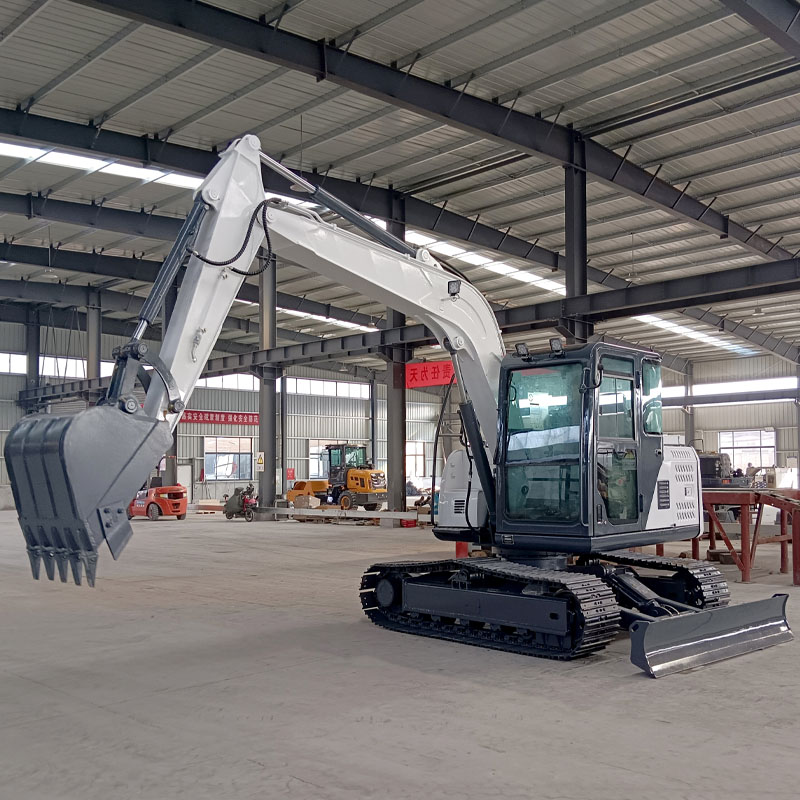

SZ90 Crawler Excavator Product Description
1) Robot welding to ensure the processing accuracy and quality reliability of the structural parts.
2) The combination of Yanmar engine and load sensitive main valve, more energy -saving and efficient.
3) Imported hydraulic hydraulic system. Fast speed, in line with the shortcoming cycle of action.
4) Adopt a stable box -type welding structure, strengthen the large arm, and greatly improve the service life.
5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.
6) Customized production can be provided to meet the needs of special construction and bidding.
SZ90 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong. To ensure the heavy-duty power and power reserve of all of the machinery, the machine utilizes a high-power, low-fuel engine. The high-efficiency hydraulic system and axle box are precisely matched to ensure the work.
This entire machine's hydraulic system has been equipped with well-known hydraulic parts and boasts characteristics regarding "great dependability, authentic products, safety and preservation of the surroundings, comfort and convenience," among others. Moreover, it may offer a selection of customized configuration and attachment choices that can be tailored to meet the needs of different parts of the globe and customers.

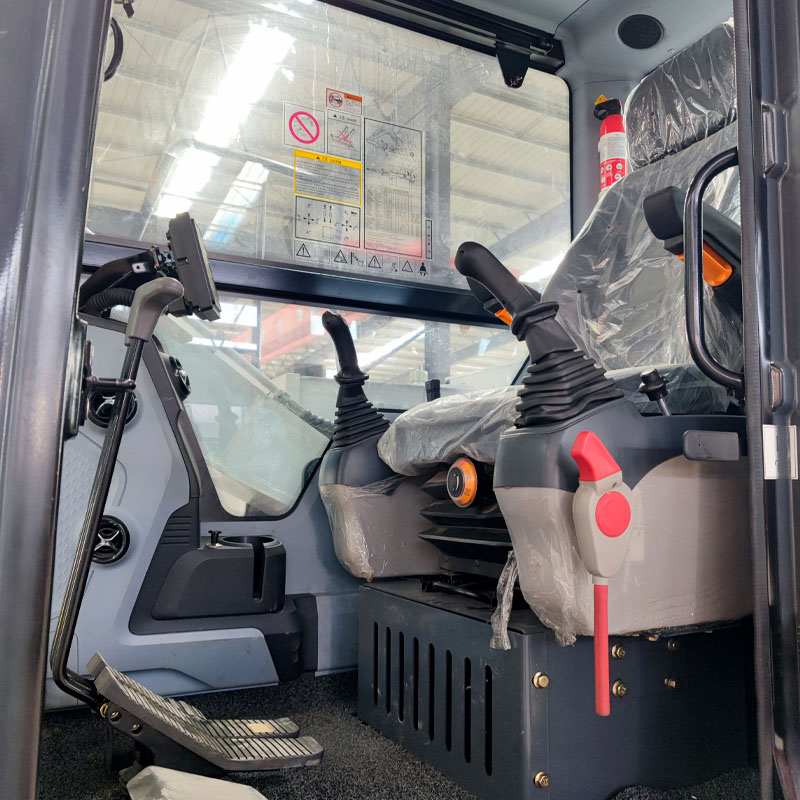

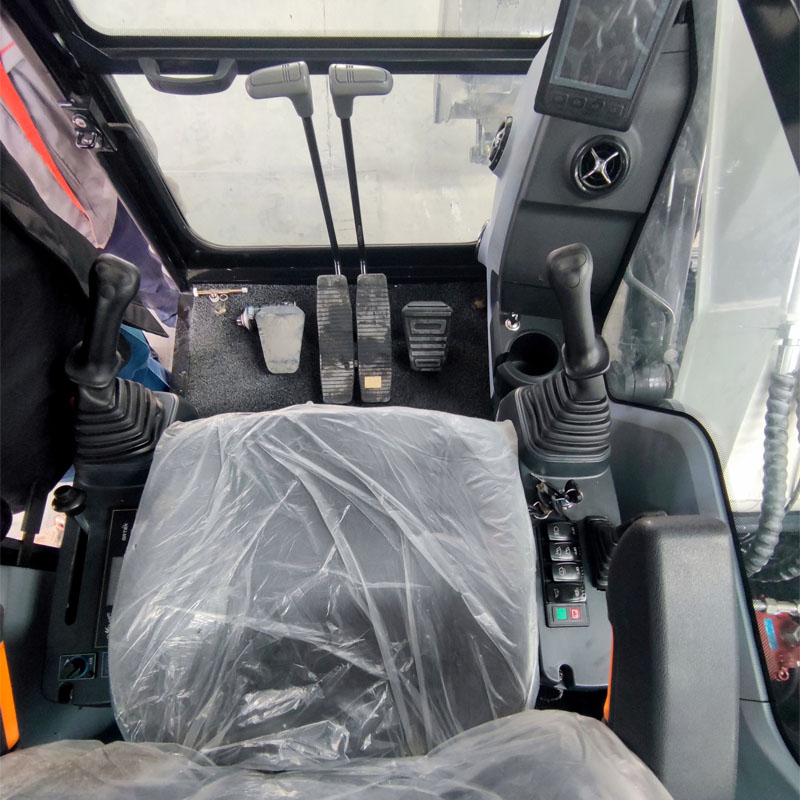

There are actually various attachments available. Comfortable and vast cab with outstanding vision in every point of view. Ergonomic seat upgrade for increased operator comfort.
Parameter | |||
Brand: | shanzhong | Model: | SZ90 |
Engine Model: | 4TNV98T/4BTA3.9-C100 | Engine Power: | 62.5/74kw/2200rpm |
Weight: | 8060kg | Bucket Capacity: | 0.36m³ |
Size | |||
Shipping Length: | 6300mm | Boom Length: | 3710mm |
Shipping Height: | 2700mm | Arm Length: | 1800mm |
Overall Width: | 2380mm | Track Length: | 2980mm |
Turntable Width: | 2200mm | Gauge: | 2140mm |
Track Width: | 450mm | Landing Gear Height: | 2560mm |
Radius, Swing Center to Rear End: | 1980mm | Min width of Gyration: | 2200mm |
Counterweight ground clearance: | 920mm | Min ground clearance: | 380mm |
Hydraulic Tank Volume: | 75L | Fuel Tank Volume: | 125L |
WORKING RANGE | |||
Max. Digging Radius: | 6370mm | Max. Digging Height: | 7350mm |
Max. Digging Depth: | 4150mm | Max. Dumping Height: | 5250mm |
Hydraulic system Work Pressure: | 32.34/34.3MPa | Hydraulic system Flow: | 2*80+26L/min |
Bucket digging force: | 55kn | Arm digging force: | 30kn |
Rotation Speed: | 0-13r/min | Travel Speed: | 4.5-2.3km/h |
