9 Ton Series Crawler Excavator

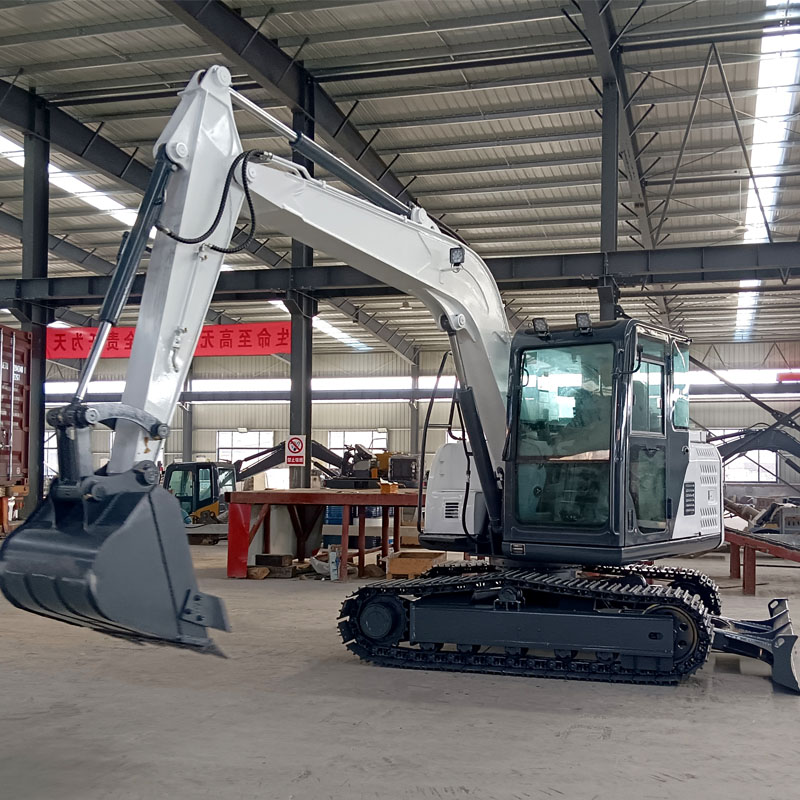

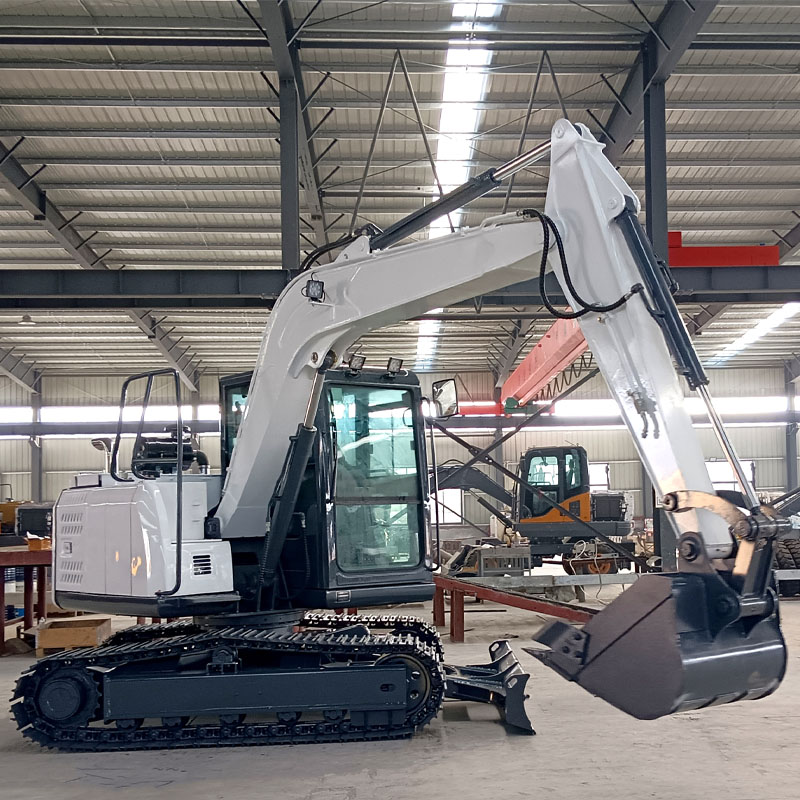

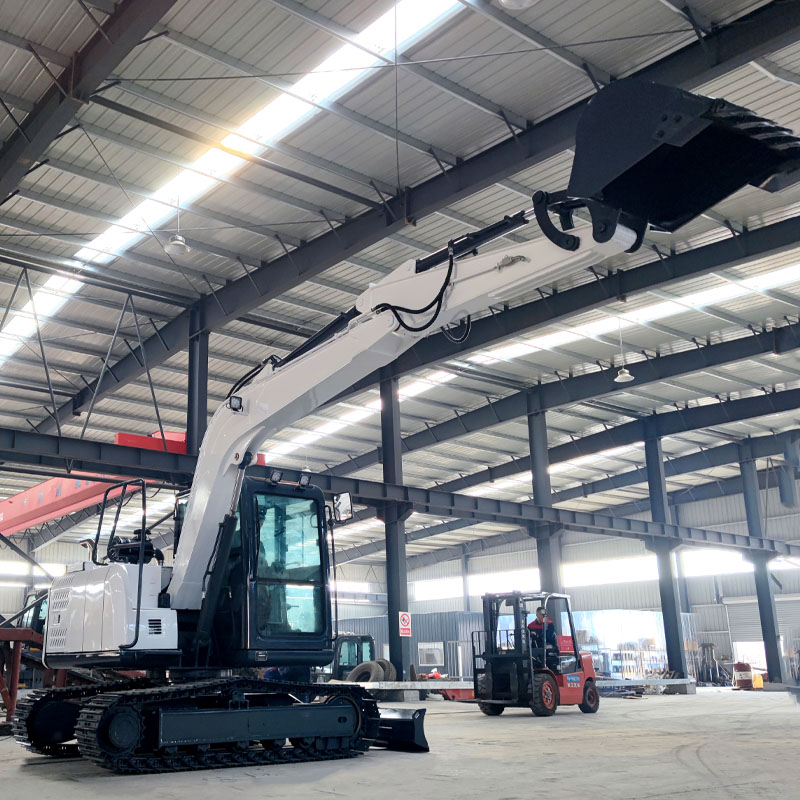

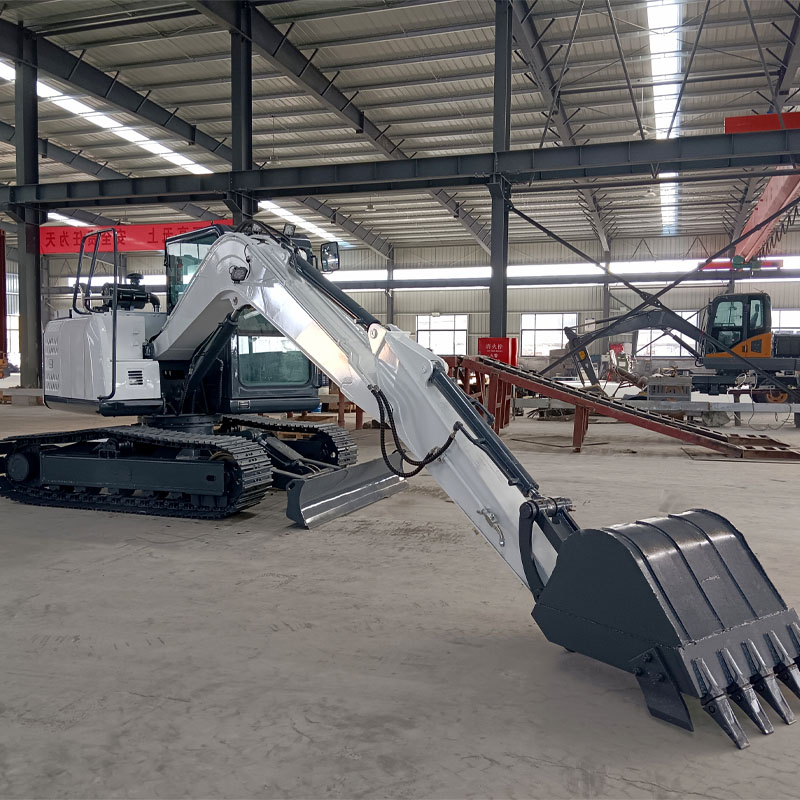

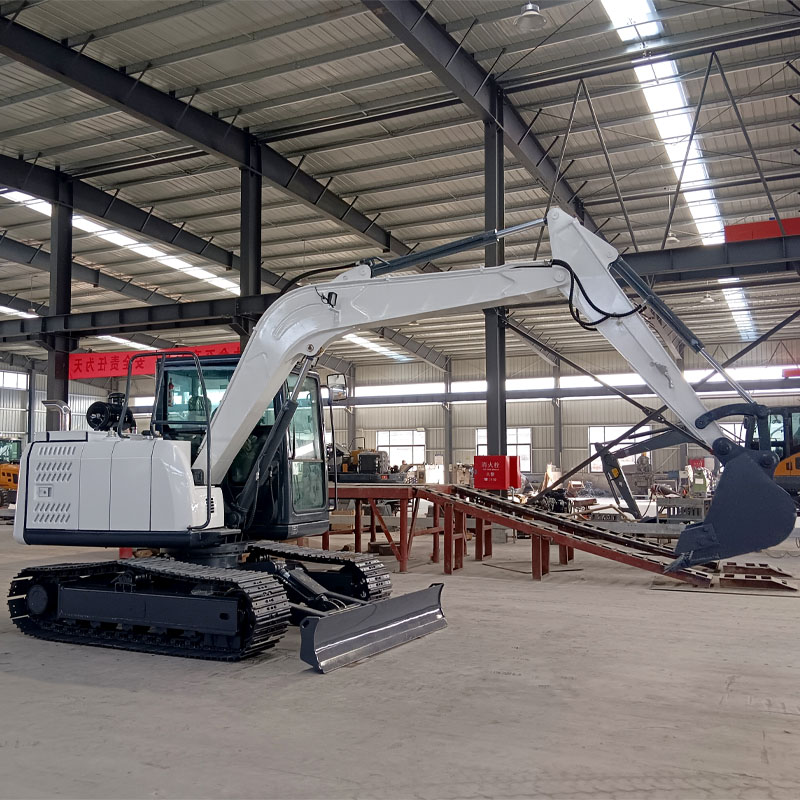

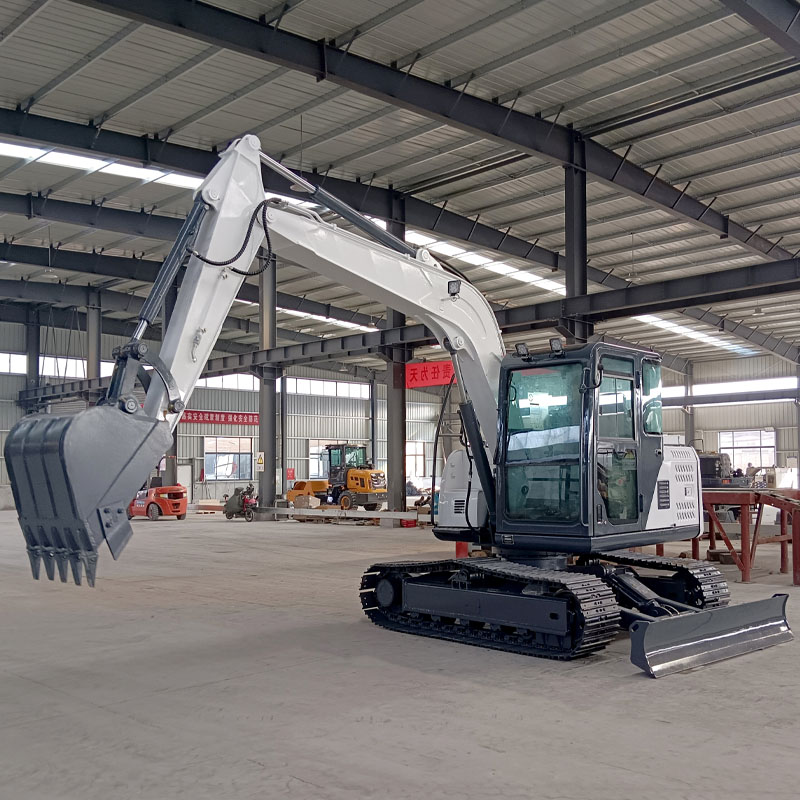

SZ90 Crawler Excavator Product Description
1) Robot welding to ensure the processing accuracy and quality reliability of the structural parts.
2) The combination of Yanmar engine and load sensitive main valve, more energy -saving and efficient.
3) Imported hydraulic hydraulic system. Fast speed, in line with the shortcoming cycle of action.
4) Adopt a stable box -type welding structure, strengthen the large arm, and greatly improve the service life.
5) Powerful vehicle operating performance, excellent operating stability, and ensure fast work efficiency.
6) Customized production can be provided to meet the needs of special construction and bidding.
SZ90 Crawler excavator is a new generation of fully hydraulic Crawler excavator independently developed by Shanzhong. To ensure the strong power and power reserve of the whole equipment, it makes use of a high-power, low-fuel engine. That high-efficiency hydraulic system and axle box have been precisely matched to ensure the work.
The entire machine's hydraulic system has been equipped with well-known hydraulic parts and boasts attributes such "amazing reliability, genuine merchandise, safety and safeguarding the environment, comfort and convenience," among others. Simultaneously, it could provide an array of unique configuration and attachment decision-making that can be adapted to suit the needs of different geographic areas and customers.

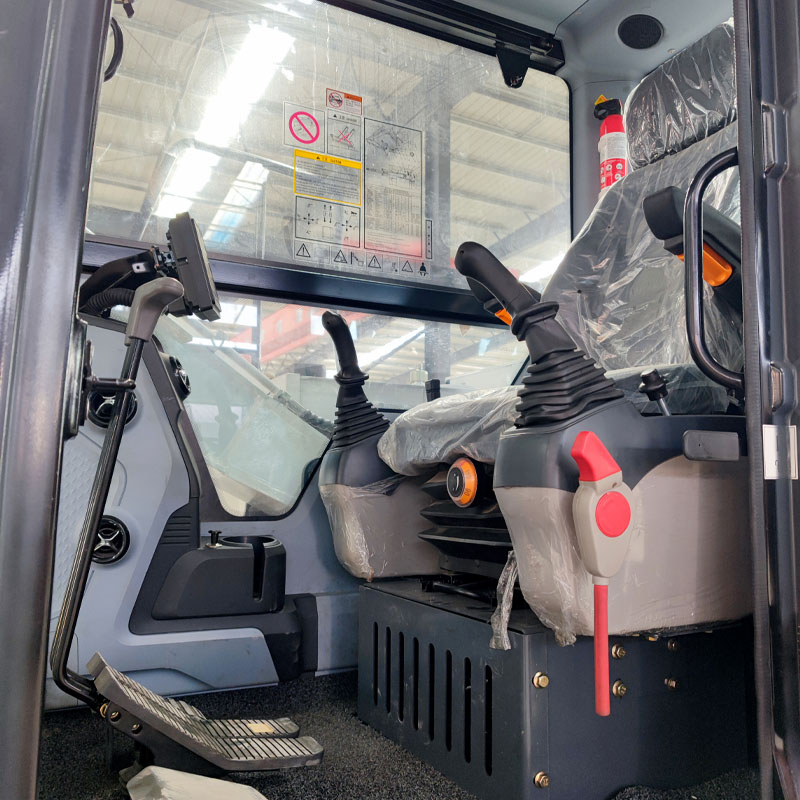

There's different attachments available. Comfortable and spacious cab with excellent vision in every possible direction. Ergonomic seat improvement for enhanced operator comfort.
Parameter | |||
Brand： | shanzhong(山重) | Model： | SZ90 |
Engine Model： | 4TNV98T/4BTA3.9-C100 | Engine Power： | 62.5/74kw/2200rpm |
Weight： | 8060kg | Bucket Capacity： | 0.36m³ |
Size | |||
Shipping Length： | 6300mm | Boom Length： | 3710mm |
Shipping Height： | 2700mm | Arm Length： | 1800mm |
Overall Width： | 2380mm | Track Length： | 2980mm |
Turntable Width： | 2200mm | Gauge： | 2140mm |
Track Width： | 450mm | Landing Gear Height： | 2560mm |
Radius, Swing Center to Rear End： | 1980mm | Min width of Gyration： | 2200mm |
Counterweight ground clearance： | 920mm | Min ground clearance： | 380mm |
Hydraulic Tank Volume： | 75L | Fuel Tank Volume： | 125L |
WORKING RANGE | |||
Max. Digging Radius： | 6370mm | Max. Digging Height： | 7350mm |
Max. Digging Depth： | 4150mm | Max. Dumping Height： | 5250mm |
Hydraulic system Work Pressure： | 32.34/34.3MPa | Hydraulic system Flow： | 2*80+26L/min |
Bucket digging force： | 55kn | Arm digging force： | 30kn |
Rotation Speed： | 0-13r/min | Travel Speed： | 4.5-2.3km/h |
Gradeability： | ≥70% | ||
