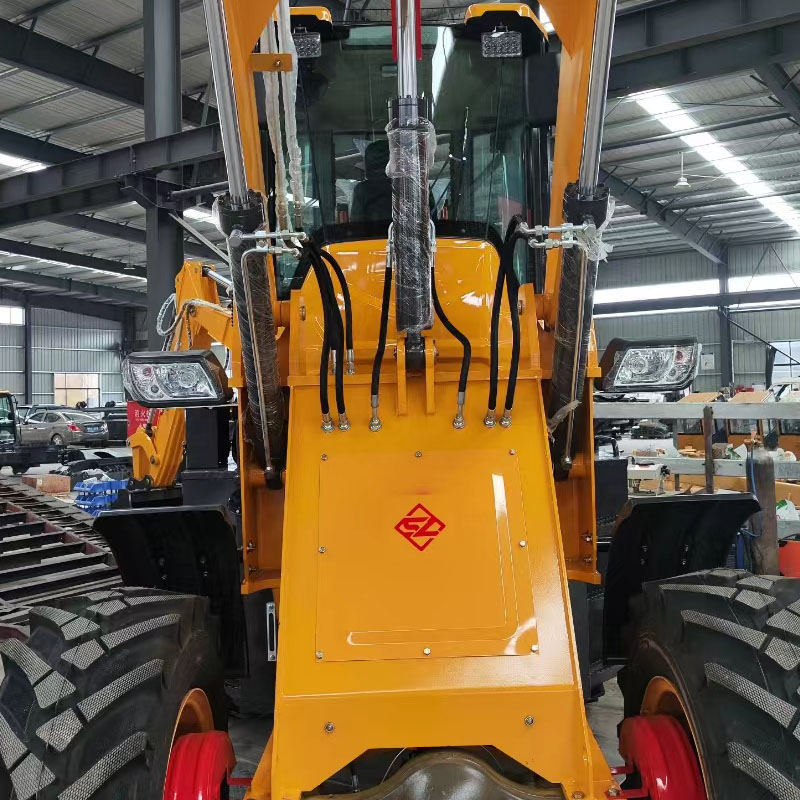

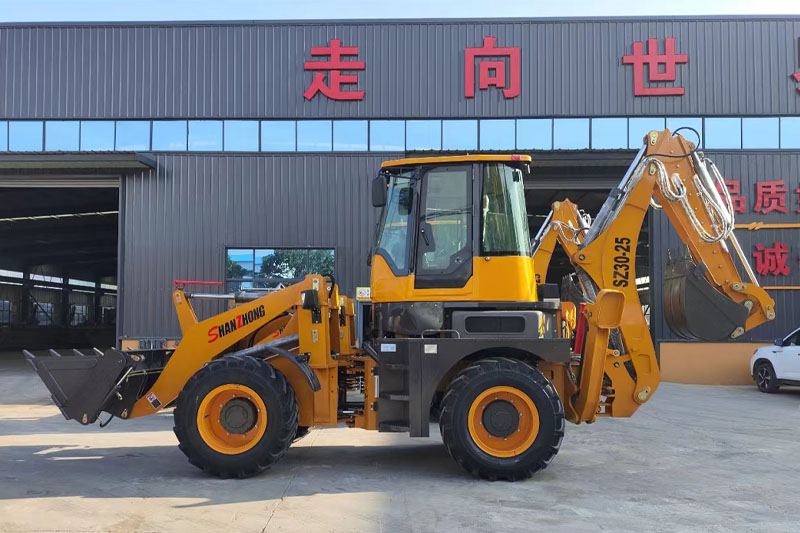

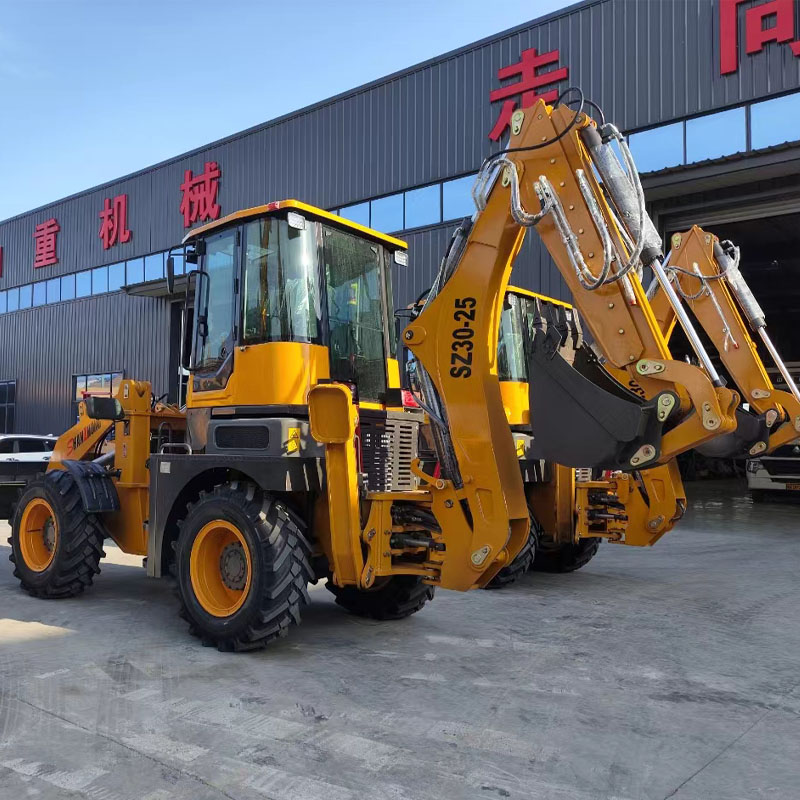

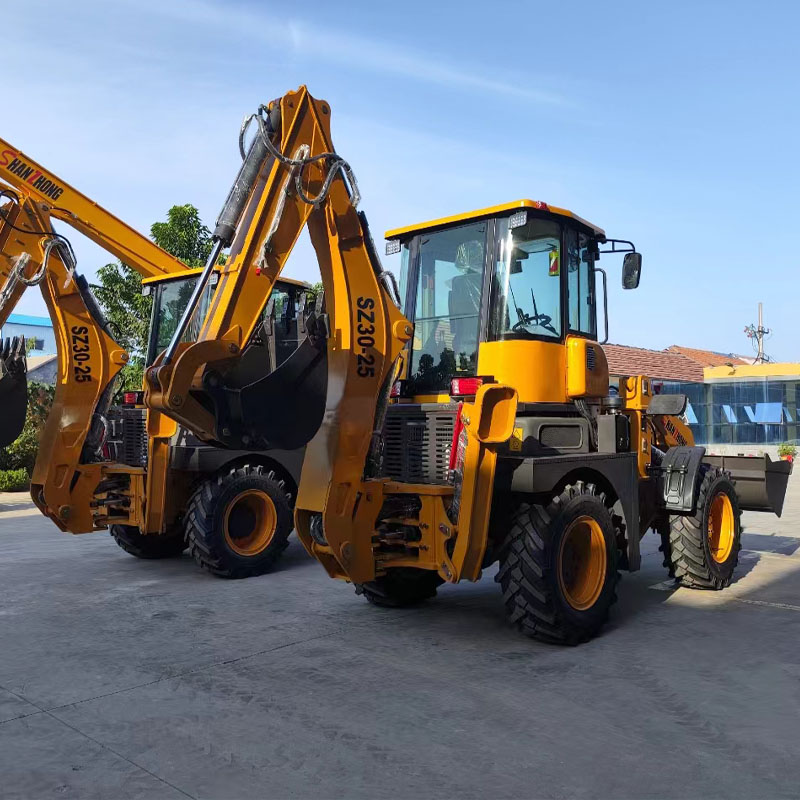

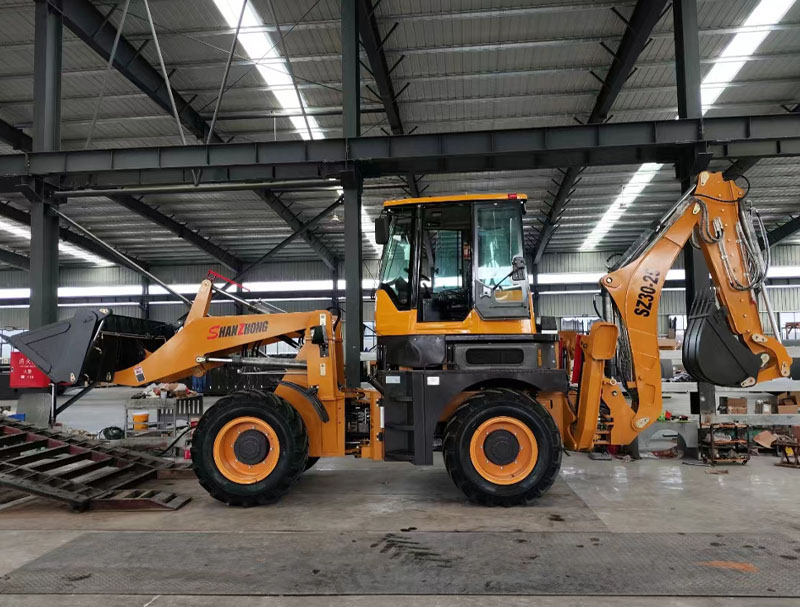

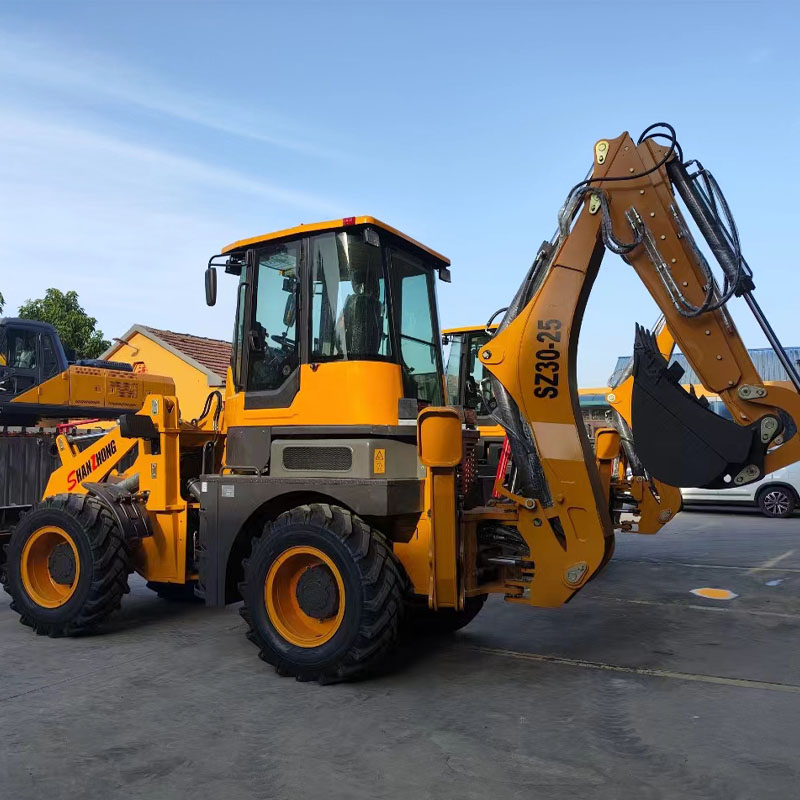

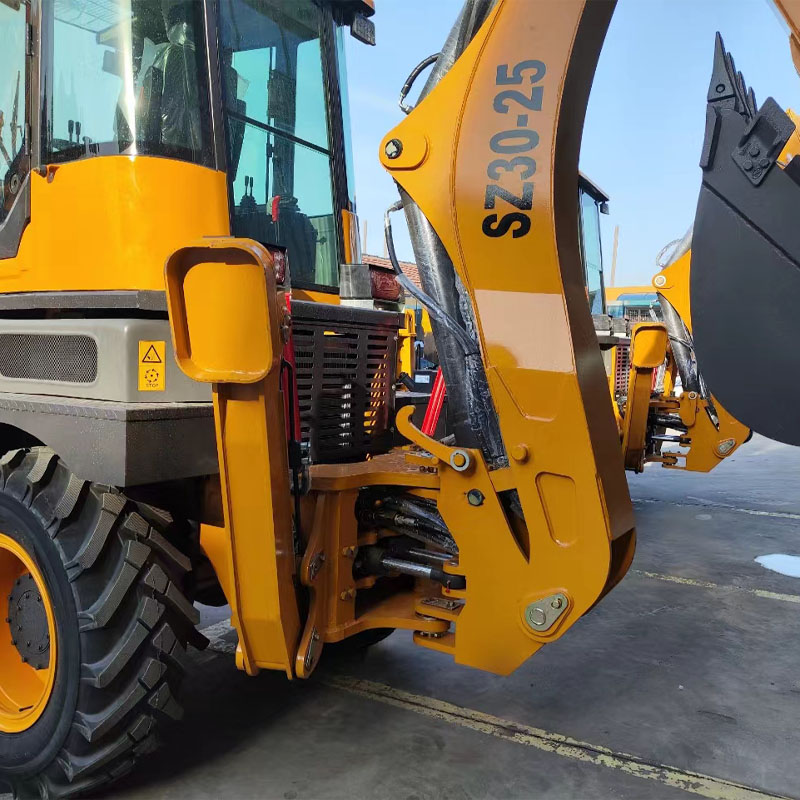

Backhoe Loader SZ30-25
SZ30-25 Backhoe Loader
1）Multi -machine, powerful function, simple control. .
2） Strong power, super off -road performance, adapt to bad pavement conditions.
3）Streamlined appearance, beautiful and generous. Holding design, small rotation radius.
4）Panorama cab, liquid crystal display instrument, fire -fighting equipment is all available.
5）Suspension -like top, shock absorption seats, humanized design, more comfortable handling
6）Free selection of H and A outrigger Customized production can be provided to meet the needs of special construction and bidding.
The SZ30-25 backhoe loaders belonging to the Shanzhong brand are multifaceted construction equipment that may be used for drilling, lifting, loading, and transporting. Being a combination of a loader and excavator, this equipment is capable of undertaking an extensive number of missions. It is easy to use, versatile and more appropriate for tiny settings. It advertises a 30% gain in employee efficiency. It has all of the features of a small loader and excavator.
This machine's high-efficiency hydraulic transmission system is simple to operate and requires less maintenance, improve machine performance, and lowers operating costs.
Different construction activities can be executed applying different attachment devices, depending on a specific working environment.
Basic parameter | |||
Brand： | shanzhong | Model： | WZ30-25 |
Engine Model： | 云内YN38GBZ | Engine Power： | 76/2400(KW/rpm) |
Weight： | 6800kg | Bucket Capacity： | 1.2m³ |
Loading Lifting ability： | 2500kg | Backhoe Bucket Capacity： | 0.3m³ |
Size | |||
Shipping Length： | 7800mm | Axle： | Rotor deceleration |
Shipping Height： | 3100mm | Hydraulic pump type： | Fixed shaft power shifting |
Width： | 2100mm | Gear： | 4Forward 4 Rear |
轮胎型号Tyres： | 16/70-20 | Steering Angle： | 36° |
Wheel base： | 2250mm | Driving brake： | Four -wheeled disc brake |
wheel tread： | 1640mm | Transmission Model： | YJ-280 |
Fighting back angle： | 180° | Min ground clearance： | 300mm |
Working Range | |||
Bucket Dumping Height： | 3500mm | Backhoe Dumping Height： | 3500mm |
Bucket Dumping Distance： | 1062mm | Max. Digging Depth： | 4000mm |
Bucket Width: | 2100mm | Max digging distance： | 5300mm |
Hydraulic system flow： | 126+20L/min | Arm digging force： | 31kn |
Bucket digging force： | 46kn | Max.Speed： | 35km/h |
Min. turning radius： | 5108mm | Gradeability： | 30° |
